Summary of Contents for d&b audiotechnik E15X-SUB

  • Page 1 E15X-SUB Manual 2.1 en...
  • Page 2 General information E15X-SUB Manual Version: 2.1 en, 09/2017, D2032.EN .02 Copyright © 2017 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new owner.
  • Page 3: Table Of Contents

    2.2. Connections................6 2.3. Operation................7 2.3.1. Controller settings..............7 2.3.2. Operation with E-PAC............7 2.4. Technical specifications............8 Manufacturer's declarations........9 3.1. EU conformity of loudspeakers (CE symbol)......9 3.1.1. WEEE Declaration (Disposal)..........9 d&b E15X-SUB Manual 2.1 en...
  • Page 4: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b E15X-SUB Manual 2.1 en...

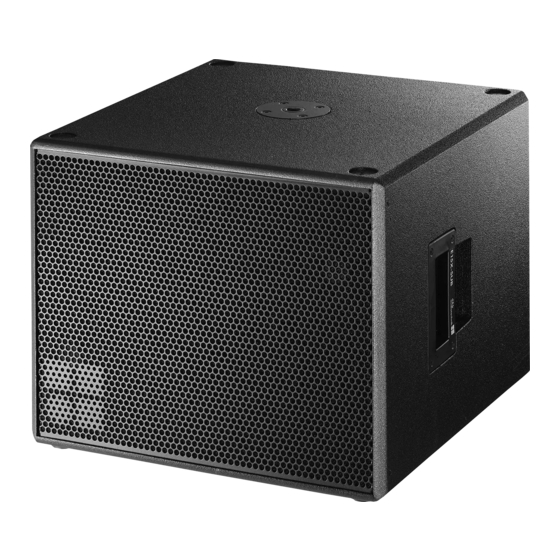

  • Page 5: E15X-Sub Loudspeaker

    It can be operated actively, driven by its own amplifier channel, without the need for any changes to the cabinet. In active mode, the E15X-SUB can be used to supplement any of the E-Series cabinets. Its frequency response extends from 37 Hz to 140/100 Hz.
  • Page 6: Connections

    SenseDrive requires an additional sense wire. SenseDrive is therefore only available with EP5 connectors and 5-wire cabling for applicable loudspeakers. Note: When the D12 is operated in "Mix TOP/SUB mode", the SenseDrive function is only available at the output B connector. d&b E15X-SUB Manual 2.1 en...
  • Page 7: Operation

    The 100 Hz mode can also be used to compensate for the effect of close coupling between the E15X-SUB and E-Series operated in CUT mode, for example in a drum fill setup. 2.3.2. Operation with E-PAC Selecting E15-SUB mode enables the E-PAC to drive one E15X-SUB loudspeaker.
  • Page 8: Technical Specifications

    Passive crossover network Connections 2 x NLT4 F/M E15X-SUB frequency response, standard and 100 Hz modes optional: 2 x EP5 SC option: 2 x NL4 M WR option: Fixed cable 5.5 m / 18 ft (H07-RN-F 2 x 2.5 mm...
  • Page 9: Manufacturer's Declarations

    Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b E15X-SUB Manual 2.1 en...
  • Page 10 www.dbaudio.com...
