- Page 1 Bi6-SUB Manual 1.1 en...
- Page 2 General information Bi6-SUB Manual Version: 1.1 en, 08/2014, D2716.EN .01 Copyright © 2014 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new owner.
-
Page 3: Table Of Contents
Bi6-SUB loudspeaker............5 2.1. Product description..............5 2.2. Connections................5 2.3. Operation................7 2.3.1. Controller settings..............7 2.4. Technical specifications............8 Manufacturer's declarations........9 3.1. EU conformity of loudspeakers (CE symbol)......9 3.1.1. WEEE Declaration (Disposal)..........9 d&b Bi6-SUB Manual 1.1 en... -
Page 4: Safety Precautions
Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b Bi6-SUB Manual 1.1 en... -
Page 5: Bi6-Sub Loudspeaker

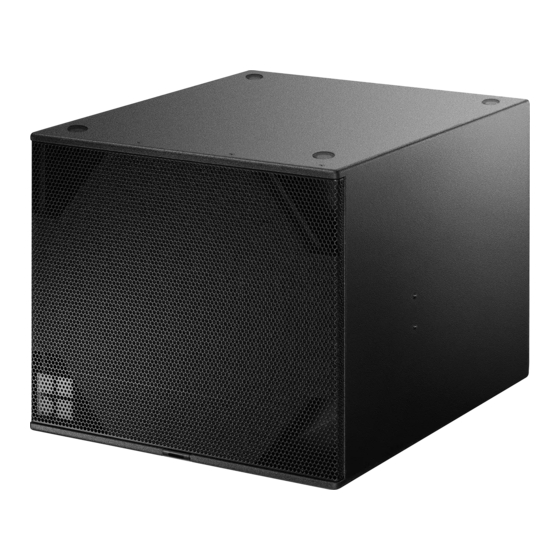

2. Bi6-SUB loudspeaker 2.1. Product description The Bi6-SUB is an actively driven, compact, high performance subwoofer. The cabinet houses a long excursion 18" neodymium driver in a bass-reflex design. The frequency response extends from 37 Hz to 140 Hz. The enclosure is constructed from marine plywood with an impact resistant black paint finish. - Page 6 Fixed cable connection The Bi6-SUB loudspeaker is supplied with a cover plate [1] and a rubber grommet feed through [2]. For indoor operation, these items can be used to hide the connector panel, if required. For unprotected outdoor operation, the connector panel must be covered, i.e.
-
Page 7: Operation
If the 100 Hz circuit is selected, the upper operating frequency of the system is reduced from 140 Hz to 110 Hz. It can be used when actively driven Bi6-SUB subwoofers are used to supplement TOP cabinets operated in full range mode, for example in a distributed sound system. -
Page 8: Technical Specifications
Connections 2 x NL4 M 1 x screw terminal (ST - up to 4 mm /AWG 11) Bi6-SUB frequency response, standard and 100 Hz mode Optional fixed cable (PG): H07-RN-F, 2 x 2.5 mm (AWG 13), 5.5 m (18 ft) Pin assignment NL4 M: 1+/1–... -
Page 9: Manufacturer's Declarations
Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b Bi6-SUB Manual 1.1 en... - Page 10 www.dbaudio.com...
