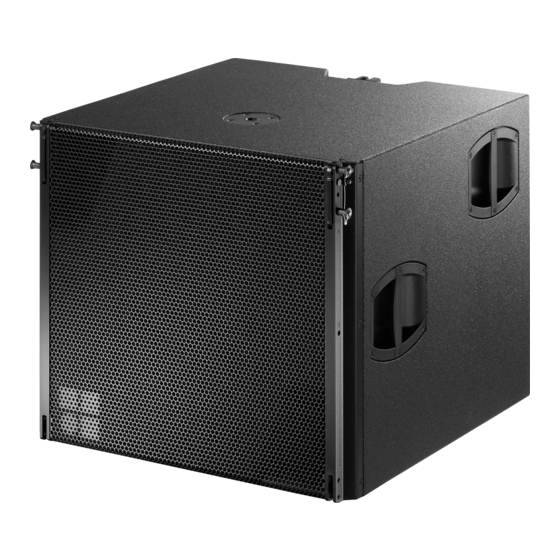

d&b audiotechnik V-SUB Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
V
V-SUB
Manual 1.5 en

Advertisement

Table of Contents
loading

Related Manuals for d&b audiotechnik V-SUB

Summary of Contents for d&b audiotechnik V-SUB

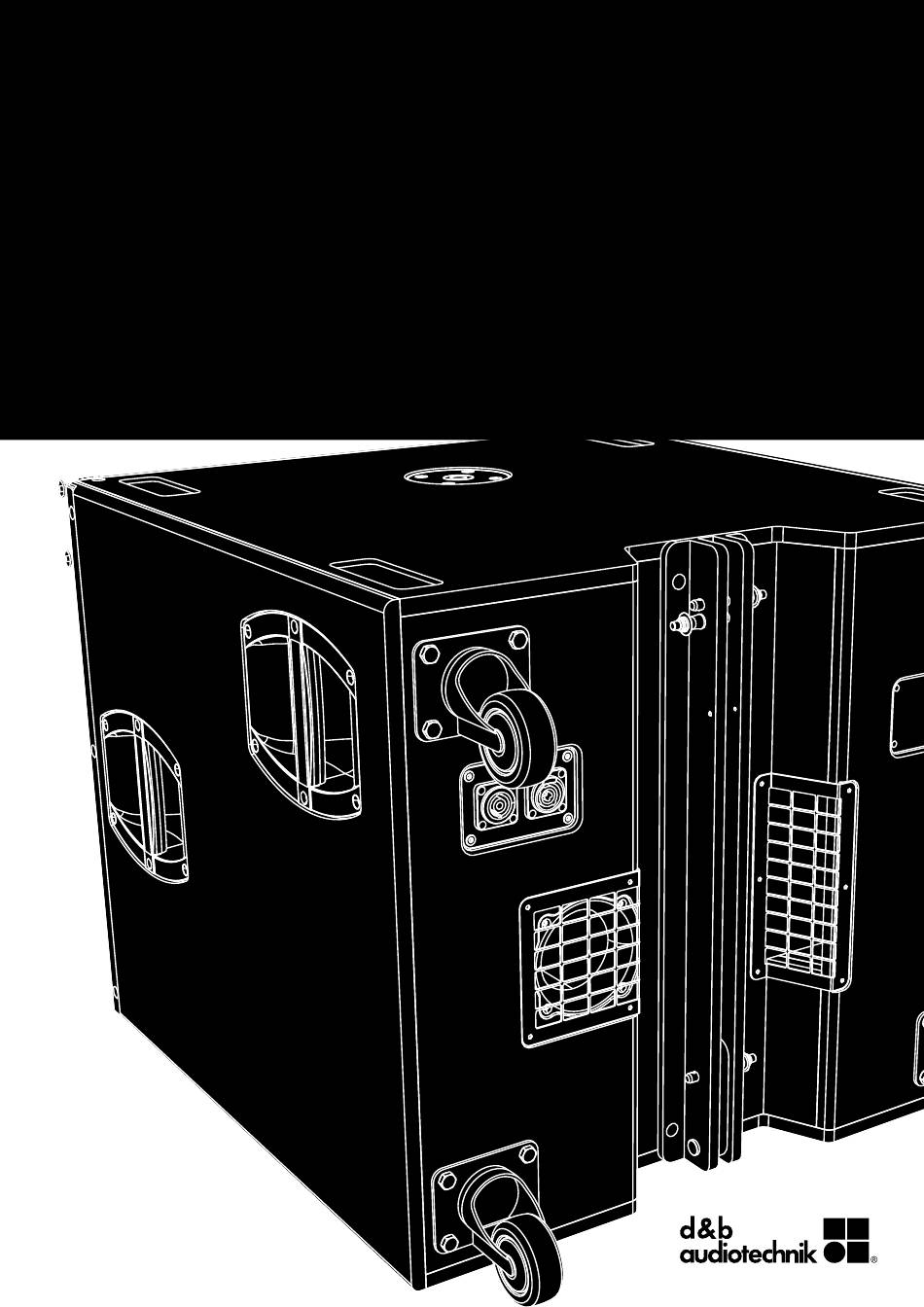

  • Page 1 V-SUB Manual 1.5 en...
  • Page 2 General information V-SUB Manual Version: 1.5 en, 09/2022, D2701.EN .01 Copyright © 2022 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference.

  • Page 3: Table Of Contents

    Safety precautions.............. 4 V-SUB loudspeaker............. 5 2.1 Product description..............5 2.2 Connections................6 2.3 Operation..................6 2.3.1 Controller settings..............7 2.4 Technical specifications.............. 7 Manufacturer's declarations........... 9 3.1 Conformity of loudspeakers............9 3.2 WEEE Declaration (Disposal)............ 9 d&b V-SUB Manual 1.5 en...

  • Page 4: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient. d&b V-SUB Manual 1.5 en...

  • Page 5: Sub Loudspeaker

    V-SUB loudspeaker 2.1 Product description The V-SUB is a compact high performance cardioid subwoofer for use with d&b V-Series cabinets. The V-SUB houses two long excursion neodymium drivers in an integrated cardioid setup: a 18“ driver in a bass-reflex design facing to the front and a 12”...

  • Page 6: Connections

    2.2 Connections The cabinet is fitted NLT4 F/M connectors. All four pins of both connectors are wired in parallel. The V-SUB uses the pin assignments 2+/2–. Pins 1+/1– are designated to the V8 or V12 loudspeakers. Using one as the input, the second connector allows for direct connection to a second cabinet.

  • Page 7: Controller Settings

    NLT4 F/M optional 2 x NL4 M or 2 x EP5 Pin assignment NLT4 F/M and NL4 M: 2+ / 2– V-SUB frequency response, standard and 100 Hz modes EP5: 3: + / 4: – Weight 64 kg (141 lb)
  • Page 8 V-SUB cabinet dimensions in mm [inch] d&b V-SUB Manual 1.5 en...

  • Page 9: Manufacturer's Declarations

    Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. WEEE-Reg.-Nr. DE: 13421928 d&b V-SUB Manual 1.5 en...
  • Page 10 www.dbaudio.com...
