  • Page 1 T-SUB Manual 1.1 en...

  • Page 2: Table Of Contents

    EU conformity of loudspeakers (CE symbol)..........7 WEEE Declaration (Disposal)................7 General Information T-SUB Manual Version 1.1 en, 03/2016, D2601.EN .01 Copyright © by d&b audiotechnik GmbH 2016; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference.

  • Page 3: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. T-SUB Manual (1.1 en) Safety precautions - 1...

  • Page 4: T-Sub

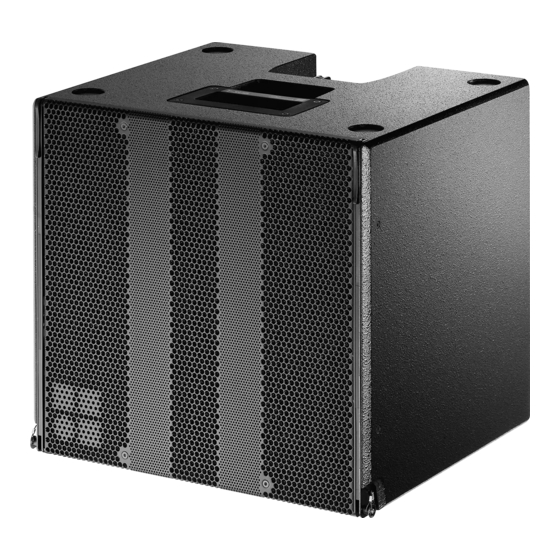

    T-SUB The T-SUB is the subwoofer for the T-Series. It can be used to supplement T10 cabinets in various combinations, either flown or ground stacked. The T-SUB cabinet is an actively driven bass-reflex design housing a long excursion 15" driver, its frequency response extending from 47 Hz to 140 Hz.

  • Page 5: Connections

    Connections The T-SUB cabinet is fitted with a pair of EP5 connectors. All five pins of n.c. both connectors are wired in parallel. The T-SUB uses the pin assignments 3/4 and 5. Pin 5 is used for SenseDrive (only available when using a D12 amplifier and 5-wire cabling).

  • Page 6: Technical Specifications

    Connections........................2 x EP5 Fig. 3: T-SUB frequency response, standard and100 Hz settings ........................Optional: 2 x NL4 Pin assignments......................EP5: 3/4 ..........................NL4: 2+/2– Weight........................17 kg (37 lb) Fig. 4: T-SUB cabinet dimensions in mm [inch] T-SUB Manual (1.1 en) Page 6 of 8...

  • Page 7: Manufacturer's Declarations

    Manufacturer's Declarations EU conformity of loudspeakers (CE symbol) This declaration applies to T-SUB loudspeaker, Z0560 manufactured by d&b audiotechnik GmbH. All production versions of these types are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
