Summary of Contents for d&b audiotechnik E15X-SUB
- Page 1 E15X-SUB Manual (1.2 EN)
- Page 2 Please refer to the information in the operating manual. WARNING! Dangerous voltage! Contents Safety precautions...............3 Information regarding use of loudspeakers..........3 E15X-SUB ................4 Connections......................4 Operation with D6 or D12................5 Operation with E-PAC..................5 Technical specifications..................6 Manufacturer's declarations..........7 EU conformity of loudspeakers (CE symbol)..........7 WEEE Declaration (Disposal)................7...
-
Page 3: Safety Precautions

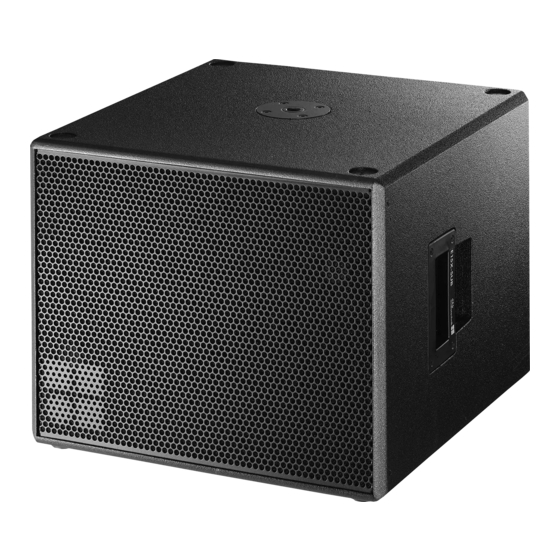

Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. E15X-SUB Manual, (1.2 EN) Safety precautions - 1... - Page 4 As an alternative it can be operated actively driven by its own amplifier channel without the need for any changes to the cabinet. In active mode the E15X-SUB can be used to supplement any of the E-Series cabinets, Fig. 1: E15X-SUB loudspeaker its frequency response extending from 37 Hz to 100/140 Hz.
- Page 5 Selecting the E12-X (E12-DX) setup enables a combination of one E12 IMPORTANT! (E12-D) and one E15X-SUB to be driven by the respective D12 or D6 channel. In applications with low continuous levels and low ambient temperatures up to three cabinets can be connected to a D12 channel.
-
Page 6: Technical Specifications
....WR option: Fixed cable 5 m (16.4 ft) (H-07-RN-F 2 x 2.5 mm2/AWG 13) Pin assignments..............EP5: 3/4, SenseDrive pin 5 ..........................NL4: 2+/2– .....................Fixed cable: Brown + / Blue – Weight.......................24 kg (53 lb) Fig. 4: E15X-SUB cabinet dimensions in mm [inch] E15X-SUB Manual, (1.2 EN) Page 6 of 8... - Page 7 Manufacturer's declarations EU conformity of loudspeakers (CE symbol) This declaration applies to: d&b E15X-SUB loudspeaker, Z0615 manufactured by d&b audiotechnik GmbH. All production versions of this type are included, provided they correspond to the original technical version and have not been subject to any later design or electromechanical modifications.
- Page 8 d&b audiotechnik GmbH, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone +49-7191-9669-0, Fax +49-7191-95 00 00...
