  • Page 1 Vi-SUB Manual 1.4 en...
  • Page 2 General information Vi-SUB Manual Version: 1.4 en, 10/2018, D2707.EN .01 Copyright © 2018 by d&b audiotechnik GmbH & Co. KG; all rights reserved. Keep this document with the product or in a safe place so that it is available for future reference.

  • Page 3: Table Of Contents

    Vi-SUB loudspeaker............5 2.1 Product description..............5 2.2 Connections................5 2.3 Operation..................7 2.3.1 Controller settings..............7 2.4 Technical specifications.............. 8 Manufacturer's Declarations........... 9 3.1 EU conformity of loudspeakers (CE symbol)......9 3.2 WEEE Declaration (Disposal)............ 9 d&b Vi-SUB Manual 1.4 en...

  • Page 4: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b Vi-SUB Manual 1.4 en...

  • Page 5: Vi-Sub Loudspeaker

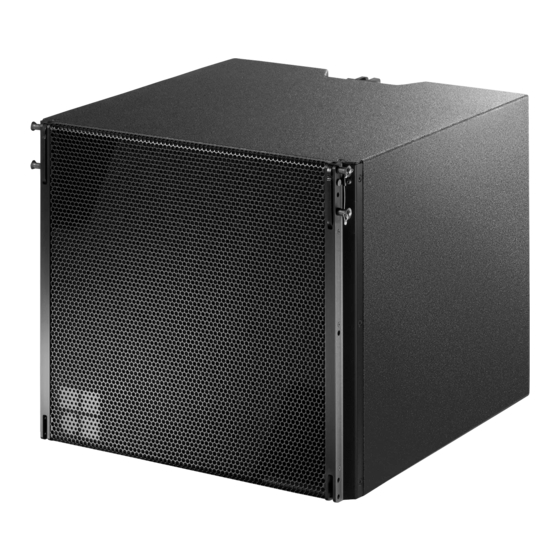

    Vi-SUB loudspeaker 2.1 Product description The Vi-SUB is a compact high performance cardioid subwoofer for use with d&b Vi-TOP cabinets. The Vi-SUB houses two long excursion neodymium drivers in an integrated cardioid setup: a 18“ driver in a bass-reflex design facing to the front and a 12”...
  • Page 6 Starting with the D80 amplifier platform, the LoadMatch function enables the amplifier to electrically compensate for the properties of the loudspeaker cable used without the need for an additional sense wire. For applicable loudspeakers, LoadMatch is therefore independent of the connector type used. d&b Vi-SUB Manual 1.4 en...

  • Page 7: Operation

    Vi cabinets operated in full range mode. The 100 Hz mode can also be used to compensate for the effect of close coupling between the Vi-SUB and Vi cabinets operated in CUT mode. With Ti cabinets the standard mode is recommended.

  • Page 8: Technical Specifications

    2 x NL4 M WR option: Faston type connector (2 x 6.3mm) Pin assignment NL4 M: 2+ / 2– Vi-SUB frequency response, standard and 100 Hz mode WR option: Brown: (+) / Blue: (–) Weight 62 kg (137 lb) Vi-SUB cabinet dimensions in mm [inch]...

  • Page 9: Manufacturer's Declarations

    Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. WEEE-Reg.-Nr. DE: 13421928 d&b Vi-SUB Manual 1.4 en...
