Renovator Multi-Tool Safety And Operating Manual page 32

USING THE SEMI-CIRCULAR GROUT REMOVER
Application: Broken Tile Replacement

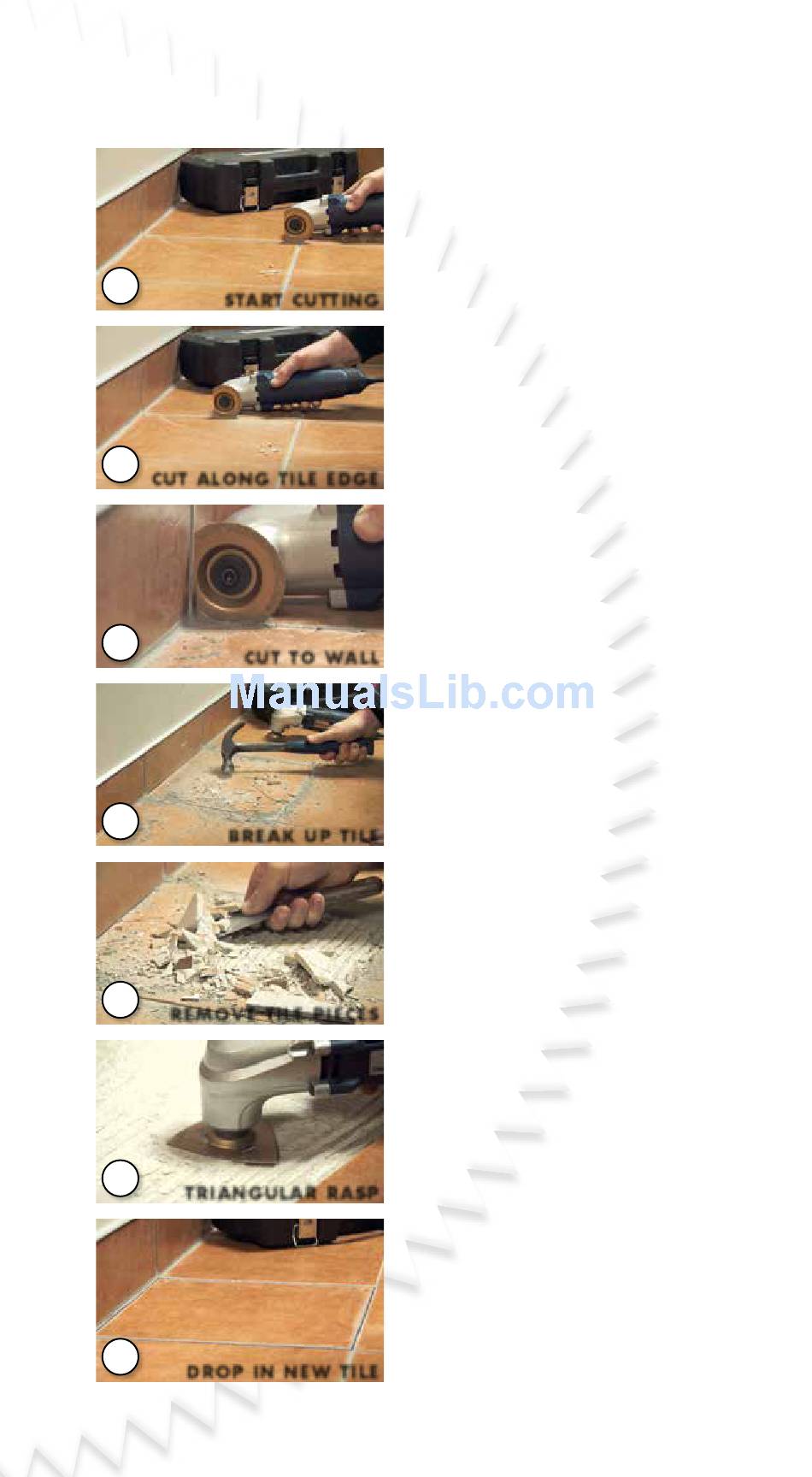

1
START CUTTING
2
CUT ALONG TILE EDGE
3
CUT TO WALL
4
BREAK UP TILE
5
REMOVE TILE PIECES
6
TRIANGULAR RASP
7
DROP IN NEW TILE
• Start by removing grout around
the broken tile. This will separate
the broken tile from the adjacent
tiles. (1-2)
• With the straight edge of the
semi-circular grout blade
set towards the front of the
Renovator, the blade can cut
right up to the wall tiles without
damaging them. (3)
• Once the grout has been
removed between the broken
and the adjacent tiles, use a
hammer to break up the broken
tile into smaller pieces. (4)
• Use a paint scraper or similar
tool to remove the small pieces
of broken tile. (5)
• Use the Renovator with the
Triangular Rasp attachment to
remove the remaining hardened
grout from beneath the broken
tile. (6)
• Now the area is clear to lay
new grout. Slot a new tile into
position. (7)
32
