Using The Sanding Attachments - Renovator Multi-Tool Safety And Operating Manual

Using the Sanding
Attachments

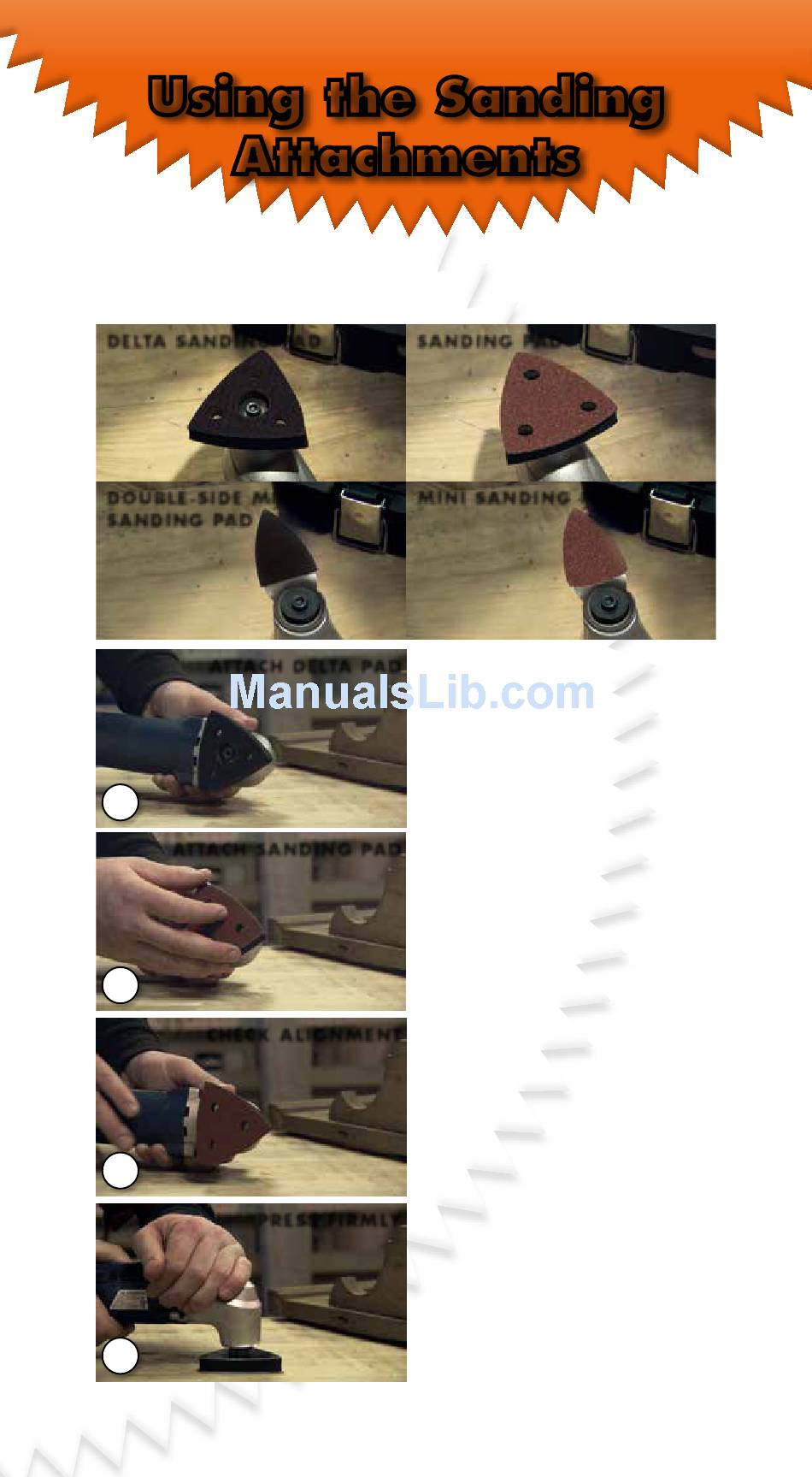

DELTA SANDING PAD & DOUBLE-SIDE MINI SANDING PAD
Typical Application:
corners, edges and places difficult to access.
DELTA SANDING PAD
DOUBLE-SIDE MINI
SANDING PAD
In Mega Kit only
ATTACH DELTA PAD
1
ATTACH SANDING PAD
2
CHECK ALIGNMENT
3
4
Sanding wood, metal, small areas, especially
PRESS FIRMLY
21
SANDING PAD
MINI SANDING PAD
In Mega Kit only
• Select high oscillation frequency.
• Distribute the use of the sanding
pads evenly to maximise the life
of the pads.
• Use light pressure and a smooth
movement.
• There is no increase in sanding
performance with heavy
pressure.
• Increased pressure wears down
the sanding pad faster.
• Holes in the pads improve the
suction and removal of dust
when used with the vacuum
attachment.
Attaching the Sanding Pads
Remove bolt and washer with the
Allen key provided, select required
attachment for the job, place the
attachment on top of the octagonal
face of the tool making sure that
both octagonal faces are flush and
firm with each other, place bolt and
washer back on the tool and secure
firmly. (1)
Place the sand paper onto the
Delta sanding pad and make sure it
is aligned properly. (2,3)
Press the pad down on a flat
surface to make a secure
connection. Briefly switch the
Renovator tool on. This provides
for good adhesion and prevents
premature wear. (4)
