Attachment Tools

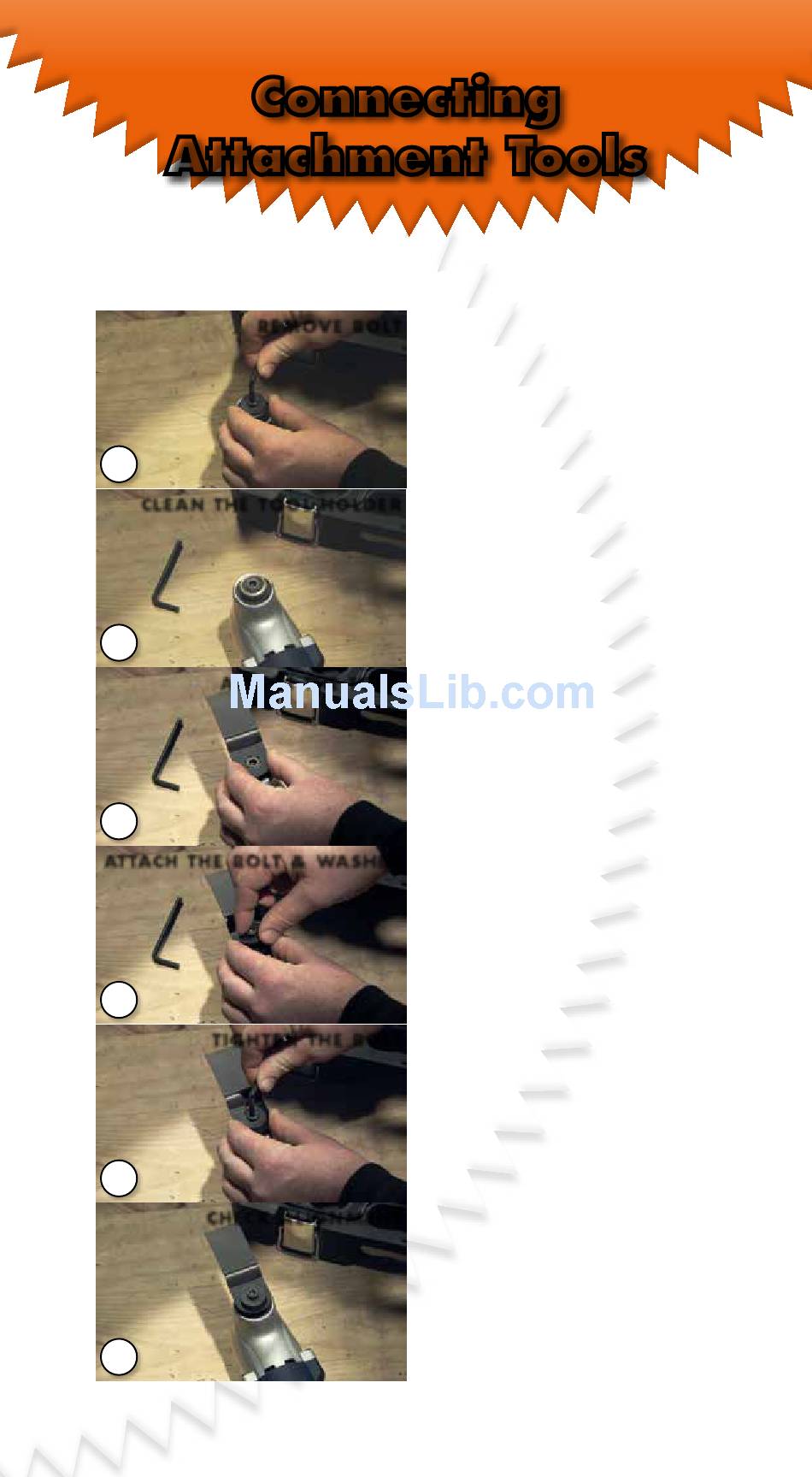

FOLLOW THESE STEPS BEFORE USING ATTACHMENTS
1
CLEAN THE TOOL HOLDER
2
ATTACH THE TOOL
3
ATTACH THE BOLT & WASHER
4
TIGHTEN THE BOLT
5
CHECK ALIGNMENT
6
Connecting
REMOVE BOLT
16
Unscrew the bolt and remove
the washer (make sure the
springwasher stays on the
bolt). (1)
Clean the tool holder, the
application tool, the bolt and
the washer. (2)
Place the application tool
precisely onto the hexagonal-
shaped tool holder. (3)
Note that the application tool
has a flush fit.
Reposition the washer and
the bolt (4) (make sure the
springwasher is on the bolt
and fits nicely on top the
washer - see page 18 for more
information).
Tighten the bolt using the
supplied Allen key. (5)
Check all parts are aligned
correctly and are secure. (6)
