Summary of Contents for Ozito OZJS750WB

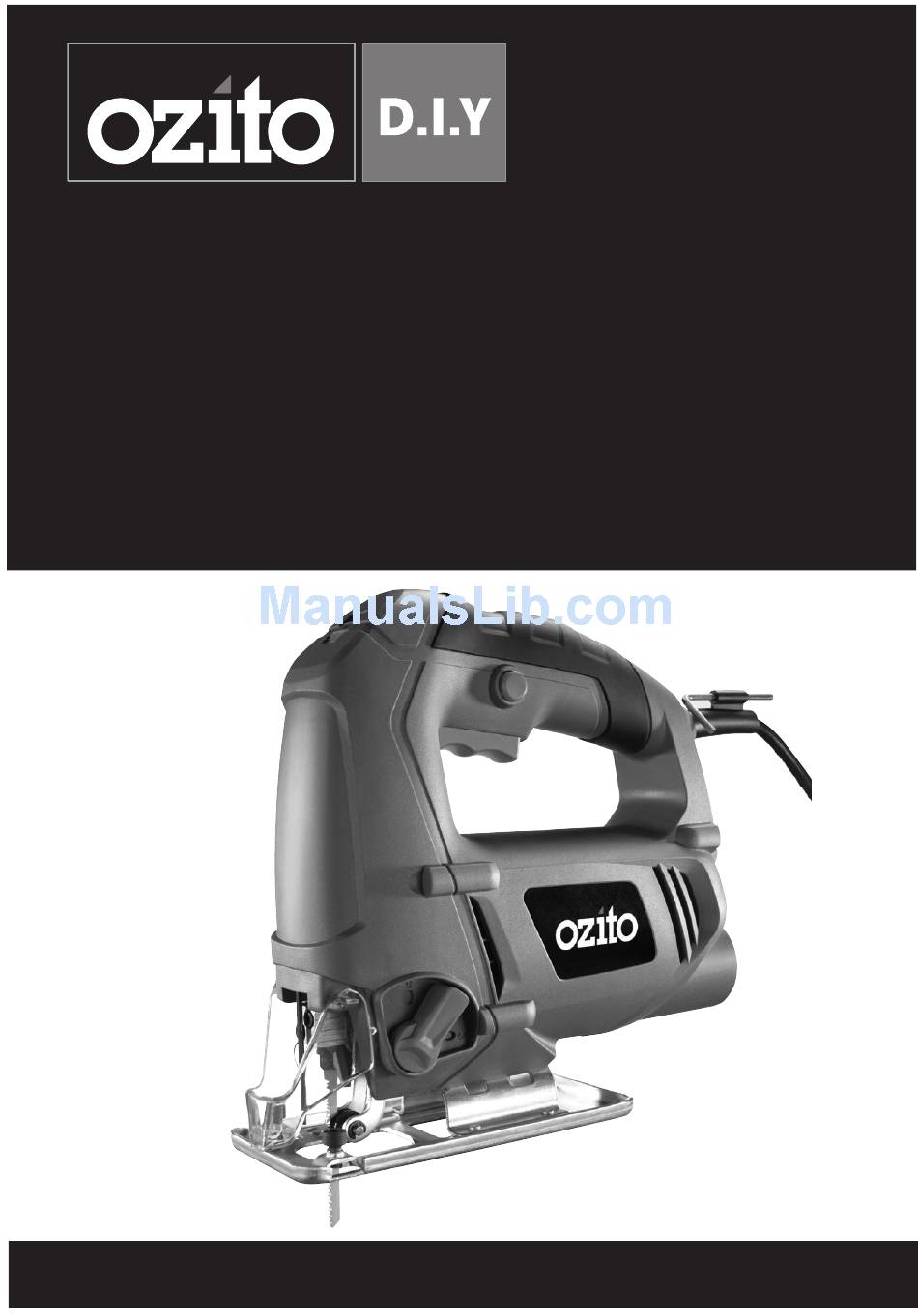

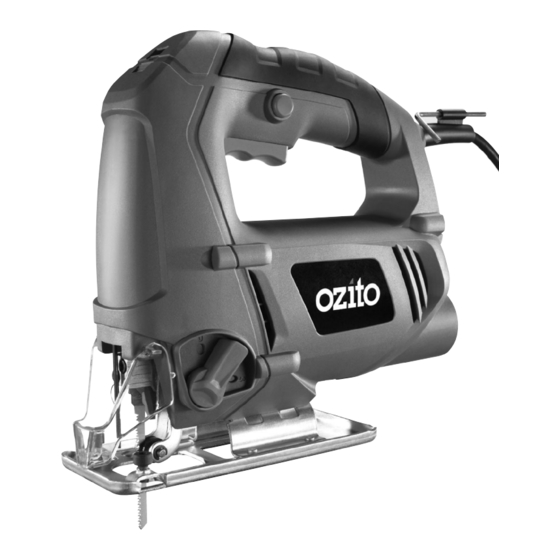

- Page 1 Jigsaw 750W Operation Manual 3 Year Replacement Warranty OZJS750WB CAUTION: Read this operation manual before using this tool. 0609 www.ozito.com.au To view the full range visit:...
-
Page 2: Specifications
SPECIFICATIONS - MODEL NO. OZJS750WB Motor: 750 Watts Input: 230-240V ~ 50Hz No load speed: 800 - 3,000/min Stroke Depth: 20mm Pendulum action: 4 Stage Bevel: 0 - 45 Degree L & R Blade Fitment: T-shank and Universal Weight (tool only): 2.7kg... -
Page 3: Table Of Contents
TABLE OF CONTENTS SPECIFICATIONS………………………………………… Page 2 TABLE OF CONTENTS………………………………….. Page 3 INTRODUCTION……………………………………….… Page 4 GENERAL SAFETY INSTRUCTIONS…………………..Page 4 GENERAL SAFETY RULES………………………………. Page 5 OPERATION…………………………………….………... Page 8 MAINTENANCE…………….……………………………. Page 11 CARBON BRUSHES……………………………………… Page 11 SPARE PARTS…………………………………………….. Page 11 DESCRIPTION OF SYMBOLS…………………………… Page 12 CONTENTS……..…………………………………………... -
Page 4: Introduction
The electric motor has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. -
Page 5: General Safety Rules
GENERAL SAFETY RULES Warning! Read all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. The term "power tool" in all of the warnings listed below refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 6 GENERAL SAFETY RULES (cont.) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 7 ADDITIONAL SAFETY INSTRUCTIONS FOR JIGSAW This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Recommendations for the use of a residual current device with a rated residual current of 30mA or less.
-
Page 8: Operation
OPERATION Turning the Jigsaw On/off To turn on the jigsaw, squeeze the on/off trigger (5). To turn off, release the on/off trigger (5). The tool can be locked on for continuous use by squeezing the on/off trigger (5) fully and depressing the switch lock on button (3). The switch lock button is on the left side of the tool. - Page 9 OPERATION (cont.) Pendulum Action Fig 3 The pendulum action adjustment (7) (fig. 3) has 4 positions. The first position '0' selects normal cutting without pendulum action. The following 3 positions engage the pendulum action which means the blade swings slightly backwards and forwards as it cuts.
- Page 10 OPERATION (cont.) Cutting It is recommended to first mark your intended cutting line with a pencil or appropriate marker. Start the tool and wait a short moment until the blade achieves maximum speed. Put the bottom of the base on the work piece and move forward slowly along the cutting line.
-
Page 11: Maintenance
Always replace both carbon brushes at the same time. Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool. -
Page 12: Description Of Symbols
DESCRIPTION OF SYMBOLS Volts Hertz Alternating current Watts /min Revolutions or No load speed reciprocation per minute km/h Kilometer per hour Decibel level ø Diameter ºC Degrees Celsius Double insulated Regulator compliance mark Do not expose to rain Read instruction manual Warning Milli Amperes CARING FOR THE ENVIRONMENT... -
Page 13: Contents
CONTENTS 1 x Jigsaw OZJS750WB 1 x Dust extraction adaptor 1 x Blade 1 x Allen key (3mm) 1 x Rip Fence 1 x Operation manual OZITO INDUSTRIES PTY LTD AUSTRALIA (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175... -
Page 14: Warranty
PURCHASED FROM: ________________________________________________ DATE PURCHASED: ________________________________________________ 3 YEAR REPLACEMENT WARRANTY Your Ozito tool is guaranteed for a period of 36 months from the original date of purchase and is intended for DIY (Do it yourself) use only. WARNING The following actions will result in the warranty being void.
