Moxa Technologies IKS-6324 Series Hardware Installation Manual

Industrial Rackmount Switch
IKS-6324 Series
Hardware Installation Guide
Second Edition, June 2008
Package Checklist
The Moxa IKS-6324 Series industrial rackmount switches are shipped
with the following items. If any of these items is missing or damaged,
please contact your customer service representative for assistance.
1 Moxa IKS-6324 Switch
Hardware Installation Guide
Moxa Product Warranty Statement
Protective caps for unused ports
2 rack-mount ears

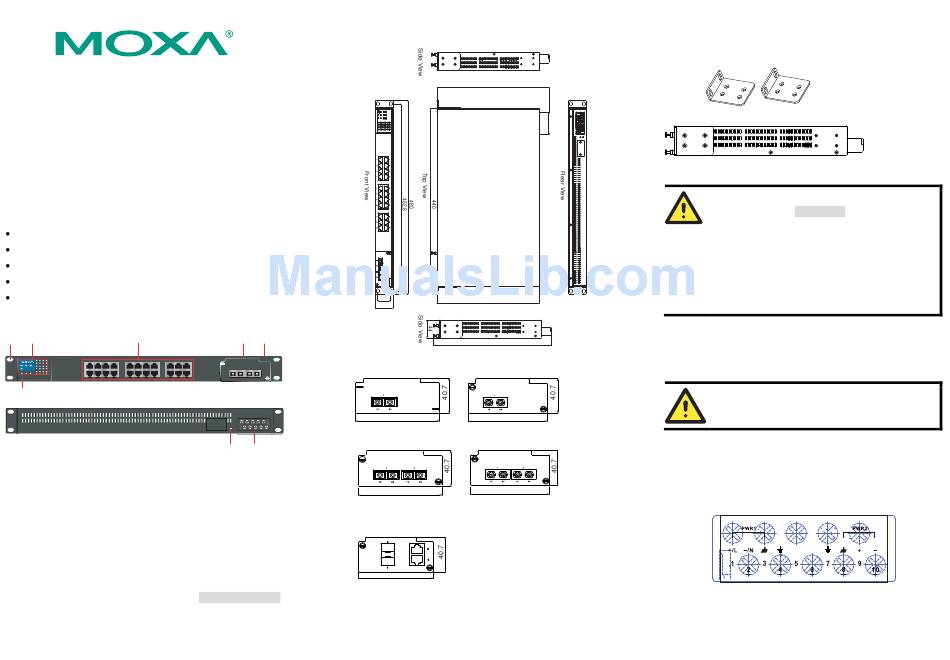

Panel Layouts
7 1 5
2 4 6 8 2 4 6 8 10 12 14 16 18 20
1 3 5 7
STAT PWR1 PWR2
10 12 14 16
FAULT 9 15
11 13
LNK/ACT SPEED FDX/HDX 18 20 22 2
M1
17 19 21 1
MODE
1 3 5 7 9 11 13 15 17 19
2
Front View
IRK-6324
Rear View
1. LED Indicators (System status, Interface Module mode, Interface
Module port)
2. Push-button switch to select mode for Interface Module
3. Model Name
4. Fast Ethernet / Gigabit Ethernet Interface Modules
5. 10/100BaseT(X) port
6. 10-pin terminal block for power inputs
7. Rack Mounting Kit
8. Ground Screw
— 1 —
Dimensions (unit = mm)
4 3
M1 IRK-6324
Fast Ethernet Interface Module
22
1 2
21 TX RX TX RX
PM-7200-1MSC/ PM-7200-1SSC
8 6
PM-7200-2MSC/PM-7200-2SSC
Gigabit Ethernet Interface Module
PM-7200-2GTXSFP
P/N: 1802063240011
278.3
31.8
254
44
292.4
86.6 86.6
PM-7200-1MST
86.6
86.6
PM-7200- 2MST
Slot 1 for 2-port PM-7200 Gigabit
Ethernet combo module, or 2- or 1-port
PM-7200 fast Ethernet modules.
86.6
— 2 —
Rack Mounting
Use four screws to attach the switch to a standard rack.
Wiring Requirements
WARNING
Safety First!
Be sure to disconnect the power cord before installing
and/or wiring your Moxa industrial rackmount switch.
Calculate the maximum possible current in each power
wire and common wire. Observe all electrical codes
dictating the maximum current allowable for each wire
size. If the current goes above the maximum ratings, the
wiring could overheat, causing serious damage to your
equipment.
Grounding Moxa's Rackmount Switches
Grounding and wire routing help limit the effects of noise due to
electromagnetic interference (EMI). Run the ground connection from the
ground screw to the grounding surface prior to connecting devices.
ATTENTION
This product is intended to be mounted to a well-grounded
mounting surface, such as a metal panel.
Wiring the Power Inputs
The IKS series supports dual redundant power supplies, named "Power
Supply 1 (PWR1)" and "Power Supply 2 (PWR2)". The connections for
PWR1 and PWR2 are located on the terminal block. Front view of the
terminal block connectors are shown here.
— 3 —
