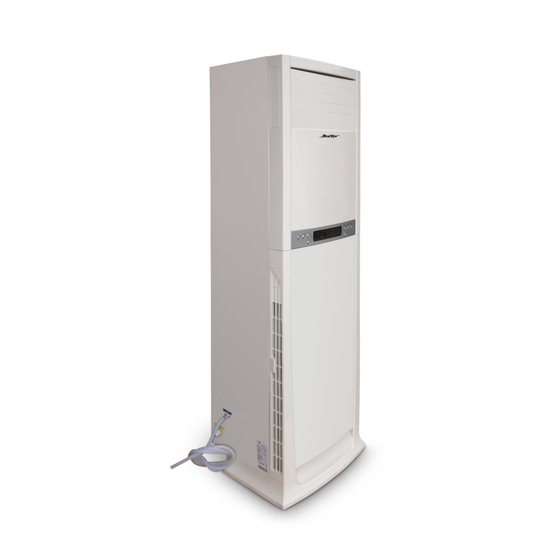

- Page 1 EH 1700P Air dehumidifiers Operation manual...
- Page 2 www.danvex.fi...
- Page 3 Air dehumidification........................3 Precautions ..........................Dehumidifier description ......................Location and functions ....................... Dehumidifier design ......................... Control panel ........................... Start up and operation ......................Specifications .......................... Support and warranty ......................This instructions manual should always be near or on the unit! www.danvex.fi...
- Page 4 1. By heating with further air exchange: The ambient air is heated to absorb the moisture and then it is discharged to the atmosphere. However the total energy output is lost during the moist air discharging to the atmosphere. www.danvex.fi...
- Page 5 This means that the maximum (= absolute) water content increases with temperature increasing. Water vapor content in g/m in the air at the Temp. °C humidity of 100% 10,2 12,8 10,4 13,8 17,3 13,8 18,4 23,0 12,9 18,2 24,3 30,3 www.danvex.fi...
- Page 6 The produced condensate is collected in the unit and discharged. The air flow is cooled on the way through /via the evaporator-condenser till its temperature is below the dew point. Water vapor condenses, it is collected in a condensate trap and discharged. www.danvex.fi...
- Page 7 Normally the time necessary for drying does not depend only on the unit capacity, but is determined by the rate at which the material or the building elements release the moisture they contain. www.danvex.fi...
- Page 8 12. If the power cord is damaged it should be replaced by the manufacturer, service center or similar qualified specialists to avoid danger. 13. It is prohibited to use the unit in the locations where chemical substances are used. 14. Before cleaning the unit should be switched off. www.danvex.fi...
- Page 9 Dried and cooled air is heated in the condenser (radiator) again. Then it is discharged to outside, the air temperature is about 5 degrees higher than the room temperature. The dried air is mixed with surrounding air again. www.danvex.fi...
- Page 10 2. It must be ensured that the air is able to be sucked in freely at the front of the unit and to be discharged through the top part of the air throttle. It is prohibited to locate the unit in close proximity to radiators and other heat sources. www.danvex.fi...
- Page 11 The compressor switches on after 3 minutes only. We do not ensure the efficient operation of the unit if the room temperature is below 6°C and if the relative humidity is below 40 %. www.danvex.fi...
- Page 12 Unit mounting is usually executed along the wall. Humidifier comes standard with mounting angles to fix the humidifier to the wall as shown at Fig.1 and Fig.2. www.danvex.fi...
- Page 13 DEHUMIFIER DESIGN 1) Dehumidified air outlet 2) Control panel 3) Air filter (inside) 4) Air intake 5) Humidity sensor 6) Temperature sensor 7) Collecting drain pan 8) Valve 9) Compressor www.danvex.fi...
- Page 14 Vertical louvers ON/OFF button Horizontal louvers ON/OFF button Air heating button (option) Timer button Display Timer indicator Auto mode Temperature indicator Ventilation mode Heating mode Humidity indicator Timer, temperature, humidity values Dehumidification mode Heating element (option) www.danvex.fi...
- Page 15 IR transmitter Humidity control button Status LCD display ON/OFF button Mode selection button Timer off button Ventilation modes Timer on button Cancel button Confirmation button Louvers ON/OFF button Heating button (option) www.danvex.fi...
- Page 16 - In case of the repeated startup you can skip the steps 1 – 3 if the fan and temperature parameters are not to be changed. - In case of the repeated switching on the compressor will start not earlier than in 3 minutes after the humidifier switching off. www.danvex.fi...
- Page 17 <23 С or >28 Mode/Temperature 23 С ~28 С humidity >80% humidity <80% Not operating Dehumidification Operating Operating Not operating Not operating Heating Operating In Auto mode the dehumidifier works only if it's equipped with the optional heater (heating element). www.danvex.fi...
- Page 18 - To provide the better effect it's recommended to install the shutters horizontally or vertically in the dehumidification mode and downwards in the heating mode. Vertical louvers Attention: don't try to regulate the air flow louvers manually www.danvex.fi...
- Page 19 Wiring diagram www.danvex.fi...
- Page 20 Крыльчатка вентилятора Controller PCB Cover Transformer Fan impeller Dehumidifier controller Motor fixation panel Sensor Fan case Mounting stop angle Evaporator Filling nipple Condensate collecting pan 1 Humidity sensor Condensate collecting pan 2 Temperature sensor Lower trim panel Electric wire www.danvex.fi...
- Page 21 SPECIFICATION DEH-1700p Model Characteristics Power supply 220-240V-50HZ Consumed power 1,65 kW Operating current 4.9 A NET weight 86 kg GROSS weight 94 kg Moisture removal at - (30°С / 80%) 163.2 l/day Air consumption 1100m3/hour Dimensions (HхDхW) 1720 mm х 420 mm х 480 mm Temperature range 6°С~32°С...
- Page 22 The warranty does not cover wearable parts such as filters. The warranty covers the defects in workmanship and materials. During the warranty period DanVex repairs and replaces the part having a defect of material or an manufacturing error. DanVex completely fulfills its warranty obligations when it supplies the Customer a repaired or a spare part.
