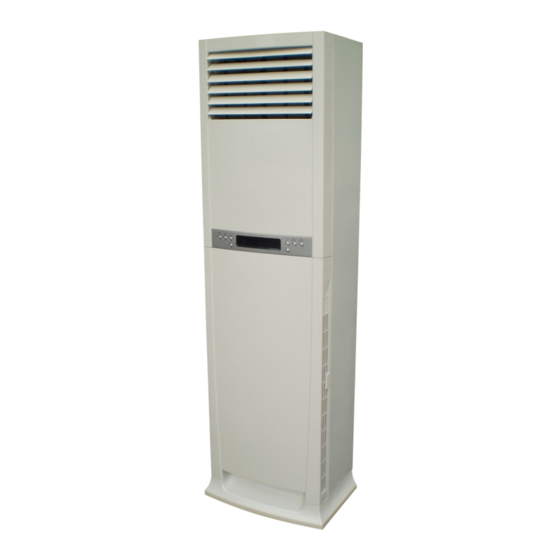

- Page 1 Air dehumidifiers DEH-1200p / DEH-1700p Operation manual rev. 3.10...
-
Page 2: Table Of Contents
Operation Guide ............................... 13 AUTO Operation Mode ............................ 14 Air Direction Adjustment ..........................15 Timer Operations .............................. 16 Defrost system ..............................17 Water drainage system ............................ 17 Wiring diagram ..............................18 Maintenance ..............................19 Error Codes ............................... 21 Trouble shooting ............................... 21 www.danvex.fi... -
Page 3: Warning Of R32
Controls of refrigeration equipment When electrical components are replaced, they must be suitable for the intended purpose and the appropriate specifications. Only the parts of the manufacturer can be used. If in doubt, consult the technical service of the manufacturer. www.danvex.fi... - Page 4 That the capacitors are discharged: this must be done in a safe way to avoid the possibility of sparks; • No electrical components or wiring are exposed during loading, recovery or purging of the refrigerant gas system; • There is continuity of grounding www.danvex.fi...
-
Page 5: Safety Instruction
PROHIBITION PROHIBITION WARNING When abnormality such as burnt-small Use an exclusive power source with a found, immediately stop the operation circuit breaker. button and contact sales shop. www.danvex.fi... -
Page 6: Attention During Usage
Please consult the dealer of service centre as soon as possible to arrange for a repair. www.danvex.fi... - Page 7 Do not use it for keeping If internal combustion of the Due to danger of electric precision instruments, food, heater is not complete, it may shocks. plants and artistic items. This give out poisonous carbon may affect the quality of the monoxide. food. www.danvex.fi...
-
Page 8: Principle Of Dehumidifier
The dehumidifier use the refrigeration circuit to change the damp air warm dry air. When the damp air passes the condenser, the air water will be condensed and the air will become dry. Specification Model DEH-1200P DEH-1700P Power supply V/Ph/Hz 220-240~/1/50... -
Page 9: Exploded Views
Exploded Views DEH-1200P Front Panel 1 Plastic foam air duct Motor Capacitor Front Panel 2 Evaporator Circuit Board Control panel Water pan Transformer Back panel (up) Water fender Electrical box Left panel Plastic-base Stepper motor Top cover Chassis Synchronous motor... - Page 10 Cross flow fan 26 Terminal Indoor temperature sensor Cover 27 Compressor Capacitor Support foot Fan motor 28 Public Terminal Electrical box cover Wind deflector 29 Motor Capacitor Plastic foam air duct 30 Circuit Board Please note: The picture for reference only www.danvex.fi...
-
Page 11: Installation Note
When the heat pump need to measure the (only for DEH-1700P) pressure of the current system or to filling refrigerant, the operator can use this service valve and make the appropriate maintenance work! www.danvex.fi... -
Page 12: Panel Control
CLOCK status ② ⑦ Fan operation mode Displays when turns to TEMPERATURE status ③ ⑧ Heating operation mode Displays when turns to HUMIDITY status ④ Dehumidifying operation mode ⑨ CLOCK or TEMPERATURE or display ⑤ Auxiliary electrical heater www.danvex.fi... -
Page 13: Operation Guide
When heating mode is selected, the internal fan will delay operation for a while when the machine is switched on to prevent cool air circulation at the beginning. After switching on, air flow amount and temperature may be separately adjusted as desired. www.danvex.fi... -
Page 14: Auto Operation Mode
18~31℃ adjustable Factory setting is 25℃ Dehumidify 1%~99% adjustable Factory setting is 60% Adjustment in Automatic Mode Feeling Button Operation Press once to change the air flow progressively Unsuitable fan speed FAN until the suitable air flow is selected. www.danvex.fi... -
Page 15: Air Direction Adjustment
To get the best effect, the up-down air flow is usually set in the following manner: Dehumidifying - Horizontal air direction or upward air direction. Heating -Downward air direction. Changing Left-Right Air Direction NOTE: Don’t move the Left-Right vane directly. www.danvex.fi... -
Page 16: Timer Operations
Timer Cancellation Press "L-R" and "U-D" button meanwhile for 5 seconds to cancel the timer-on or timer-off settings, at that time, symbol disappears. www.danvex.fi... -
Page 17: Defrost System
Mean while an error message “E4” will appear in the control panel to inform you to empty the water. In this instance, you should cut the power off, and then restart the dehumidifier, and the operation will continue. www.danvex.fi... -
Page 18: Wiring Diagram
Wiring diagram For DEH-1200P For DEH-1700P www.danvex.fi... -
Page 19: Maintenance
Then the filter will be taken out along a gradient way. Clean the filter. Use a vacuum cleaner to remove dust, or wash the filter with water. After washing, dry the filter completely in the shade. Then, reinstall it onto the unit. www.danvex.fi... - Page 20 1. Operate in FAN mode for about half a day. On a fine day, unit shall be started and operate in FAN mode for about half a day until the inside of the unit becomes thoroughly dry. Turn off the power supply main switch. 3. Cleaning the body. www.danvex.fi...
-
Page 21: Error Codes
Is fuse blown out? Is the air filter dirty? Normally it should be cleaned every 15 days. Inefficient Are there any obstacles before inlet and outlet? Is temperature set correctly? Are there some doors or windows left open? www.danvex.fi...
