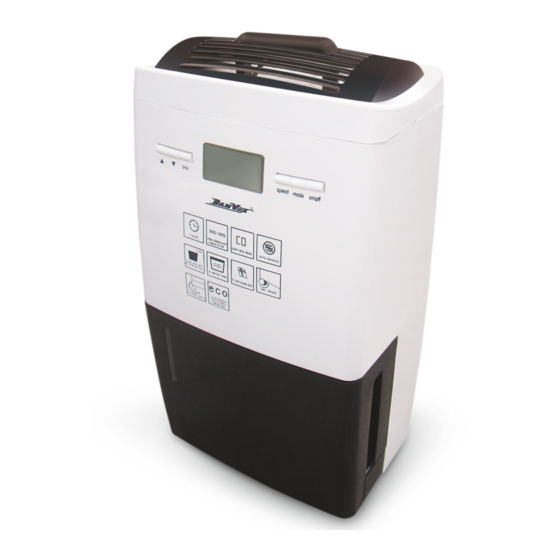

- Page 1 DanVex DEH-290h Dehumidifier Operation manual...
- Page 2 www.danvex.fi...
- Page 3 Attention!!! These units cannot be used for air cooling!!! Use of DanVex dehumidifier ◊ Despite of windows and doors insulation quality, damp and moisture can penetrate even through thick concrete walls.
- Page 4 The energy expenditure requirements are limited by the air volume in the existing room only. The mechanical heat released during the dehumidification process slightly increases the air temperature in the room. When properly used the dehumidifier consumes about 25% of the energy that would be needed for the „heating and ventilation". www.danvex.fi...
- Page 5 When the air is cooled below the dew-point temperature, the water vapor content becomes higher than the maximum possible water vapor content. Water vapor displacement starts. The vapor condenses to water. Thus the moisture is removed from the air. www.danvex.fi...
- Page 6 Heat of condensation The energy transferred from the condenser to the air consists of: The heat earlier transferred from the evaporator Real electrical power. The heat of condensation released through the condensation of water vapor. www.danvex.fi...
- Page 7 ◊ It is prohibited to use the unit for purposes other than intended or not specified in this operations instructions. In case the requirements are not observed our company disclaims any liability and out warranty becomes null and void. www.danvex.fi...
- Page 8 Heat is extracted at the cold evaporator. The air is cooled to below the dew point. The water vapor contained in the room air deposits as condensate or frost on the evaporator fins. www.danvex.fi...
- Page 9 ◊ The room to be dried or dehumidified must be closed to prevent the air entering from neighbor rooms and from outside. ◊ Windows and doors must be closed to prevent free air exchange between the room and ambient atmosphere. www.danvex.fi...
- Page 10 ◊ It is not allowed to pull the unit by the power cord. ◊ Upon actuation the unit operates in fully-automatic mode till it is switched off by the regulator when the condensate tank is full. ◊ The condensate tank should be properly installed. Otherwise the unit will not operate! www.danvex.fi...
- Page 11 Control panel Drain hole Tank Rear cover Transportation wheels Power cord Control panel and LCD display: 290h model Clothes drying mode Timer indicator Dehumidification mode Defrosting mode Speed button Increase Decrease ON/OFF Mode button Timer High Humidity/temperature indicator speed Timer www.danvex.fi...
- Page 12 ◊ It is required to check the air filter condition regularly. Clean and replace it as appropriate. Only authorized personnel is permitted to perform works on cooling and electrical system. www.danvex.fi...
- Page 13 Should the equipment not operate properly upon all the mentioned tests are done, please call the authorized service center for assistance. Only authorized personnel is permitted to perform works on cooling and electrical system. www.danvex.fi...
- Page 14 Specifications DEH-290H Model +5..+32 Operational temperature range °С 30-100 Operational humidity range % RH Dehumidification (at 30 °С / 80% RH) l/day Air capacity m3/hour R134A Cooling agent 1~230 Power Frequency Current 0,36 Rated consumption, max dB (A) Sound pressure, L 1m...
- Page 15 The warranty does not cover wearable parts such as filters. The warranty covers the defects in workmanship and materials. During the warranty period DanVex repairs and replaces the part having a defect of material or an manufacturing error. DanVex completely fulfills its warranty obligations when it supplies the Customer a repaired or a spare part.
