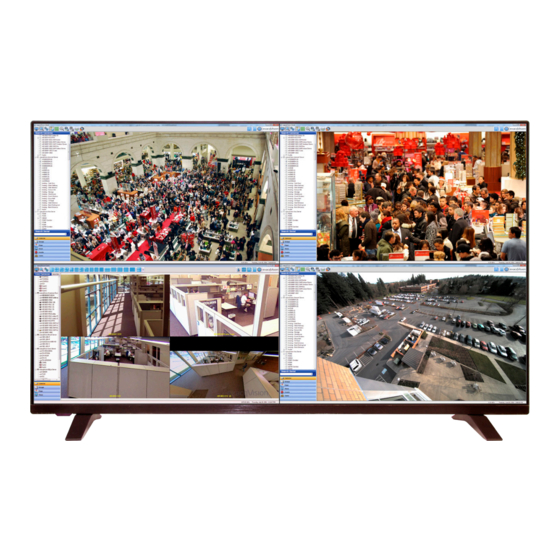

- Page 1 VZ-50UHD 50" UHD LED MONITOR USER MANUAL 4K UHD / QUAD VIEW LED Monitor Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
1. Monitor Button Function ................................2. OSD Controls ...................................... 3. PIP & PBP Function .................................... 4. PIP Window Matrix ..................................Mounting Guide ......................................Specification ........................................Trouble Shooting ................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids, such as vases, shall be placed near the monitor. The monitor should have ample distance(e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 5: Caution
While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 6: Installation
User Manual (Qty 1) M4 x L10mm Screws (Qty 4) Remote Controller (Qty 1) Mounting Option Your ViewZ monitor is compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Ceiling Mount Wall Mount Tilting -10° ~ 0°... -
Page 7: Stand Installation
2. Match the hole between stand and VZ-50UHD Attention! VZ-50UHD : You must use 4 * M4 x L10 screws to assemble this monitor and the stand. WARNING ! If the user uses longer than M4 x L10 mm, it may damage the unit. -
Page 8: Interface & Resolution/Refresh Rate
CONNECTING WITH EXTERNAL EQUIPMENT Interface Input Ports The following image is the description of interface input ports of VZ-50UHD 1. HDMI 4 IN (HDMI 1.4) 2. HDMI 3 IN (HDMI 1.4) 3. HDMI 2 IN (HDMI 2.0) 4. HDMI 1 IN (HDMI 2.0) 5. -
Page 9: Remote Function
3. Left (Hot Key : Volume down ) (Hot Key : Volume up ) 4. Right 5. Down 6. Select (Hot Key : Select Interface Source) 7. Source 8. Menu 9. None User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 10: Function
3. Down 4. Up (Hot Key : Auto Adjust Screen (VGA Source Only)) (Hot Key : Volume Down ) 5. Left 6. Right (Hot Key : Volume Up ) 7. Power Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 11: Osd Controls
Adjust Saturation Adjust Hue Gamma Adjust Gamma Rate to 2.0, 2.2 and 2.4 Aspect Ratio Set up Screen Size as Full, 16:9, 4:3 and 1:1 DCR Turn on/off DCR (Dynamic Contrast Ratio) User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 12 OSD Menu - Advanced Setting Menu Function Color Bypass Turn on/off Color Bypass Mode Picture Bypass Turn on/off Picture Bypass Mode Noise Bypass Turn on/off Noise Bypass Mode Super Resolution Turn on/off Super Resolution Mode Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 13 Adjust Color Temperature, 5700K, 6500K, 9300K and user Adjust Color Red, 5700K, 6500K, 9300K and user Green Adjust Color Green, 5700K, 6500K, 9300K and user Blue Adjust Color Blue, 5700K, 6500K, 9300K and user User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 14 Adjust OSD Menu Horizontal Position on the Screen OSD Vertical Position Adjust OSD Menu Vertical Position on the Screen OSD Transparency Adjust Transparent OSD Menu on the Screen OSD Timeout Set up Time OSD Menu Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 15 Function Language Select language - English, French, Italian German and Korean Volume Turn up/down Volume Mute Turn on/off Mute PC Menu Disable this Menu Factory Reset Back to Initial Factory Setting User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 16 Once two sources are plugged in, the feature will be activated PIP Position Once two sources are plugged in, the feature will be activated *Please refer to page 18 for the detailed description. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 17 Sub Input 2 Set up Sub Input2 Source, DP, HDMI1, 2, 3, 4 and Analog RGB Sub Input 3 Set up Sub Input3 Source, DP, HDMI1, 2, 3, 4 and Analog RGB User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 18: Pip & Pbp Function
Turn on/off PIP&PBP, Select PIP, PBP SBS, Triple PIP and Quad PIP Size PIP Adjust Size of PBP: Small, Medium and Large Set Sub Screen Position LT (Left Top), RT (Right Top), RB (Right PIP Position Bottom) and LB (Left Bottom) Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 19 CONTROL AND FUNCTION PIP Function PBP Function User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 20 CONTROL AND FUNCTION PIP Function - Triple PIP Function - Quad Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 21: Pip Window Matrix
HDMI HDMI If you are using only (3) video inputs, all inputs can be HDMI, but only (1) of the HDMI inputs can be plugged into HDMI Input1 or HDMI Input2. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 22: Mounting Guide
1. VZ-50UHD : UNIVERSAL WALL MOUNT 400mm x 100mm Attention! VZ-50UHD : You must use 4 * M8 x L12 screws to assemble this monitor and the wall mount bracket. WARNING ! If user uses screws longer than M8 x L12 mm, it may cause damage to the unit. -
Page 23: Specification
Storage < 5W Power Saving Mode VESA DPMS Power AC 100V~240V, 50~60Hz Video Interface DP, HDMI x4(V1.4 x2, V2.0 x2), RGB HDMI(2.0) cable, Power cable, User’s Manual, Package Include Remote controller User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 24: Trouble Shooting
- Check HDMI / Display port cable connection LED is flickering - Check the interface cable connection (plug in) or no image - Check DMPS mode of VZ-50UHD and input source Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 25: Rma
- The warranty period for this monitor is 2 years. The warranty will be voided for the scenarios listed below. - You can also download the manual and information of VIEWZ web site: VIEWZUSA.COM When power feed to the monitor exceeded capacity and cause damage... -
Page 26: Warranty
What ViewZ USA Will Do At the sole option of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defective. If ViewZ USA chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
