Summary of Contents for ViewZ VZ-097PM-3G

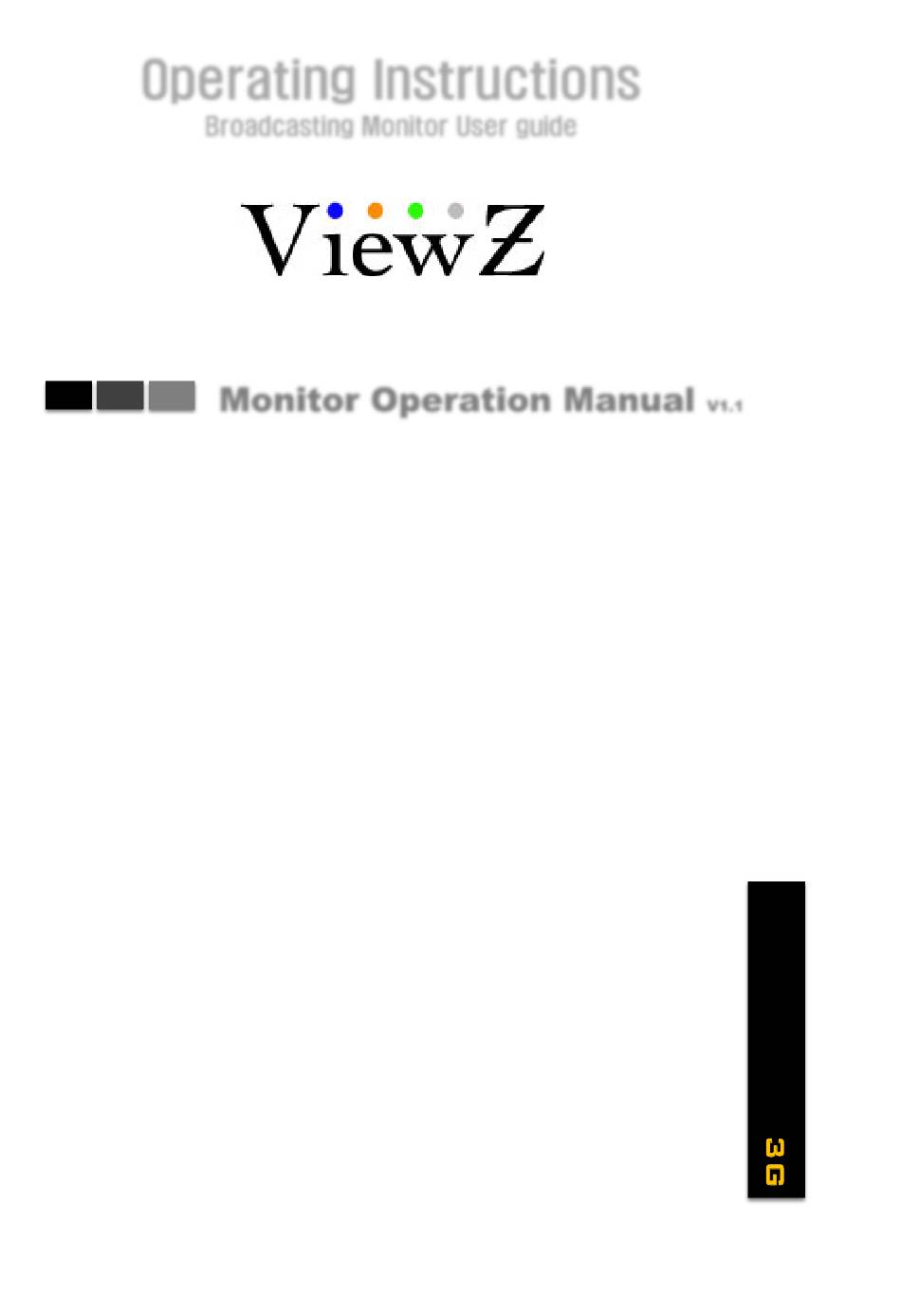

- Page 1 Operating Instructions Broadcasting Monitor User guide Monitor Operation Manual V1.1 VZ-070PM-3G VZ-097PM-3G VZ-185PM-3G VZ-215PM-3G VZ-240PM-3G...
-
Page 2: Table Of Contents
Contents Getting Started A/V Scope Menu Scope Position Caution Scope Mode Product features Line Number WaveForm Enable Viewing the Control Panel WaveForm Source Monitor Info Vector Enable Basic Information Audio Level Meter Initial Setup Setting Menu Display information Language Osd Blend Load sys Default Connections Background Gray... -
Page 3: Getting Started
Getting Started Caution ■ Caution It is highly recommended to read and understand the cautions listed below thoroughly before you start using the product. And if you are unclear with any parts of the cautions or have questions, please contact us. ■... - Page 4 Explanation of Safety Related Symbols ■ ■ Manual contents are subject to change without notice...
-
Page 5: Product Features
Product Factures Product features ■ Waveform Displays the lume (Y") and Chroma (Cb/Cr) components of the input video signal as a form of waves. Vectorscope Displays an X-Y plot of two signal, which can receal details about the relationship between two signals. 16ch 16Channel, De-Embedded Audio Selected Out. -
Page 6: Viewing The Control Panel
Getting Started Viewing the Control Panel ■ monitor info VZ-056-XXXXX monitor 160.4 x 113.9 (mm) Stand 160.4 x 113.9 (mm) Front Tally display Speaker Mount pem Audio in Audio out Rear Speaker V mount Sun Hood Mount pem On/Off switch... - Page 7 Viewing the Control Panel ■ monitor info VZ-070-XXXXX monitor 221.5 x 126 (mm) Stand 221.5 x 136 (mm) Front Mount pem Source select Function key F1 Function key F2 Rato scan choice Tally display Main menu open Function key F3 EXIT Function key F4 Speaker...

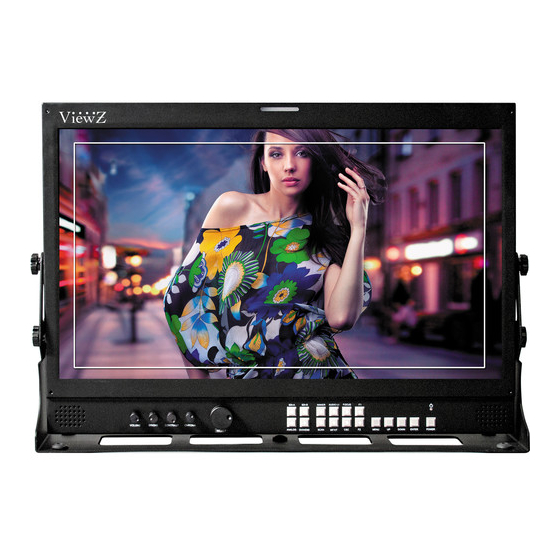

- Page 8 Getting Started Viewing the Control Panel ■ monitor info VZ-097-XXXXX monitor 221.5 x 218.5 (mm) Stand 221.5 x 230.5 (mm) Front Rear...
- Page 9 Viewing the Control Panel ■ monitor info VZ-185-XXXXX monitor 443 x 308 (mm) Stand 443 x 318 (mm) Front Rear...
- Page 10 Getting Started Viewing the Control Panel ■ monitor info VZ-240-XXXXX monitor 563 x 410 (mm) Stand 563 x 420 (mm) Front Rear...
-
Page 11: Basic Information
Basic Information ■ Initial setup When the monitor is initially turned on, follow the instruction below by first pressing the MENU button. Selecting a language Press the UP or DOWN to control, then press SOURCE to select the desired Language. To reset this feature. -
Page 12: Display Information
Getting Started Basic Information ■ Display information Setting information you have entered are displayed on the screen with graphs and texts. ■ Audio Level Center Maker Tally Display Timecode Display Audio Level meter [ Left ] meter [ Right ] CH-1 CH-2 CH-3... -
Page 13: Connecting To Bnc Signal Device
Connecting to BNC Signal Device ■ Input signal 3Gbps ~ 270Mbps VZ-056PM-3G VZ-070PM-3G VZ-097PM-3G VZ-185PM-3G VZ-240PM-3G Input Signal Formats ○ ○ ○ ○ ○ 1080 60P 425M(3G) 4 : 2 : 2 ○ ○ ○ ○ ○ 1080 50p ○... -
Page 14: Sdi Output Signal Format
Connections Connecting to BNC Signal Device ■ Output signal 3Gbps ~ 270Mbps VZ-056PM-3G VZ-070PM-3G VZ-097PM-3G VZ-185PM-3G VZ-240PM-3G Output Signal Formats ○ ○ ○ ○ ○ 1080 60P 425M(3G) 4 : 2 : 2 ○ ○ ○ ○ ○ 1080 50p ○... -
Page 15: Connecting To Hdmi Signal Device
Connecting to HDMI Signal Device ■ HDMI HDMI Input signal Output Signal VZ-056PM-3G VZ-070PM-3G VZ-097PM-3G VZ-185PM-3G VZ-240PM-3G Formats ○ ○ ○ ○ ○ 1080 60P ○ ○ ○ ○ ○ 1080 50p ○ ○ ○ ○ ○ 720 24p ○... -
Page 16: Hdmi Output Signal Format
Connections Connecting to HDMI Signal Device ■ HDMI HDMI Output signal Output Signal VZ-056PM-3G VZ-070PM-3G VZ-097PM-3G VZ-185PM-3G VZ-240PM-3G Formats ○ ○ ○ ○ ○ 1080 60P ○ ○ ○ ○ ○ 1080 50p ○ ○ ○ ○ ○ 720 24p ○... -
Page 17: Connecting To Vga Signal Device
Connecting to VGA Signal Device ■ Input signal 1.0Vpp (G with Sync), 0.7Vpp (B,R) VZ-097PM-3G VZ-185PM-3G VZ-240PM-3G Input Signal Formats Frequency ○ ○ ○ 640 X 400 59.779Hz 29.531 59.779 ○ ○ ○ 720 X 400 85.038Hz 37.927 85.038 ○... -
Page 18: Connecting To Component Signal Device
Connections Connecting to Component Signal Device ■ Component Component Input signal 1.0Vpp (Y with Sync), 0.7Vpp (Pb,Pr) VZ-056PM-3G VZ-070PM-3G VZ-097PM-3G VZ-185PM-3G VZ-240PM-3G Input Signal Formats ○ ○ ○ ○ ○ 480 50i ○ ○ ○ ○ ○ 480 60i ○... -
Page 19: Connecting To Composite Signal Device
Connecting to Composite Signal Device ■ Composite Composite Input signal 1.0Vpp (with Sync) VZ-056PM-3G VZ-070PM-3G VZ-097PM-3G VZ-185PM-3G VZ-240PM-3G Input Signal Formats NTSC ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ SECAM ○ ○ ○ ○ ○... -
Page 20: Rj-45 Remote Control
Connections RJ-45 Remote Control ■ RJ-45 Buyer Option Customer's option... -
Page 21: Video Mode
VIDEO ■ ▶ Video ▶ Mode Main Mode Select your preferred picture type. [ User, Dynamic, Standard, Movie, Mild ] Brightness Controls the degree of brightness between [ 0min ~ 100max ] Contrast Controls the contrast ratio between [ 0min ~ 100max ] ■... -
Page 22: Scan
Aspect ■ ▶ Aspect ▶ ▶ EX monitor - VZ-185PM-3G Display Panel & Source 16 : 9 Scan Main Scan This product supports various scan modes. [ Zreoscan, Underscan, Overscan ] Zreoscan Underscan Overscan Zooms in/out of the image without Zooms in/out of the image without Zooms in/out of the image to 96% changing the aspect ratio. -
Page 23: Anamorphic
Aspect ■ ▶ Aspect ▶ Anamorphic Anamorphic ▶ EX monitor -VZ-185PM-3G Display Panel & Source 16 : 9 Main Select your preferred Anamorphic type. 1.37 : 1 2.35 : 1 Step 1.50 : 1 2.37 : 1 1.55 : 1 2.39 : 1 down 1.60 : 1... -
Page 24: Sdi Audio
Sound ■ Main ▶ Sound ▶ SDI Audio SDI Audio Pri-Group Sec-Group Outupt Channel ■ Main ▶ Sound ▶ Speaker Out Speaker Out ■ Main ▶ Sound ▶ Volume Volume... -
Page 25: Scope Position
A/V Scope ■ ▶ A/V Scope ▶ Scope Position Main Scope Position Select in Scope location ■ Main ▶ A/V Scope ▶ Mode Scope Mode ■ Main ▶ A/V Scope ▶ Line Number Line Number ■ ▶ A/V Scope ▶ Waveform Enable Main Waveform Enable... -
Page 26: Language
Setting ■ ▶ Setting ▶ Language Main Language language Selection ■ ▶ Setting ▶ Osd Blend Main Osd Blend OSD the transparency selection ■ ▶ Setting ▶ Load Sys Default Main Load Sys Default Initializ monitor ■ ▶ Setting ▶ Background Gray Main Background Gray... -
Page 27: Hdmi Output
Advanced ■ ▶ Advanced ▶ HDMI Output Main HDMI Output Select the output source from the HDMI Output port Source Select output signal [ Disable, SDI, Display, HDMI/ADC ] Color Format Select color space [ RGB, 4:2:2, 4:4:4 ] RGB Range Selet color range of RGB color format [ 0-255, 16-235 ] YCbCr Range... -
Page 28: Function Key
Function key ■ ▶ Function Key Main Function Key All front function keys are programmable with any features that included in the product, But only one feature can be assigned per one function key. Blue/ mono, H/V Delay, Max Brigth, SDI Output, HDMI Output, Aspect, Center Marker, Safety Area, Marker, Waveform, Vectorscope, UMD, Audio Lvl Meter, Timecode,... -
Page 29: Accessory
Accessory ■ Accessory Wallmount Hardware 19" Rack Mountable Camera Mount Protective Carrying Bag Protective Sun Visor Battery Mount AC Power Cable ND Filter AR Glass Adaptor... -
Page 30: Specifications
Specifications ■ Specifications VZ-056PM-3G VZ-070PM-3G VZ-097PM-3G VZ-185PM-3G VZ-240PM-3G Product Size 5.6 inch 7 inch 9.7 inch 18.5 inch 24 inch Resolution 1280 x 800 (16:10) 1024 x 600 (16:9) 1024 x 768 (4:3) 1366 X 768 (16:9) 1920 X 1200 (16:10) - Page 31 Operating Instructions Broadcasting Monitor User guide Thank you...
