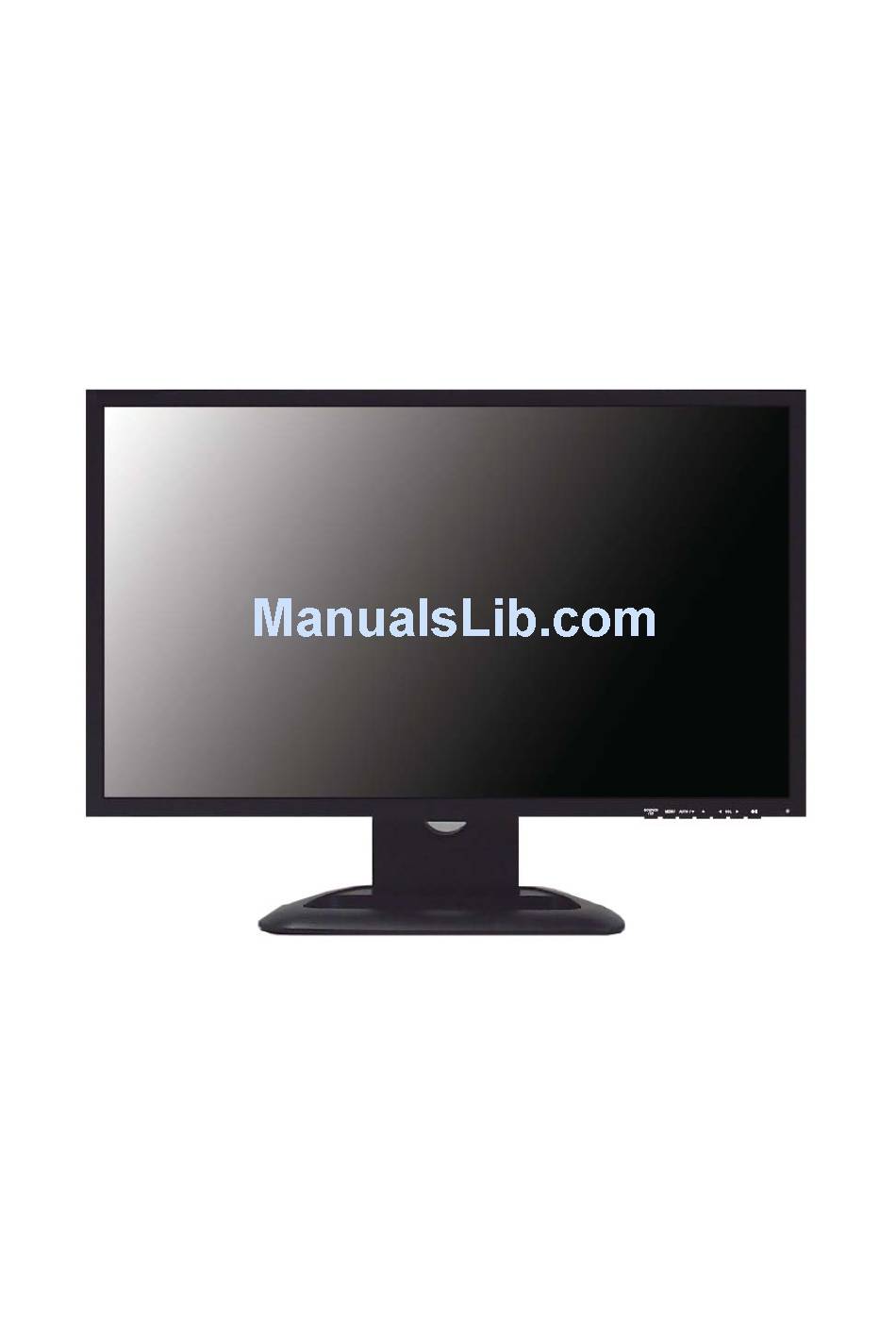

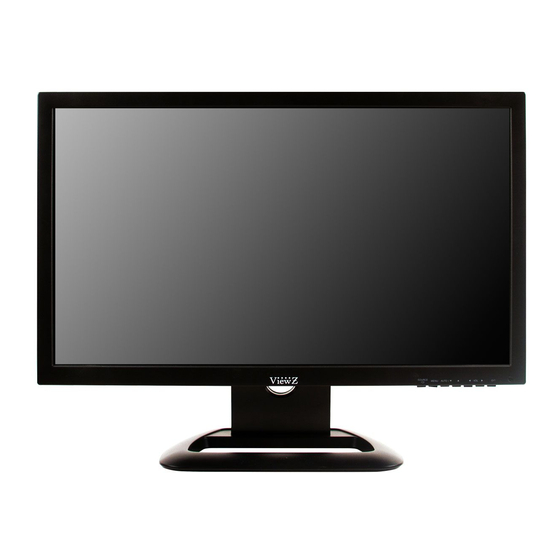

- Page 1 21.5-INCH IPM SERIES TFT-LED MONITOR INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 3: Table Of Contents
INSTRUCTION MANUAL ··············· 01 CONTENTS SAFETY INSTRUCTION ..................CAUTIONS ......................FCC RF INTERFERENCE STATEMENT ............... INSTALLATION ....................... CONNECTING WITH EXTERNAL EQUIPMENT ........... REMOTE FUNCTIONS ..................CONTROL AND FUNCTIONS ................9~14 LAUNCHER PROGRAM GUIDE................15~17 MOUNTING GUIDE ....................POWER MANAGEMENT ..................SPECIFICATIONS.................... -
Page 4: Safety Instruction
02 ··············· INSTRUCTION MANUAL SAFETY INSTRUCTION Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. - Page 5 INSTRUCTION MANUAL ··············· 03 SAFETY INSTRUCTION - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. - Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “...
-
Page 6: Cautions
04 ··············· INSTRUCTION MANUAL CAUTIONS ► CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. CAUTION TO SERVICE PERSONNEL POWER SUPPLY CORD IS USED AS MAIN POWER DISCONNECT DEVICE IN THIS PRODUCT. -
Page 7: Fcc Rf Interference Statement
INSTRUCTION MANUAL ··············· 05 FCC RF INTERFERENCE STATEMENT NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 8: Installation
06 ··············· INSTRUCTION MANUAL INSTALLATION Before setting up the monitor, ensure that the power to the monitor and other attached devices are turned off. ※ Notice: Stand & Screws are optional A. Connecting the stand A-1. Place the monitor with its front facing downward on a soft cloth. 2. -
Page 9: Connecting With External Equipment
INSTRUCTION MANUAL ··············· 07 CONNECTING WITH EXTERNAL EQUIPMENT ► Rear Connection 1. PGM. 2. DC 12V IN. 3. MICRO SD CARD. 4. USB1/USB2. 5. MICRO USB. 6. ETHERNET IN. (RJ45) -
Page 10: Remote Functions
08 ··············· INSTRUCTION MANUAL REMOTE FUNCTIONS ► REMOTE CONTROLLER 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. MUTE Mutes the sound. 3. MENU Activates and exits the On Screen Display. 4. -
Page 11: Control And Functions
INSTRUCTION MANUAL ··············· 09 CONTROL AND FUNCTIONS ► Bottom Key Control / (Source function is unavailable) Enters a submenu or accepts your selection in the OSD menu. 2. MENU Activates and exits the On Screen Display. This button can also be used to move previous menu or status. 3. -
Page 12: Menu Tree
10 ··············· INSTRUCTION MANUAL CONTROL AND FUNCTIONS ► Lock function (Key Lock) 1. Lock : Without OSD menu pop up on the screen. Press down(▼), down(▼), up(▲), up(▲) 2. Unlock : When activating Lock function, press the down(▼), down(▼), up(▲), up(▲) in order. ►... -
Page 13: Osd Menu Description
INSTRUCTION MANUAL ··············· 11 CONTROL AND FUNCTIONS ► OSD MENU DESCRIPTION All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. (On Screen Display) To adjust the OSD screen: 1. Press the Menu Key or Menu Button to enter the OSD Menu. 2. -
Page 14: Color Temp
12 ··············· INSTRUCTION MANUAL CONTROL AND FUNCTIONS ► Color Settings Menu Description ■ Color Temp - used to control color temperature. - users can choose Cool, Normal, Warm, User - in User mode, users can define RGB Gain values for own purpose. ■... - Page 15 INSTRUCTION MANUAL ··············· 13 CONTROL AND FUNCTIONS ► Audio Settings Menu Description ■ Volume - used to control volume level of the internal speaker from 0 to 100. ■ Mute - used to turn off entire audio volume. - to turn back on the audio volume to previous level select Off.
-
Page 16: Osd Language
14 ··············· INSTRUCTION MANUAL CONTROL AND FUNCTIONS ► System Settings Menu Description ■ OSD Language - Sets the language of the OSD menu. (English, German, Spanish, French, Italian, Dutch, Polish, Portuguese, Russian, Turkish) ■ OSD Timeout - Adjust OSD displaying time. (Off, 10, 20, 30, 40, 50, 60) ■... -
Page 17: Launcher Program Guide
INSTRUCTION MANUAL ··············· 15 LAUNCHER PROGRAM GUIDE ► Main Screen ④ ① ② ③ 1. ONVIF Viewer : Shortcut of IP camera Viewer. 2. VMS or Favorites Folder. 3. Application : You can see the whole APP. 4. Background. - Page 18 16 ··············· INSTRUCTION MANUAL LAUNCHER PROGRAM GUIDE ► Shortcut to the VMS You can add apps to VMS/Favorites Folder by long-clicking the app within the All Apps area. From the VMS Shortcut menu, click an app to open it. (Long-clicking the app will remove it). ►...
- Page 19 INSTRUCTION MANUAL ··············· 17 LAUNCHER PROGRAM GUIDE ► Navigation bar Hide Volume Back Home Multi Volume Down Menu ► Ethernet Settings Open “Settings in the “All Apps” section. Click on the Ethernet tab. Enable “Ethernet”. A static IP Address can also be added in this section. •...
-
Page 20: Mounting Guide
18 ··············· INSTRUCTION MANUAL MOUNTING GUIDE Wall mounting (Optional) The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included in the delivery). M4x10 screws ※ ※ Attention! You must use four M4x10 screws to assemble this monitor and the wall mount bracket. ※... -
Page 21: Power Management
INSTRUCTION MANUAL ··············· 19 POWER MANAGEMENT Power Consumption Mode Power Consumption Turned On < 25W < 1W Turned Off LED Indicator The power management feature of the monitor is comprised of two stages: Turned on(Blue) and turned off (Red). Mode Monitor Operation Turned On Blue... -
Page 22: Specifications
20 ··············· INSTRUCTION MANUAL SPECIFICATIONS 1. Monitor Specification 21.5” 21.5” Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm): 0.248(H) x 0.248(V) Brightness: 250cd/m² (Typical) LCD Type Contrast ratio: 1000:1 (Typical) Viewing angle: 170°/160° (H/V) Response time: 5ms (Typ., on/off) Resolution (H x V) 1920X1080@60Hz Horizontal: 31~80kHz, Frequency Vertical: 50~75Hz... -
Page 23: Trouble Shooting Guide
INSTRUCTION MANUAL ··············· 21 TROUBLE SHOOTING GUIDE WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. - Page 24 MEMO...
- Page 25 MEMO...
- Page 26 MEMO...
- Page 28 P/N : L39ME0421 Rev.0...
