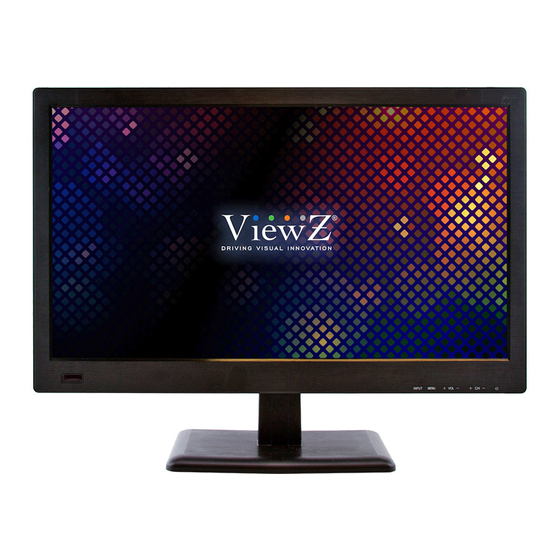

- Page 1 VZ-CME SERIES 19.5", 21.5" and 24" ECONOMIC LED CCTV MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
2. Interface ........................................ 3. Remote Control Function ................................Function .......................................... 1. Monitor Button Function ................................2. OSD Control and Function ................................Mounting Guide ......................................Specification ........................................Trouble Shooting ................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids, such as vases shall be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 5: Caution
While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 6: Fcc Rf Interference Statement
► DOC COMPLIANCE NOTICE This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio interference regulation of Canadian Department of communications. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 7: Installation
Monitor Stand (Qty 1) DC 12V Power Supply (Qty 1) Remote Controller (Qty 1) Mounting Option Your ViewZ monitor is compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Wall Mount Tilting -70° ~ +70° • Part #... -
Page 8: Interface
The following image is the description of interface input ports of BNC Monitor 1. Audio IN / OUT 2. VGA IN 3. HDMI IN 4. DVI IN 5. DC 12V IN Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 9: Remote Control Function
HDMI & DVI input sources allow monitor to change the screen to 4:3 and 16:9 aspect ratio, or make the zoom for monitor 'MUTE' 11. Press the button to on / off audio User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 10: Function
8. Press the SOURCE button to exit the sub-MENU and go back to the main-MENU 9. Press the SOURCE button to exit the OSD MENU Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 11: Osd Control And Function
Out of Range Message: If you connect a specific input source that is out of range on panel frequency (ref. page #17), you will see this message. In this case, please connect proper frequency input source. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 12 0 ~ 100 H-Position Adjust the horizontal position of picture 0 ~ 100 V-Position Adjust the vertical position of picture Auto Adjustment Fit the image size automatically 1) Only available in VGA mode Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 13 0 ~ 100 BLUE Adjust the intensity of BLUE color 1) Only available when select 'USER' mode on 'COLOR TEMPERATURE' AVAILABLE COLOR TEMP. 5000K 6500K 7500K 8200K 9300K 11500K sRGB USER User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 14 Set the OSD MENU transparency 0 ~ 60 OSD Time Out Set the OSD display time 1) 0 : No transparency of OSD Menu 4 : Max Transparency of OSD Menu Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 15 Adjust the video format 16:9 / 4:3 / ZOOM RESET Reset the monitor settings to the factory default 1) HDMI / DVI supports 16:9 / 4:3 / ZOOM VGA only supports 16:9 / 4:3 User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 16: Mounting Guide
VZ-CME monitors are suitable for VESA wall mount (not included in the delivery). M4 x L8 screws 1. VZ-19CME, VZ-22CME, VZ-24CME : VESA WALL MOUNT 100mm x 100mm Attention! VZ-CMX : You must use 4 * M4 x L8 screws to assemble this monitor and the wall mount bracket. -
Page 17: Specification
CE / FCC / ROHS /WEEE Electrical Ratings 12V DC, 3A (AC 100-240V, 50/60Hz) Power Consumption ≤ 24 W ≤ 25 W ≤ 28 W Accessories HDMI cable, Power Supply & Cable, User’s Manual, Remote controller User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 18: Trouble Shooting
At start the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. - Make sure the cable is correctly plugged into the outlet - Make sure the power cable is correctly plugged into the monitor No image or - Make sure the cable is correctly connected between monitor &... -
Page 19: Rma
- The warranty period for this monitor is 3 years. The warranty will be voided for the scenarios listed below. - You can also download the manual and information of VIEWZ web site: VIEWZUSA.COM When power feed to the monitor exceeds capacity and causes damage... -
Page 20: Warranty
What ViewZ USA Will Do At the sole discretion of ViewZ USA, ViewZ USA will repair or replace any product or product part that is defective. If ViewZ USA chooses to replace a defective product or part, a replacement product or part will be shipped to you at no charge, but you must pay any labor costs.
