ViewZ 22-INCH TFT-LCD Instruction Manual

22-inch tft-lcd public view monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

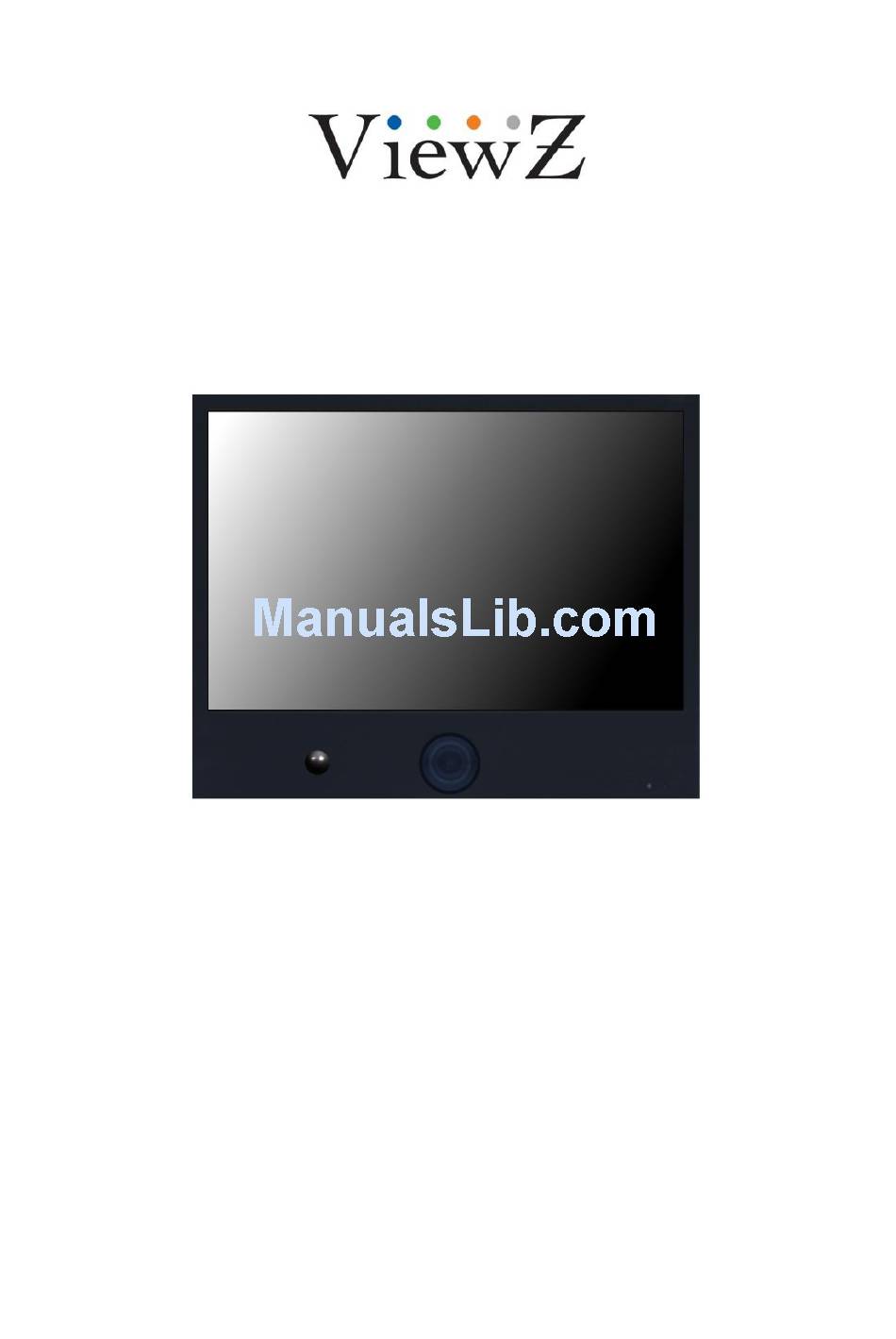

22-INCH TFT-LCD
PUBLIC VIEW MONITOR
INSTRUCTION MANUAL
Please read this manual thoroughly before use, and keep it handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 22-INCH TFT-LCD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ViewZ 22-INCH TFT-LCD

Summary of Contents for ViewZ 22-INCH TFT-LCD

  • Page 1 22-INCH TFT-LCD PUBLIC VIEW MONITOR INSTRUCTION MANUAL Please read this manual thoroughly before use, and keep it handy for future reference.
  • Page 3 SAFETY INSTRUCTION ………………………………………………………….…… 2 ~ 3 CAUTIONS ……………………………………………………………......FCC RF INTERFERENCE STATEMENT ……………………………....... CONNECTING WITH EXTERNAL EQUIPMENT …………………………………… REMOTE FUNCTIONS ………………………………………………………………… CONTROLS AND FUNCTIONS ……………………………………………………….. 8 ~ 23 MOUNTING GUIDE …………………………………………………………………….. D-SUB CONNECTOR PIN ASSIGNMENTS ………………………………………… POWER MANAGEMENT ……………………………………………………………… SPECIFICATIONS ……………………………………………………………………… 27 ~ 30 TROUBLE SHOOTING GUIDE …………………………………………………..

  • Page 4: Important Safety Instruction

    Important Safety Instruction 1. Read these instructions. 2. Keep these Instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

  • Page 5: Instruction Manual

    - The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed no the apparatus. 14 Minimum distances(e.g. 10cm) around the apparatus for sufficient ventilation. “WARNING – To reduce the risk of fire or electric shock, do not expose the apparatus to rain or moisture.” “The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.”...
  • Page 6 CAUTION The power supply cord is used as the main disconnect device, ensure that the socket-outlet is located/installed near the equipment and is easily accessible. ATTENTIONN Le cordon d`alimentation est utillsé comme interrupteur général. La prise de courant doit être située ou installée à...

  • Page 7: Doc Compliance Notice

    NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
  • Page 8 A. TOP PANEL CONTROL A-1. AC IN Type 10 11 12 5 6 7 1. DC 12V IN 2. HDMI IN 3. DVI IN 4. VGA (D-SUB) IN 5. PC STEREO IN 6. AUDIO OUT (Speaker) 7. S-VIDEO (Y/C) IN 8 &...

  • Page 9: Remote Controller(Optional)

    B. REMOTE CONTROLLER(Optional) 1. POWER( Turns the power ON or OFF. There will be a few seconds delay before the display appears. 2. SOURCE Selects pc or video( AV1/AV2/S-Video/DVI/PC) sources. 3. AUTO Auto geometry adjustment in PC Source. 4. MUTE Mute the sound.

  • Page 10: Built-In Camera

    C. FRONT & BACK KEY CONTROL 1. PIR(Passive Infra-Red) Sensor Built-in PIR(Passive Infra-Red) Sensor for the Motion Detection function. 2. BUILT-IN CAMERA Image of this camera is shown by AV1. 3. IR Sensor Remote controller sensor. 4. POWER LED The power LED lights with green when the power is turned ON. The power is turned off by pressing the power switch again and the power LED goes to off.

  • Page 11: Osd Menu Description

    OSD MENU DESCRIPTION All picture, sound settings and setup for the monitor can be adjusted in the OSD menu. (On Screen Display) To adjust the OSD screen: 1. Press the Menu button to enter the OSD menu. 2. Press the ▲/▼ buttons to select the desired option. The selected option is highlighted. 3.
  • Page 12 B. Picture/Sound Option Function Value Picture Mode Sets picture mode. See table below Color Tone Sets color tone. See table below Mute Mutes speaker sound. Off or On Volume Adjust the level of audio volume. 0 ~ 100 Size Display picture size. See table below Reduces noise of the picture.
  • Page 13 Color Tone Cool Gives the white color a bluish tint. Normal Gives the white color a neutral tint. Warm Gives the white color a reddish tint. User To manually adjust the color tones(Red, Green, and Blue). 1) Unavailable in AV1, AV2 and S-Video. Size Sets the image size to 4:3 Panorama...
  • Page 14 C. PIP Option Function Value Activates the PIP feature. Off or On Input Source Selects the input source for the PIP area. See table below Enables 3 screen size.4:3 side by corner, 4:3 side by 4: 3, PIP Mode PIP, PBP1 or PBP2 and full screen side by side.
  • Page 15 D. Setup Option Function Value Resets the monitor settings to their Reset factory default. English, French, Deutsch, Language Sets the language of the OSD menu. Italian, Spanish, Portuguese or Nederland Changes background of monitor menus. OSD Tone Transparency or Blue (e.g.
  • Page 16 Motion Detection (Built-in PIR sensor; Passive Infra-Red) Option Function Value Detection Enable Activates the Motion Detection feature. Off or On AV1, AV2, S-Video, Detection Input Selects the input source for the Motion Detection. RGB PC, DVI or HDMI Activates an audible signal when the monitor Buzzer On or Off receives a motion detection signal.
  • Page 17 Auto Switching Option Function Value Auto Switching Activates the Auto Switching feature. Off or On Opens another menu and you can select the input AV1, AV2, S-Video, RGB PC, Input Enable sources to include in the Auto Switching cycle. DVI and HDMI Selects the amount of time, in seconds, that the Time 3 ~ 100...
  • Page 18 Menu of the M/P (Media Player) • Connect USB & SD card devices 1. Connect USB & SD card devices to USB slot which are on the slide of the monitor set. • Removing the USB & SD card devices from Monitor 1.
  • Page 19 A. PHOTO JPEG File Viewing Options - When you select Photo in entry menu, 1. Press the USB button and then use ◀/▶ button to select the Photo. 2. Press the SEL button. 3. Press the ▲/▼ button to select photo file. 4.
  • Page 20 B. MUSIC - Purchased MP3/music files may contain copyright restrictions. 1. Press ◀/▶ button to select the Music. 2. Press the SEL button. 3. Press the ▲/▼ button to select desired music file. 4. Press the SEL button. Then the music starts. 5.
  • Page 21 C. MOVIE Select the Movie 1. Press ◀/▶ button to select the Movie 2. Press the SEL button. 3. Press the ▲/▼ button to select desired movie file. 4. Press the SEL button. Then the movie starts. 5. Press exit or press the ESC button to return to the USB menu. Using the remote control Playing selected movie file PLAY/PAUSE...
  • Page 22 D. PHOTO MUSIC -Playing slideshow with music. 1. Press the USB button and then use ◀/▶ button to select the PHOTO MUSIC. 2. Press the SEL button. 3. Press the ▲/▼ button to select photo file. 4. Press the SEL button for picture display for slideshow. 5.
  • Page 23 E. PHOTO Thumbnail mode - Thumbnail mode in photo. - Press ▶ button in Photo File list or ACT button in main menu ▲/▼/◀/▶ button to select desired photo file. 1. Press 2. Press SEL button to start Slideshow 3. Press exit or press the ESC button to return to the USB menu. Using the remote control Select desired photo file for slideshow playing PLAY/PAUSE...
  • Page 24 F. SETUP 1. SETUP- PHOTO Select Slideshow Effect -The picture display effect for the slide show. 1. Press ◀/▶ button to select the Setup. 2. Press the SEL button enter the Setup menu. 3. Press the ▶ and then use ▲/▼ button to select Slideshow EFFECT. 4.

  • Page 25: Setup-System

    2. SETUP-SYSTEM Select SUBTITLE LANG. - The menus can be shown on the screen in the selected language. First select your language. 1. Press ◀/▶ button to select the Setup. 2. Press the SEL button to enter the Setup menu. 3.
  • Page 26 Wall mounting (Optional) The LCD monitor is suitable for wall mounting by using the VESA 100 standard wall mount (not included in the delivery). ※ Attention! You must use four M4x10 screws to assemble this monitor and the wall mount bracket. 24 ……………………………………………………………………….
  • Page 27 ▶ PIN ASSIGNMENTS Pin 1 RED VIDEO GREEN VIDEO SIGNAL CABLE DETECT BLUE VIDEO GROUND GROUND SDA(for DDC) GROUND H-SYNC.(or H+V SYNC.) RED GROUND V-SYNC. GREEN GROUND SCL(for DDC) BLUE GROUND D-SUB ▶ ACCESSORIES 1. Power cord. 2. User’s manual. 3.

  • Page 28: Power Consumption

    POWER CONSUMPTION MODE POWER CONSUMPTION < 35W POWER OFF < 1W LED INDICATOR The power management feature of the monitor is comprised of two stages: ON(GREEN) and POWER OFF(RED). MODE LED COLOR MONITOR OPERATION GREEN Normal Operation POWER OFF Not Operation 26 ……………………………………………………………………….

  • Page 29: Input Signal

    1. Monitor Specification 22” 22˝ Diagonal AM-TFT(Active-Matrix) Pixel pitch(mm) : 0.282(H) x 0.282(V) BRIGHTNESS: 250cd/㎡(Typical) LCD-Type CONTRAST RATIO: 1000:1(Typical) VIEWING ANGLE: 160°/160°(H/V) RESPONSE TIME: 5msec(Typical) RESOLUTION (H x V) 1680X1050 @60Hz FREQUENCY HORIZONTAL: 31~80KHz, VERTICAL: 56~75Hz VIDEO(2ch input 1.0Vp-p, 75Ω terminated, loop-through out) S-VIDEO(1ch input (Y/C)) DVI D(Digital Video Interface) HDMI(High Definition Multimedia Interface)

  • Page 30: Camera Specification

    2. Camera Specification ITEM Built-in CAMERA Image Sensor 1/3” C-MOS Effective Pixels 720(H) X 540(V) Sync System INT / LL Selectable Electronic Shutter Up to 1/22,000 sec. Main Video Output 1.0 Vp-p Composite, 75 ohm Service Monitor Output 1.0 Vp-p Composite, 75 ohm Horizontal Resolution 540 TV Lines (High Resolution mode) / F1.2 Min.
  • Page 31 3. PIR sensor Specification ITEM Built-in PIR sensor Detection angle X-axis: 138°, Y-axis: 125° Sensitive Area (mm) 2 elements Spectral Response (㎛) 5~14 Signal Output (mVp-p) Ratings (25[℃]) Noise (mVp-p) Offset Voltage (V) Supply Voltage (V) 2.2~15 Operating Temp. (℃) 30~70 ▶▶...
  • Page 32 4. Card Reader Specification MEDIA SUPPOTING SPECIFICATION Format Support Remarks ITEM Category Video Audio TECRONY (Maximum bitrate, resolution) MP3, layer1,2 Over MPEG1 MPEG1 10,240kbps,720x576 MPEG2 MPEG2 MPEG2 MPEG4 Divx3 Over 10,240kbps,720x576 Over 10,240kbps,720x576 Divx4 Over 10,240kbps,720x576 Movie Over Specification 10,240kbps,720x576 Divx5 Over 10,240kbps,720x576...
  • Page 33 .avi MJEG Extension DivX Over 10,240kbps,720x576 Xvid Over 10,240kbps,720x576 Lossless .asf Subtitle *.smi, *.srt, *.sub (Micro DVD), *.ssa 30 ………………………………………………………………………. INSTRUCTION MANUAL...

  • Page 34: Weee Symbols

    WEEE Symbols Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
  • Page 35 MEMO...
  • Page 37 P/N : L39ME0242 Rev.1...
