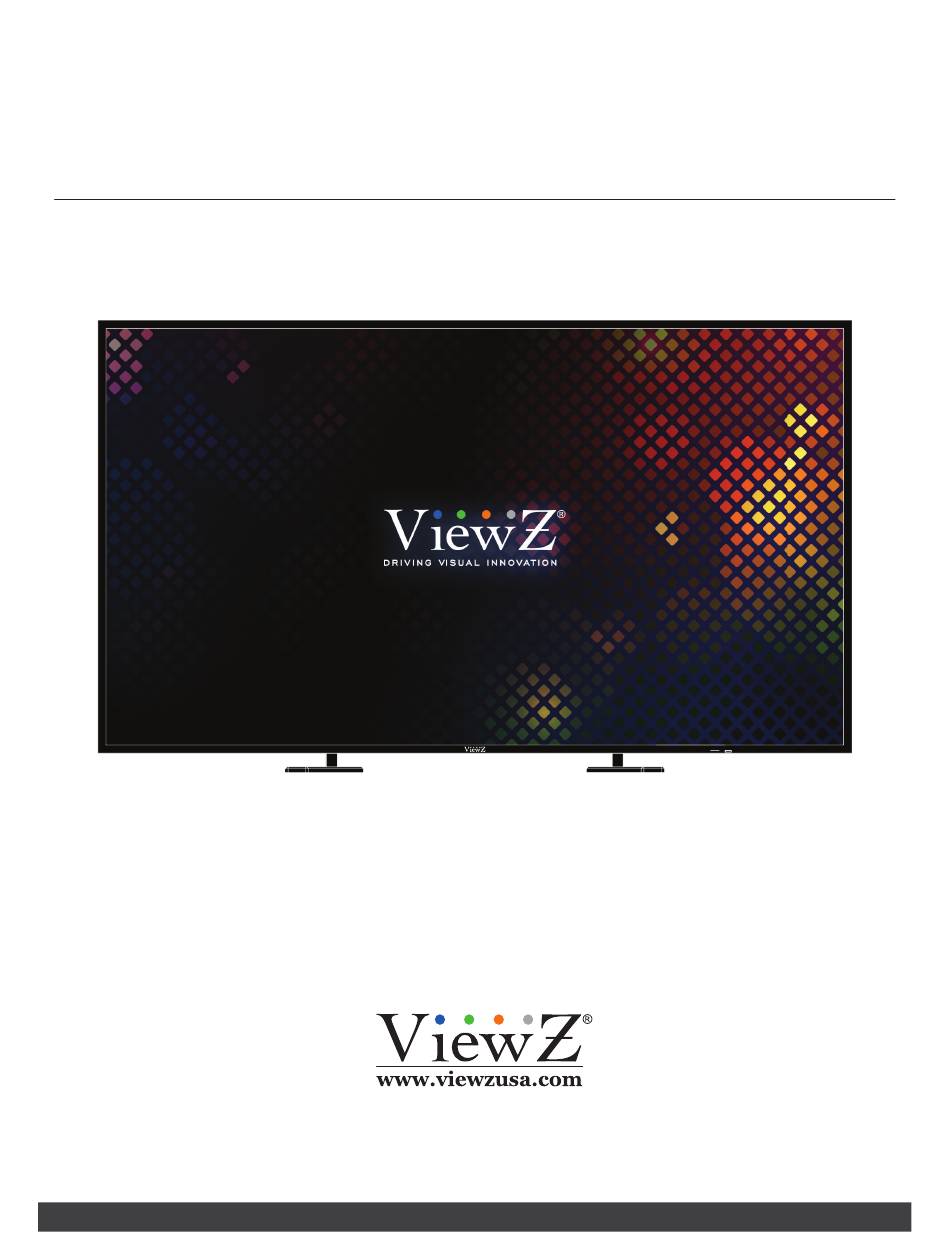

- Page 1 VZ-43, 55 & 65UHD 43", 55" & 65" UHD LED MONITOR USER MANUAL 4K UHD LED Monitor Please read this manual thoroughly before use, and keep it handy for future reference.
-
Page 2: Table Of Contents
2. Monitor Button Function ................................3. OSD Control and Function ................................4. Media Player ......................................Mounting Guide ......................................RS232 (RJ-45) PIN Map ..................................... Specification ........................................Trouble Shooting ................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids such as vases shall not be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 5 While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 6: Fcc Rf Interference Statement
If some company or product trademark is not particularly stated, the use of trademark has been fully recognized. Do not alter, decompile, disassemble, decode or conduct reverse engineering to the software installed in the product, or it can be deemed as breach of the law. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 7: Rohs Compliance
When you will not use this product anymore or warranty is expired, please dispose / send this product to the qualified recycling station near your area. It is ordered / regulated by the Regulation on Recycling and Disposal of Waste Electrical and Electronic Products. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 8: Installation
M6xL30/M8xL45 Screws (Qty 4) Remote Controller (Qty 1) Mounting Option VZ-43, 55 & 65UHD is VESA compliant and compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Compatible ViewZ Wall Mount • Part # WM71 •... -
Page 9: Stand Installation
WARNING ! If the user uses longer screws than M8 x L45 mm, it may damage the unit. Mounting Safety ! At least two people are recommended to install the mount. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 10: Interface
Interface Resolution & Refresh Rate Interface Input Source Max Resolution Refresh Rate Display Port 3840 x 2160 60Hz HDMI ( Ver. 2.0) 3840 x 2160 60Hz DVI-D 3840 x 2160 60Hz 1920 x 1080 60Hz Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 11: Function
/ Press the button to exit & save adjustment value on 7. Press the MUTE button to mute audio - audio only works with a selected input source User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 12: Monitor Button Function
7. Press the MENU button to exit the sub MENU and go back to the main MENU 8. Press the MENU button to exit the OSD MENU Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 13: Osd Control And Function
Detect Source Signal Message If you connect any input source, monitor will display current input source resolution and frequency. Volume Press 'Mute' button on the remote controller to mute the sound. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 14 Press▼ button on the monitor first, and then press ◄ / ► buttons to adjust volume on the monitor. Press▼ button on the remote controller first, and then press ◄ / ► buttons to adjust volume on the remote controller. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 15 Estimates the amount of noise automatically and applies Limit, Full suitable noise reduction processing SMART CURING SCREEN Prevent the burn-in of monitor On / Off GAMMA Adjust the brightness of monitor 2.0, 2.2, 2.4 User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 16 Sports, User BALANCE Adjust the balance L 0 ~ 50 / R 0 ~ 50 SURROUND Set the surround sound ON / OFF Set the auto volume control ON / OFF Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 17 5 / 15 / 30 / 45 / 60 sec SW UPDATE (USB) Set the update for the monitor RESTORE DEFAULT Reset the monitor settings to the factory default POWER LED Set the power indigator On/Off ON / OFF User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 18: Media Player
Plays music files from the USB - Supports AAC, FLAC, MP3, OGG, WAV & M4A MOVIE Plays video files from the USB - Supports MP4, MOV, MKV, FLV & AVI TEXT Plays text files from the USB Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 19 *Note: If you have more than one music file, selected music files will play one by one. 3. Press ║ (PAUSE) button to pause playing music. ■ 4. Press the (STOP) button to return to the Media OSD MENU. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 20 *Note: If you have more than one text file, selected text files will display one by one. 3. Press ║ (PAUSE) button to pause the text file. ■ 4. Press the (STOP) button to return to the Media OSD MENU Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 21: Mounting Guide
M6 x L30 screws for VZ-43UHD , VZ-55UHD M8 x L45 screws for VZ-65UHD 1. VZ-43UHD : Universal Wall Mount (VESA) 400mm x 200mm 2. VZ-55UHD : Universal Wall Mount (VESA) 400mm x 400mm 3. VZ-65UHD : Universal Wall Mount (VESA) 600mm x 400mm... -
Page 22: Rs232 (Rj-45) Pin Map
POWER OFF - RS232 command: 0 x 01 HDMI2 - RS232 command: 0 x 04 DP - RS232 command: 0 x 02 DVI - RS232 command: 0 x 05 The above commands are hexadecimal. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 23: Specification
Safety & EMC Certification FCC / RoHS Electrical Ratings AC 100-240V, 50/60Hz Power Consumption ≤ 90W ≤ 150 W ≤ 170 W Accessories AC 110V Power Cable, HDMI Cable, User’s Manual, Remote Controller, Stand User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 24: Trouble Shooting
At start the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. - Make sure the cable is correctly plugged into the outlet. - Make sure the power cable is correctly plugged into the monitor. -
Page 25: Rma
Failure by limited life of parts such as LED Lamps and any other consumables. Damaged by using third party power cable, unstable power input and electric shock. * Above information can be changed without notification - please check our website or contact ViewZ representative for latest RMA service policy. - Page 26 NOTE Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 27 NOTE User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 28: Warranty
What and Who is Covered by this Limited Warranty and for How Long ViewZ USA warrants this product to be free from defects in material and workmanship for 3 years to the original owner of this product. The limited warranty is valid only for the original purchaser of the product.
