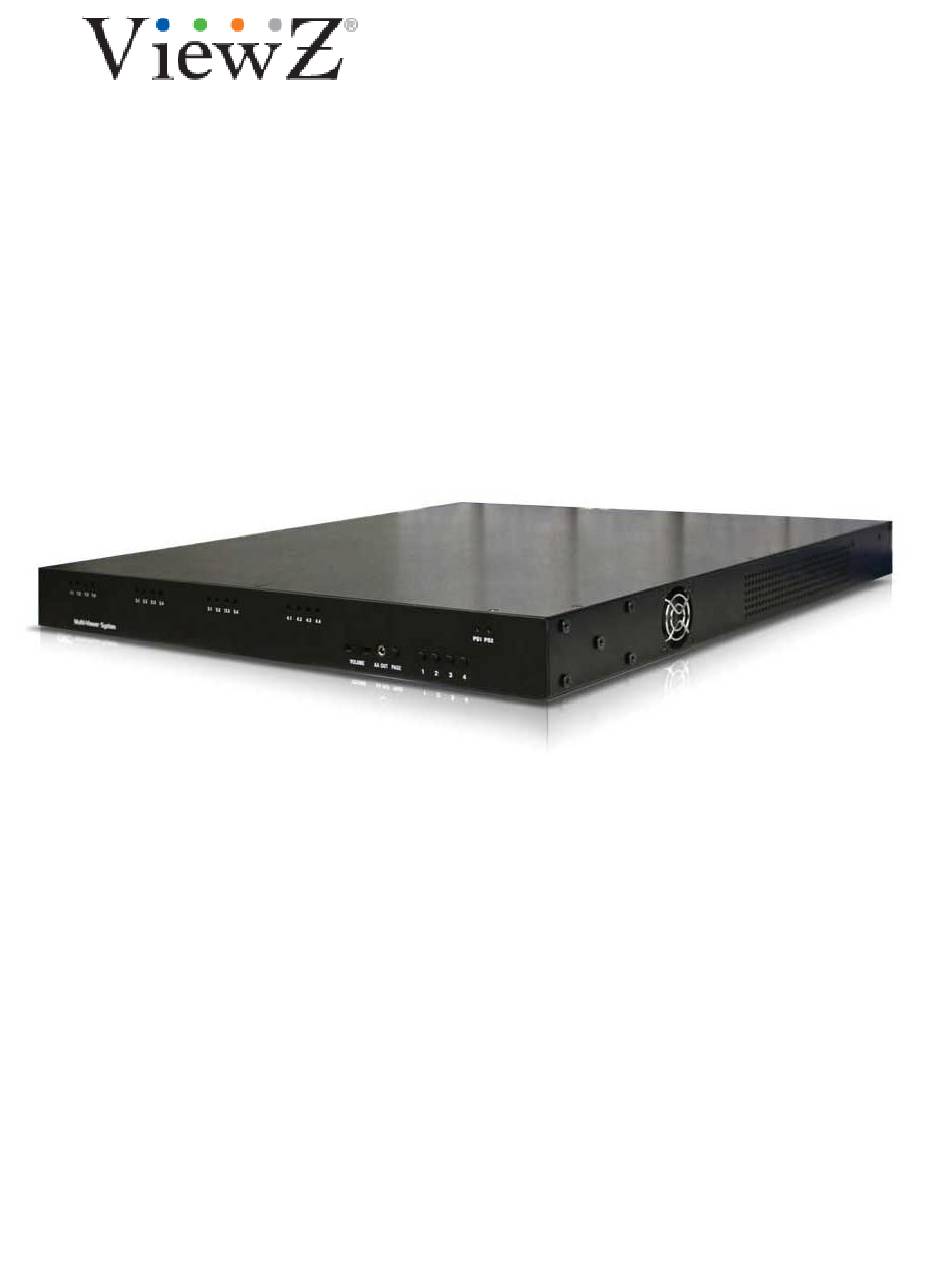

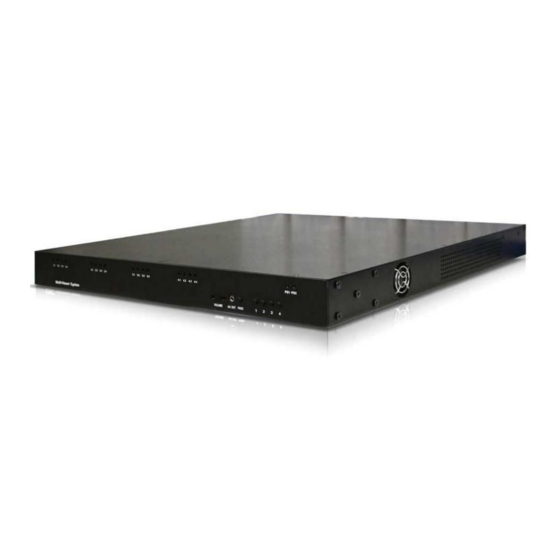

- Page 1 Driving Visual Innovation VZ-MV802 MULTIVIEWER SYSTEM HARDWARE MANUAL VERSION 1.0 Dated Dec. 21, 2018 All contents of this document may change without prior notice, and actual product appearance may differ from that depicted herein...
-
Page 2: Table Of Contents
WARRANTY STATEMENT ......................3 Limitation of Liability .........................4 Extended Warranty Options .....................5 Services and Repairs outside the Warranty Period..............5 Disclaimer..........................5 Operating Environment ......................5 INTRODUCTION TO VZ-MV802 MULTIVIEWERS...............6 HARDWARE..........................6 VZ-MV802 PLATFORM PRODUCT LINE..................6 TECHNICAL SPECIFICATIONS ....................8 PHYSICAL SPECIFICATIONS ....................13 INSTALLATION.......................... 16 OPERATION..........................18 APPENDIX A: CONNECTORS .................... -
Page 3: Compliance Information
RoHS WARRANTY STATEMENT ViewZ warrants to the original purchaser of the products manufactured by ViewZ (the “Product,”) will be free from defects in material and workmanship for a period of three (3) year from the date of shipment of the Product to the purchaser. -
Page 4: Limitation Of Liability
If ViewZ replaces the defective Product with a replacement Product as provided under the terms of this Warranty, in no event will the term of the warranty on the replacement Product exceed the number of months remaining on the warranty covering the defective Product. -
Page 5: Extended Warranty Options
ViewZ equipment. Services and Repairs outside the Warranty Period ViewZ makes its best offer to repair products that are outside the warranty period, provided the product has not reached its end of life. -
Page 6: Introduction To Vz-Mv802 Multiviewers
The ViewZ VZ-MV802 Multiviewer platform displays multiple auto-detecting video inputs at different formats on a high resolution display up to resolutions of 2048x1080. The VZ-MV802 Platform combines the display of video windows, audio meters, label/UMD, tallies, alarms and indicators in a very space efficient package. - Page 7 Two types of mechanical frames are available for the VZ-MVxxx family: 1. VZ-MV802: The 1 RU VZ-MV802 accepts 8 video inputs including from HDMI*, DVI or VGA. The VZ-MV802 has two flexible DVI/HDMI (1.2/1.3) with user selectable resolutions up to 2048x1080.
-
Page 8: Technical Specifications
• Auto-detect aspect ratio between 16x9 and 4x3 • Communication interface via IP or RS232 • Supports ViewZ eXtended Protocol (AXP) • Supports direct TSL tally/UMD interface • Supports multiple languages (including 2 byte characters) •... - Page 9 Table 1: Serial Video input (OPTION) Standards Upgradeable to 3Gb/s (SMPTE 424M) HD-SDI (SMPTE 292M) SD- SDI (SMPTE 259M-C) PAL/NTSC Connector Equalization Automatic to 140m (Belden 1694A) Return Loss 15db up to 270mb/s Embedded Audio SMPTE 272-A Table 2: Video Formats supported 480i 720p/30 1080p/23.98...
- Page 10 Table 5: Display Output Standards HDMI 1.3 up to 2048x1080, SDI* HDMI Connector Impedance 100Q, 75Q *OPTION Table 6: Audio Outputs Type Number/type/connector Location Adjustment 1 / unbalanced / BNC Rear Panel None, Line Level Stereo Analog 1 / unbalanced / phone jack Rear Panel None, Line Level Front Panel...
- Page 11 *UIM – Universal Interface Module. The UIM is a small footprint router protocol translator that acts s a bridge between the VZ-MV802 platform of multiviewers and other third party router, tally and UMD protocols. The UIM can support third-party TCP/IP, UDP as well as serial protocols. The UIM can also act...
- Page 12 Table 11: Timecode Timecode Connector...
-
Page 13: Physical Specifications
Figure 2 - 3 shows the front and back panels of the VZ-M802 Figure 2: VZ-MV802 front panel view Front Panel indicators, connectors and buttons are: Signal presence LED... - Page 14 Figure 3: VZ-MV802 rear panel view Rear Panel indicators, connectors and buttons are: For HDMI output up to 2048x1080 @30ft (10 meters). DVI-I’s: Input for video (auto-detect HDMI (with adapter), DVI, VGA (with adapter). BNC’s: HD/SD-SDI, and 3G HD-SDI (option)
- Page 15 What’s in the box VZ-MV802 Accessories / Models Hardware Power Cord (North America Only) VGA to DVI-I Adaptor RJ-50-DVI Adapter RJ-50HDMI DC Redundant Power Supply SCSI-DB9 GPI/Audio Cable RJ45-DB9 RS232 Cable RJ50-DB9 GPI I/O Cable CD - VZ Commander, User Manual...
-
Page 16: Installation
INSTALLATION Mechanical Installation: VZ-MV802 can be installed in a standard 19” rack using the proper screws and washers (not included). VZ-MV802 modules are shipped with rack ear. These accessories are not installed to ensure proper shipment. First locate them in the accessories box and then install them. -
Page 17: Power Connection
Power Connection: Connect the AC power cord to the rear panel AC receptacle-. The VZ-MV802 - includes a Universal power supply for 90V to 250V operation, and DC redundant power supply... -
Page 18: Operation
OPERATION Powering Up There is no power switch on the VZ-MV802 Multiviewer. Plugging in the power cord will turn on the Multiviewer. Unplugging the power cord will turn off the Multiviewer. Connection / Indicator / Button Descriptions • 8 DVI-I connectors for auto-detect high resolution inputs •... - Page 19 Optional Hardware • Unbalanced Analog audio inputs (16 inputs per video processing card) • Unbalanced AES audio inputs(8 inputs per video processing card) • Balanced Analog audio inputs (16 inputs per video processing card) • Balanced AES audio inputs(8 inputs per video processing card) •...
-
Page 20: Appendix A: Connectors
APPENDIX A: CONNECTORS BNC Inputs: • 4 X BNC Connector (option) • Auto Detection for SDI and CVBS signal Figure 6: 75 ohm BNC Connector • SCSI Connector for Audio and GPI/O • 8 GPIO • 8 AES • 16 Analog audio •... - Page 21 Figure 6: 68 pin SCSI Connector Pin # Function AES#4 AA #05 AES #2 GPIO GPIO GPIO GPIO GPIO GPIO GPIO GPIO...
- Page 22 HDMI Output Connector: HDMI Input Connector Pin # Function Clk+ Clk- Data 2+ Data 1- Data 1+ Data 2- Data 0+ Data 0-...
- Page 23 RS232 RJ45 Connector: • 1 pin for Tx • 1 pin for Rx • 3 pins for 5V power • 3 pins for GND Pin # Function GPI I/O: • RJ-50 defined GPI I/O • 8 pins GPI I/O • 1 power alarm •...
- Page 24 Figure 9: GPI-IN Wiring diagram. Connect this terminal block to the RJ50 to DB9 cable shown in Figure 10.
- Page 25 Figure 10: GPI-OUT Wiring diagram. Connect this terminal block to the RJ50 to DB9 cable shown in Figure 10. Note: All LED are standard LED’s, all resistors are 150 ohms...
-
Page 26: Appendix B: Redundant Power Supplies
APPENDIX B: REDUNDANT POWER SUPPLIES • nput: Universal 100-240 VAC / 47-63 HZ input, without any slide switcher output: 12V / 0~5A • Case Dimension: 120L X 60W X 38 H MM • Efficiency: 78% is typical • Safety: UL/CUL/GS/PSE/BSMI •... - Page 27 Operational & Environmental Performance: Temperature Range Operating 0 OC~C +40 OC Storage ~ 20 OC~C +60 OC Humidity Range (non-condensing) Operating OPERATING 20%~ 80% RH Storage STORAGE 10%~ 90% RH Cooling should operate without fan MTBF: 50000 HOURS Min: 25OC FULL LOAD MECHANICAL WEIGHT: 320g CABLX- TYPE UL 1185 18AWG...
-
Page 28: Contact Viewz
CONTACT VIEWZ. For troubleshooting, support and service, as well as upgrades, please contact: Phone: +1 714 996 1177 Email: rma@viewzusa.com ViewZ 177 W. Orangethorpe Ave, Placentia, CA 92870 USA Phone: +1 714 996 1177 Fax: +1 714 996 1138 Email:rma@viewzusa.com...
