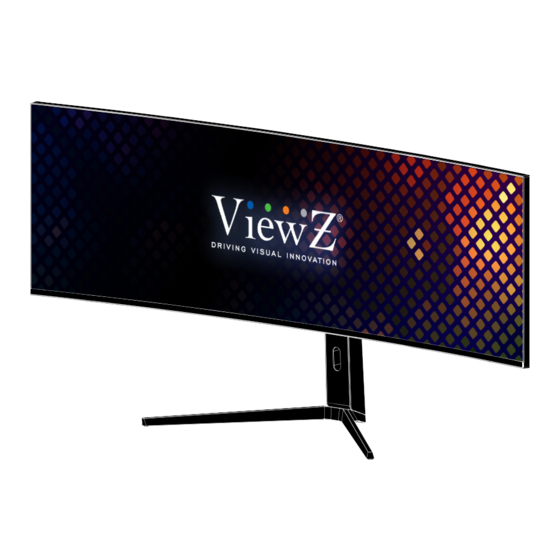

- Page 1 VZ-CGM SERIES 49" CURVERD CCTV LED MONITOR USER MANUAL Please read this manual thoroughly before use, and keep it handy for future reference. 12052022-Rev. A...
-
Page 2: Table Of Contents
2. Stand Installation ....................................3. Interface, Resolution & Refresh Rate ............................Function .......................................... 1. Monitor Control Function ................................2. OSD Control and Function ................................Specification ........................................Trouble Shooting ................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids such as vases shall be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 5 While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 6: Fcc Rf Interference Statement
If some company or product trademark is not particularly stated, the use of trademark has been fully recognized. Do not alter, decompile, disassemble, decode or conduct reverse engineering to the software installed in the product, or it can be deemed as breach of the law. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 7: Installation
Automatic Screwdriver Phillips & Flathead Screwdriver Bit Assembly Components - provided Your ViewZ monitor is shipped with all proper installation hardware and components. If there are parts missing and/or damaged, please stop the installation and contact ViewZ USA at (888)-998-4399. -
Page 8: Features
Any and all product names, model names, labels, or company names used in this manual are the trademarks and registered trademarks of ViewZ. • If you have any advice or question related to this manual, please contact our dealer, re-seller or our customer service representatives. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 9: Stand Installation
Attention! Wall mount (VESA 100x100) allows you to mount this monitor on the wall. The wall mount bracket is not included and if you want to install the monitor on the wall, refer page 7 or contact to ViewZ (1-714-996-1177). -
Page 10: Interface Resolution & Refresh Rate
Display Port (1.4) In 5120 x 1440 60Hz USB (Type C) In 5120 x 1440 60Hz HDMI (2.1) In 5120 x 1440 60Hz 1) USB Type C - Video & PD65W Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 11: Function
4. Press the ◄ / ► buttons to select the desired sub-MENU & change the value you wish to adjust. ● (POWER/ENTER)' 5. Press the button for 3 seconds to turn on & off the monitor. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 12: Osd Control And Function
Press ◄ / ► button to change input source and then press 'MENU' button to select input source. If you connect any input source, monitor will display current input source resolution and frequency. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 13 M /◄/► MOVE & ADJUST MENU(M) SELECT FUNCTION VALUE BRIGHTNESS Adjust the brightness 0 ~ 100 0 ~ 100 CONTRAST Adjust the contrast Set the dynamic contrast ratio mode ON / OFF User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 14 1) To set custom color temperature (R,G,B values), select "USER" to set color temperature. Keep pushing 'Down' button on the monitor or the remote controller, then you will see Red, Green and Blue option Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 15 LOW / MIDDLE / HIGH / OFF SUPER RESOLUTION Set the super resolution LOW / MIDDLE / HIGH / OFF Dynamic Luminance Set the dynamic luminance control ON / OFF Control User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 16 MOVE & ADJUST MENU(M) SELECT FUNCTION VALUE MUTE Set the sound on / off ON / OFF VOLUME Adjust the volume 0 ~ 100 AUDIO SOURCE Select the audio input TYPE-C, DP, HDMI Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 17 Set the size of PIP screen Small, Medium, Large PIP POSITION Set the position of PIP screen Top Right, Top Left, Bottom Left, Bottom Right, Mid SWAP Switch the PIP sources User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 18 Adjust the vertical OSD position 0 ~ 100 0 ~ 100 OSD TRANSPARENCY Set the OSD menu background OSD TIMEOUT Set the OSD display time 0 ~ 100 OSD ROTATION Adjust the OSD rotation Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 19 Set the HDR (on HDMI 2.0) ON / OFF FLICKER FREE Set the flicker free ON / OFF FIRMWARE UPDATE Run the firmware update RESET Reset the monitor settings to the factory default User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 20: Specification
Electrical Ratings DC 24V (AC100 ~ 240V (50/60Hz) ) / 6.25 A Power Consumption ≤ 70 W Accessories Power Adapter x 1, DP Cable x 1, Manual x1, Stand x 1 Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 21: Trouble Shooting
At start input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. - Make sure the cable is correctly plugged into the outlet. - Make sure the power cable is correctly plugged into the monitor. -
Page 22: Rma
Failure by limited life of parts such as LED lamps and any other consumables. Damaged by using third party power cable, unstable power input and electric shock. * Above information can be changed without notification - please check our website or contact ViewZ representative for the latest RMA service policy. - Page 23 12052022-Rev. A NOTE User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 24: Warranty
What and Who is Covered by this Limited Warranty and for How Long ViewZ USA warrants this product to be free from defects in material and workmanship for 1 year to the original owner of this product. The limited warranty is valid only for the original purchaser of the product.
