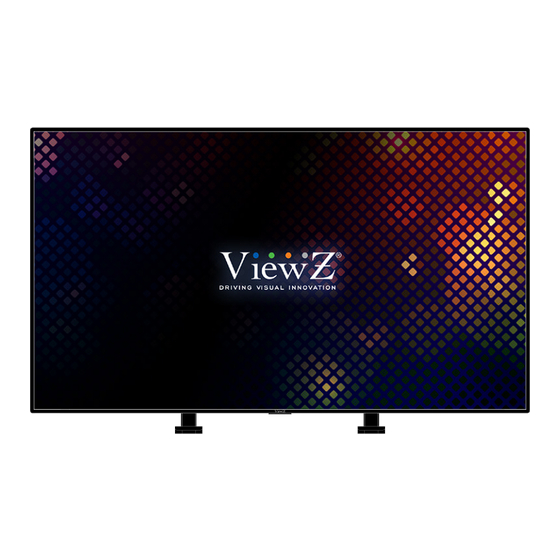

- Page 1 VZ-49, 55 & 65UHD 49", 55" & 65" UHD LED MONITOR USER MANUAL 4K UHD LED Monitor Please read this manual thoroughly before use, and keep it handy for future reference. 04152024-Rev. B...
-
Page 2: Table Of Contents
1. Remote Function ....................................2. Monitor Button Function ................................3. OSD Control and Function ................................4. Media Player ......................................RS232 Command ......................................Mounting Guide ......................................Specification ........................................Trouble Shooting ................................................................................Warranty ........................................Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 3: Safety Instruction
The monitor shall not be exposed to dripping or splashing and objects containing liquids such as vases shall not be placed near the monitor. The monitor should have ample distance (e.g. 10cm) from the wall for sufficient ventilation. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 4: Mark Indication & Substance
If your monitor does not operate normally – in particular, if there is any unusual sound or smell coming from the monitor – unplug it immediately and contact an authorized dealer or the service center. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 5 While most pixel faults occur in isolated regions, a cluster of dead pixels or sub-pixels can sometimes form for which a separate ruling applies. A cluster is defined as an area of 5x5 pixels. ViewZ’s policy on pixel failure: either as an isolated fault or in the form of a cluster is outlined on the website: www.viewzusa.com User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 6: Fcc Rf Interference Statement
If some company or product trademark is not particularly stated, the use of trademark has been fully recognized. Do not alter, decompile, disassemble, decode or conduct reverse engineering to the software installed in the product, or it can be deemed as breach of the law. Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 7: Rohs Compliance
When you will not use this product anymore or warranty is expired, please dispose / send this product to the qualified recycling station near your area. It is ordered / regulated by the Regulation on Recycling and Disposal of Waste Electrical and Electronic Products. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 8: Installation
Remote Controller (Qty 1) M4 x L10 Screws (Qty 6) Mounting Option VZ-43, 55 & 65UHD is VESA compliant and compatible with ViewZ monitor mounts. For more information, please contact ViewZ USA at (888)-998-4399. Compatible ViewZ Wall Mount • Part # WM71 •... -
Page 9: Stand Installation
- tighten provided screws (M8 x L15mm) into the holes. Attention! VZ-49UHD, VZ-55UHD & VZ-65UHD: User must use 6 * M8 x L15 mm screws (each side use 3 pieces) to assemble this monitor and the stand. WARNING ! If the user uses longer screws than M8 x L15 mm, it may damage the unit. -
Page 10: Interface
Interface Input Source Max Resolution Refresh Rate HDMI ( Ver. 2.0) 3840 x 2160 60Hz HDMI ( Ver. 1.4) 3840 x 2160 30Hz DP ( Ver. 1.2) 3840 x 2160 60Hz Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 11: Function
7. Press the BACK button to exit & save adjustment value on sub MENU 8. Press the MUTE button to mute audio - audio only works with a selected input source User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 12: Monitor Button Function
7. Press the MENU button to exit the sub MENU and go back to the main MENU 8. Press the MENU button to exit the OSD MENU Visit the ViewZ USA website at https://www.viewzusa.com User Manual... -
Page 13: Osd Control And Function
Press ◄ / ► button to change input source and then press button to select input source on remote controller. Detect Source Signal Message If user connects any input source, ViewZ UHD series monitor will display current input source resolution and frequency. User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 14 Press the ◄ / ► buttons (on monitor) to adjust volume on the monitor. Press the buttons (on remote controller) to adjust volume on the monitor. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 15 Provide enhanced contrast and sharpness CONTRAST Adjust the contrast level 0 ~ 100 (default: 50) 0 ~ 4 (default: 2) SHARPNESS Adjust the sharpness level CLONE Turn on / off clone mode User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 16 Adjust the hue level 0 ~ 100 (default: 50) SATURATION Adjust the saturation level 0 ~ 100 (default: 50) Adjust the PCM level sRGB / Adobe RGB / User / Native Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 17 INPUT Select the input source DP1 / DP2 / OPS / MEDIA HDMI 1 / HDMI 2 1) User can select the input source for PIP, PBP, 4P & Full sceen User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 18 Select the audio output source Analog / DP1 / DP2 / OPS / MEDIA / HDMI 1 / HDMI 2 1) Available on the mode of 2P LR, 2P TB, 2P PIP & 4P Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 19 TRANSPARENCY Set the OSD transparency 0 ~ 200 (default: 0) Apply user selected values Red (ON/OFF), Green (ON/OFF), Blue (ON/OFF) ROTATE Rotate the OSD 0O / 90O / 180O / 270O User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 20 OSD. After selecting a mode, user can select the input source for each region at OSD / Input (refer to page 17). If no source is assigned to each section, the monitor will show 'No Signal' sign. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
-
Page 21: Media Player
Displays image files from the USB or internal storage MUSIC Plays music files from the USB or internal storage FOLDER Copy, save, rename and search the file and folder SETTINGS Change the setup of media player User Manual Visit the ViewZ USA website at https://www.viewzusa.com... - Page 22 (on remote controller) to go back to the home screen of media play. 10. Press the button (on remote controller) to open the Media OSD MENU. 11. Press the button (on remote controller) to turn off/on the Media Play. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 23 (on remote controller) to go back to the home screen of media play. 9. Press the button (on remote controller) to open the Media OSD MENU. 10. Press the button (on remote controller) to turn off/on the Media Play. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 24 (on remote controller) to go back to the home screen of media play. 10. Press the button (on remote controller) to open the Media OSD MENU. 11. Press the button (on remote controller) to turn off/on the Media Play. Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 25 *Note: If you select a file, a selected file (movie, music or picture) can be played. 3. Select a file or folder, press the button to copy, delete, rename and paste a file or folder. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
- Page 26 Rotate the screen 0O / 90O / 180O / 270O AUTOPLAY Set the autoplay of Media Play contents OFF / MOVIE / MUSIC / PICTURE / Movie&Picture / Picture&Music (default: OFF) Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 27 STORAGE VZ-UHD series monitor has 5GB of internal memory space. RESTORE DEFAULT SETTINGS Reset the media play settings to the factory default YES / NO VERSION Check the media play version User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 28: Rs232 Command
Stop bit : 1 bits RS 232 input RS 232 output • RS 232 input #1 - RX #3 - Ground • RS 232 output #3 - Ground #8 - TX Visit the ViewZ USA website at https://www.viewzusa.com User Manual... - Page 29 RS232 command: 53 47 01 03 03 A1 HDMI2 RS232 command: 53 47 01 03 04 A2 Media RS232 command: 53 47 01 03 05 A3 The above commands are hexadecimal. User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 30: Mounting Guide
VZ-49,55&65UHD monitors are suitable for universal wall mounting (not included). M6 x L14 screws for VZ-49UHD, VZ-55UHD, VZ-65UHD 1. VZ-49UHD : Universal Wall Mount (VESA) 400mm x 400mm 2. VZ-55UHD : Universal Wall Mount (VESA) 400mm x 400mm 3. VZ-65UHD : Universal Wall Mount (VESA) 400mm x 400mm... -
Page 31: Specification
CE / FCC / KC / RoHS Electrical Ratings AC 100-240V, 50/60Hz Power Consumption ≤ 160 W ≤ 170 W ≤ 240 W Accessories AC 110V Power Cable x1, User’s Manual x1, Remote Controller x1, Stand x1 User Manual Visit the ViewZ USA website at https://www.viewzusa.com... -
Page 32: Trouble Shooting
At start the current input source. If symptom persists, follow the instructions below. After following the instructions below, please contact us at 1-888-99-VIEWZ. - Make sure the cable is correctly plugged into the outlet. - Make sure the power cable is correctly plugged into the monitor. -
Page 33: Rma
Failure by limited life of parts such as LED Lamps and any other consumables. Damaged by using third party power cable, unstable power input and electric shock. * Above information can be changed without notification - please check our website or contact ViewZ representative for latest RMA service policy. - Page 34 04152024-Rev. B NOTE Visit the ViewZ USA website at https://www.viewzusa.com User Manual...
- Page 35 04152024-Rev. B NOTE User Manual Visit the ViewZ USA website at https://www.viewzusa.com...
-
Page 36: Warranty
What and Who is Covered by this Limited Warranty and for How Long ViewZ USA warrants this product to be free from defects in material and workmanship for 3 years to the original owner of this product. The limited warranty is valid only for the original purchaser of the product.
