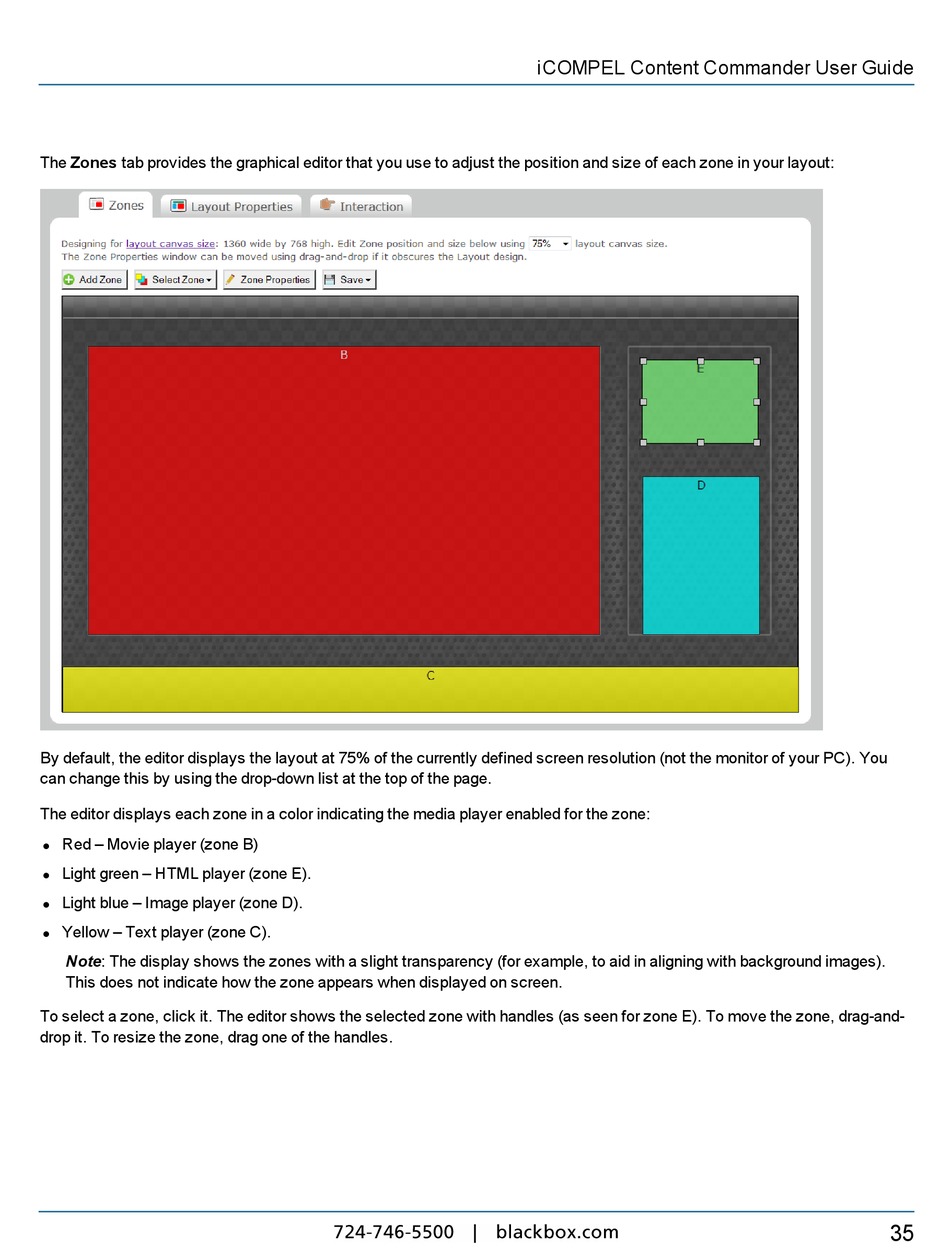

The Zones tab provides the graphical editor that you use to adjust the position and size of each zone in your layout:
By default, the editor displays the layout at 75% of the currently defined screen resolution (not the monitor of your PC). You
can change this by using the drop-down list at the top of the page.
The editor displays each zone in a color indicating the media player enabled for the zone:
Red – Movie player (zone B)
l
Light green – HTML player (zone E).
l
Light blue – Image player (zone D).
l
Yellow – Text player (zone C).
l
Note: The display shows the zones with a slight transparency (for example, to aid in aligning with background images).
This does not indicate how the zone appears when displayed on screen.
To select a zone, click it. The editor shows the selected zone with handles (as seen for zone E). To move the zone, drag-and-
drop it. To resize the zone, drag one of the handles.
