9.2 sInGle UnIT ConfIGURaTIons

As shown in the figures below, the coverage angle of a single KH7 can be digitally adjusted along
the axis of the four loudspeakers . Along this axis, KH7 behaves like a line array and can be digitally
steered since each loudspeaker is controlled by a dedicated DSP channel of the amplifier (see Chapter
10).

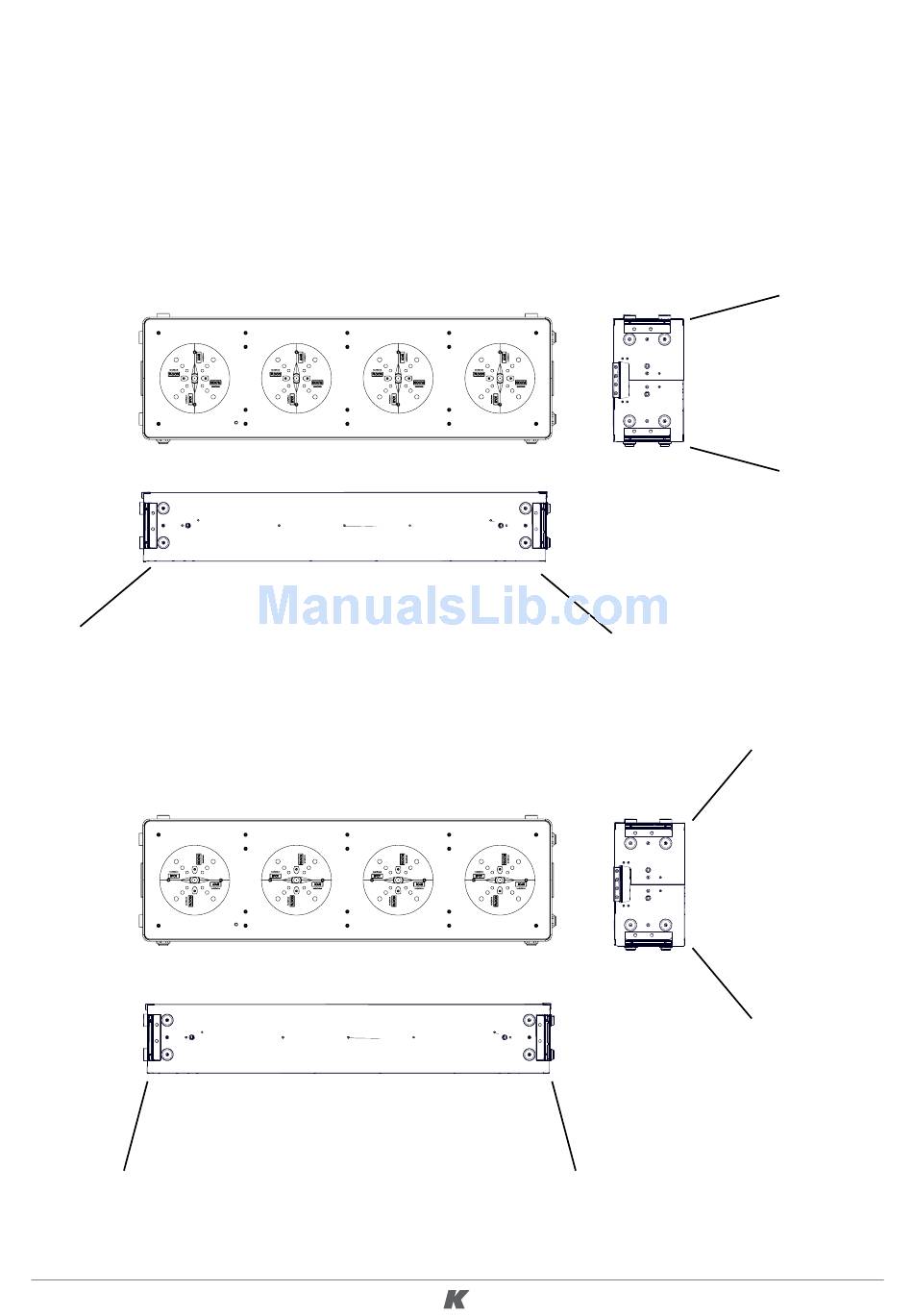

A horizontal KH7 with vertically oriented horns
Coverage 100° + digital adjustment
A horizontal KH7 with horizontally oriented horns
FLOOD
SPOT
Coverage 30° + digital adjustment
Ver. 1.2
SPOT
Coverage 30°
FLOOD
Coverage 100°
