KH7

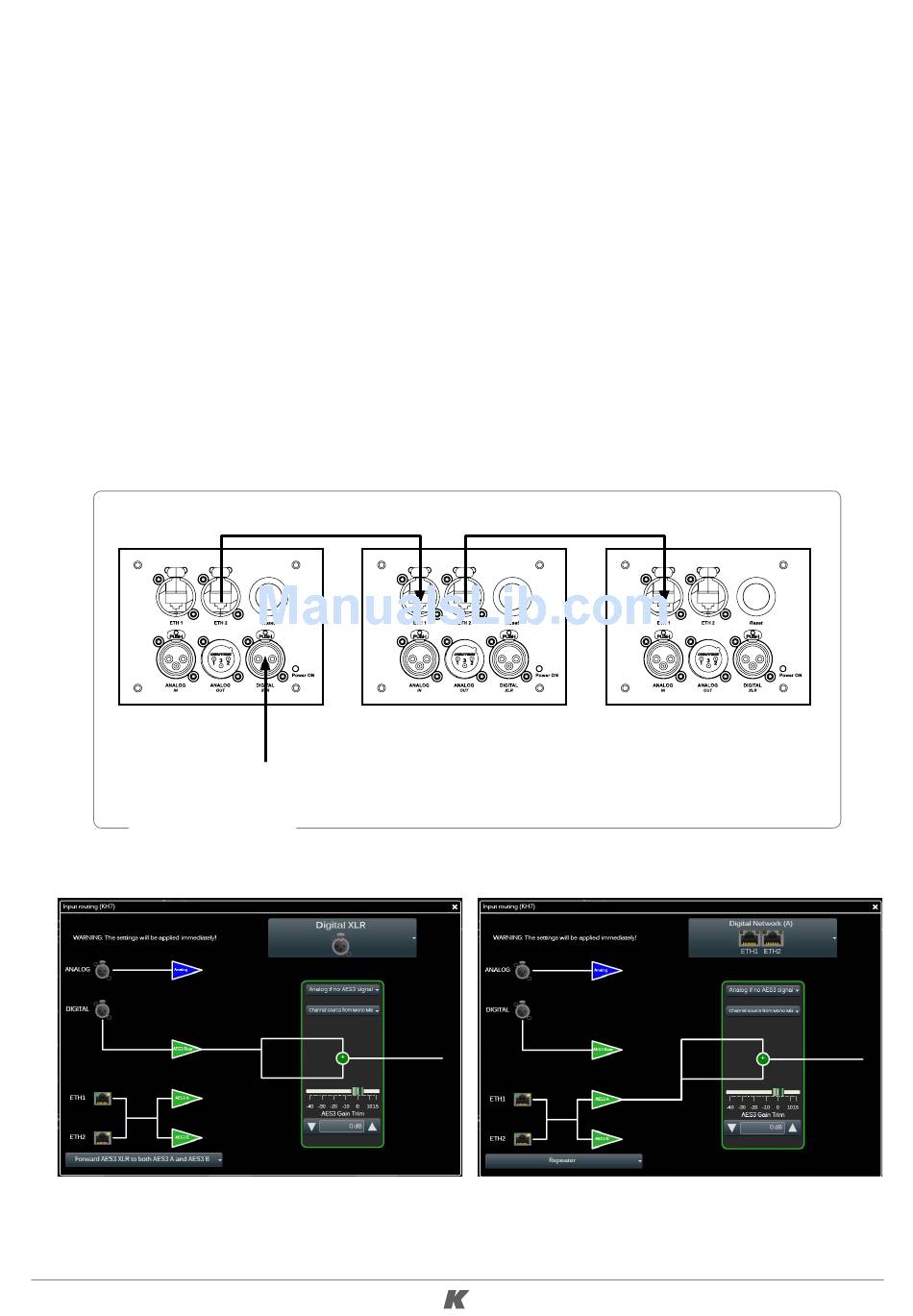

8.2 aes/ebU vIa XlR

If you want to connect your digital source to the first KH7 by XLR instead of via the Ethernet, follow the
instructions below:
1. Connect the AES/EBU signal by Digital XLR on the audio/data panel of the first KH7 unit in the chain.
This unit will behave as the Forwarder module for the digital signal.
2. In the Forwarder module, connect one Ethenet port (choose either Port 1 or Port 2) on the audio/
data panel with the Ethernet cable to the next KH7 unit that will behave as a Repeater of the AES/
EBU signal.
3. Continue the wiring until you close the chain.
4. Set the AESOP preferences (which module is a Repeater or a Forwarder) via Armonia in the Input
Routing Window. By default, every unit is set as a Repeater, so adjust the preferences on the
Forwarder module only.
FORWARDER
AES/EBU via XLR
Forwarder configuration
Ethernet cable
REPEATER
Digital XLR
Ethernet cable
REPEATER
Repeater configuration
Ver. 1.2
13
