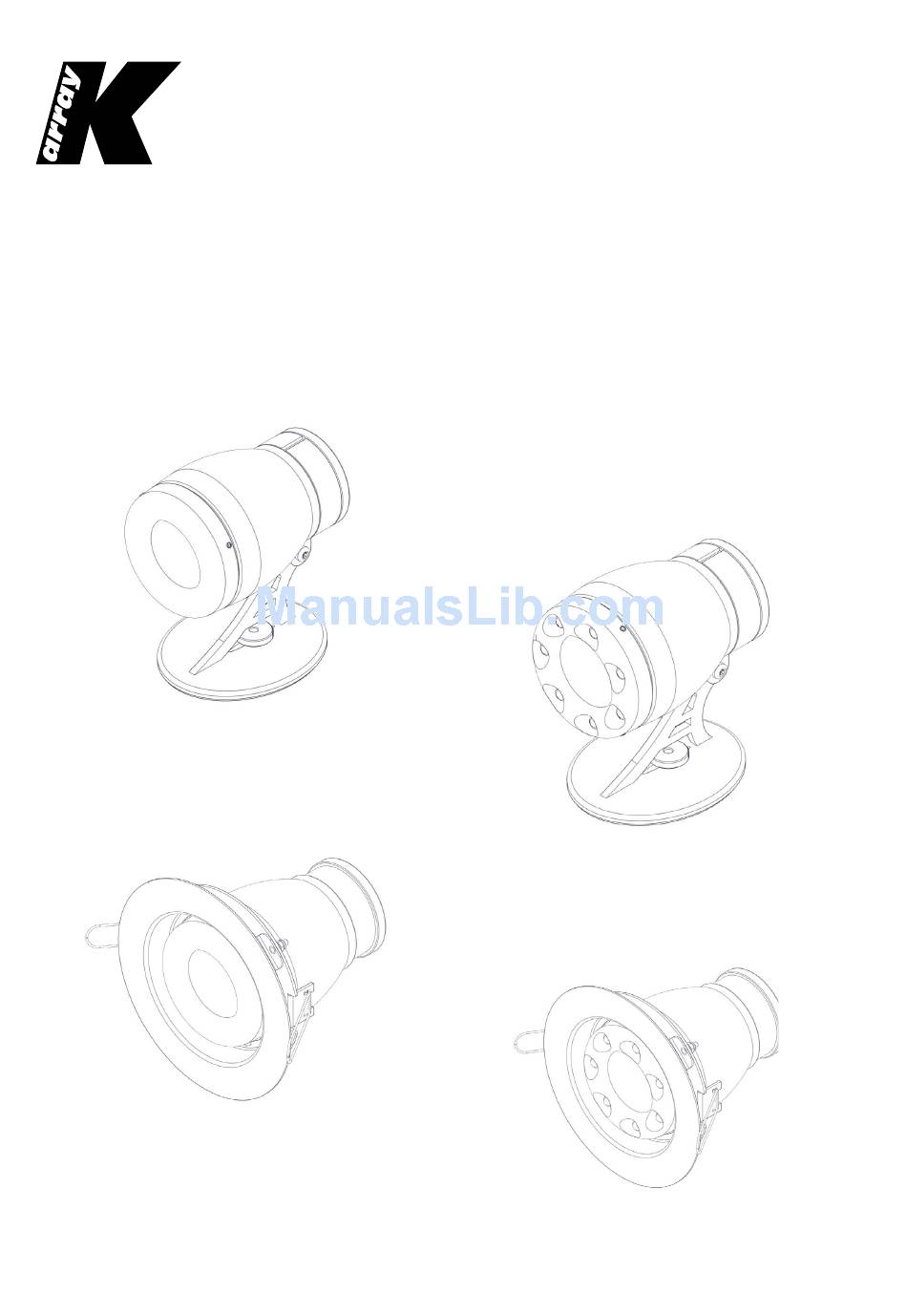

Ver. 2.3
Tornado
KT2 - KT2C
KTL2 - KTL2C

USER GUIDE

English
KT2
KTL2
KT2C
KTL2C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tornado KT2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for K-array Tornado KT2

  • Page 1: User Guide

    Ver. 2.3 Tornado KT2 - KT2C KTL2 - KTL2C USER GUIDE English KTL2 KT2C KTL2C...
  • Page 2: Table Of Contents

    Ver. 2.3 KT2 - KT2C - KTL2 - KTL2C TABLE of CoNTENTS SYMBoLS ................3 1. INTRoDUCTIoN ..............4 2. KEY fEATURES ..............4 4. APPLICATIoNS ............... 4 3. oPTIoNAL fEATURE ............... 4 5. SAfETY INfoRMATIoN ............5 6. UNPACKING ................. 5 7.
  • Page 3: Symbols

    Ver. 2.3 KT2 - KT2C - KTL2 - KTL2C SYMBoLS K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! WEEE Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment.
  • Page 4: Introduction

    In addition to the standard features of the Tornado loudspeakers, the KTL2 and KTL2C have 7 integrated RGB LEDs that can be controlled thanks the wide range of K-array accessories via DMX or by remote. With its ability to effortlessly reproduce speech, music and lighting, it is an excellent choice for fixed applications such as theatres, museum displays, restaurants, portable systems for corporate AV presentations, department stores, and in hidden locations such as chancel steps in houses of worship.
  • Page 5: Safety Information

    6. UNPACKING Each K-array amplifier is built to the highest standard and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new amplifier. If you find any damage, immediately notify the shipping company.
  • Page 6: Included Accessories

    Ver. 2.3 KT2 - KT2C - KTL2 - KTL2C 7. INCLUDED ACCESSoRIES KT2C KTL2 KTL2C • • 1 x M5 turned steel thumb nut 1 x M5 turned steel thumb nut • • 1 x 4-pin Phoenix connector 2 x 4-pin Phoenix connector •...
  • Page 7: Rear Panel And Wiring

    Ver. 2.3 KT2 - KT2C - KTL2 - KTL2C 9. REAR PANEL AND WIRING KT2 - KT2C KTL2 - KTL2C 4-pin audio input connector 4-pin light controller connector 32Ω Wiring Light Controller Wiring 2- 2+ 1- 1+ 2- 2+ 1- 1+ R G B V+ to (-)pin of the Amp to negative DC power for...
  • Page 8: Installation

    Ver. 2.3 KT2 - KT2C - KTL2 - KTL2C 10. INSTALLATIoN KT2 - KTL2 6 mm 0.24” KT2C - KTL2C 105 mm 4.13” plaster board or ceiling tile...
  • Page 9: Accessories

    Ver. 2.3 KT2 - KT2C - KTL2 - KTL2C 11. ACCESSoRIES ..iD you know that Designed as passive speaker, the new Tornados can be easily converted into self-powered devices by inserting the KA1-T2H amplifier module. KA1-T2H Amplifier module for Tornados (32 W) 15 W power supply K-AL15 for 1 KA1-T2H (in background music or speech applications)
  • Page 10: Ka1-T2H Wiring

    Ver. 2.3 KT2 - KT2C - KTL2 - KTL2C 11.1 KA1-T2H WIRING 2- 2+ 1- 1+ B V+...
  • Page 11: Service

    12. SERVICE To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference.
  • Page 12: Specifications

    Ver. 2.3 KT2 - KT2C - KTL2 - KTL2C 13. SPECIfICATIoNS KT2 - KT2C ACOUSTICS TRANSDUCERS 2” Neodymium magnet woofer Power handling 18 W Full range (AES) with 2 x 0.8” voice coils POWER AUDIO INPUT Frequency range 150 Hz – 18 kHz (-10dB) Connector 4-pin Phoenix 8 Ω...
  • Page 13 The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. K-array s.u.r.l. reserves the right to make modifications without prior notice.
