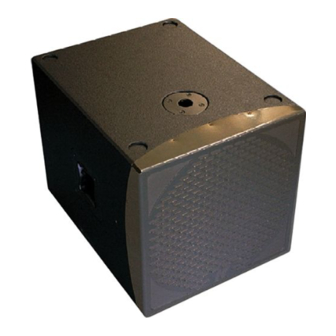

KL18ma

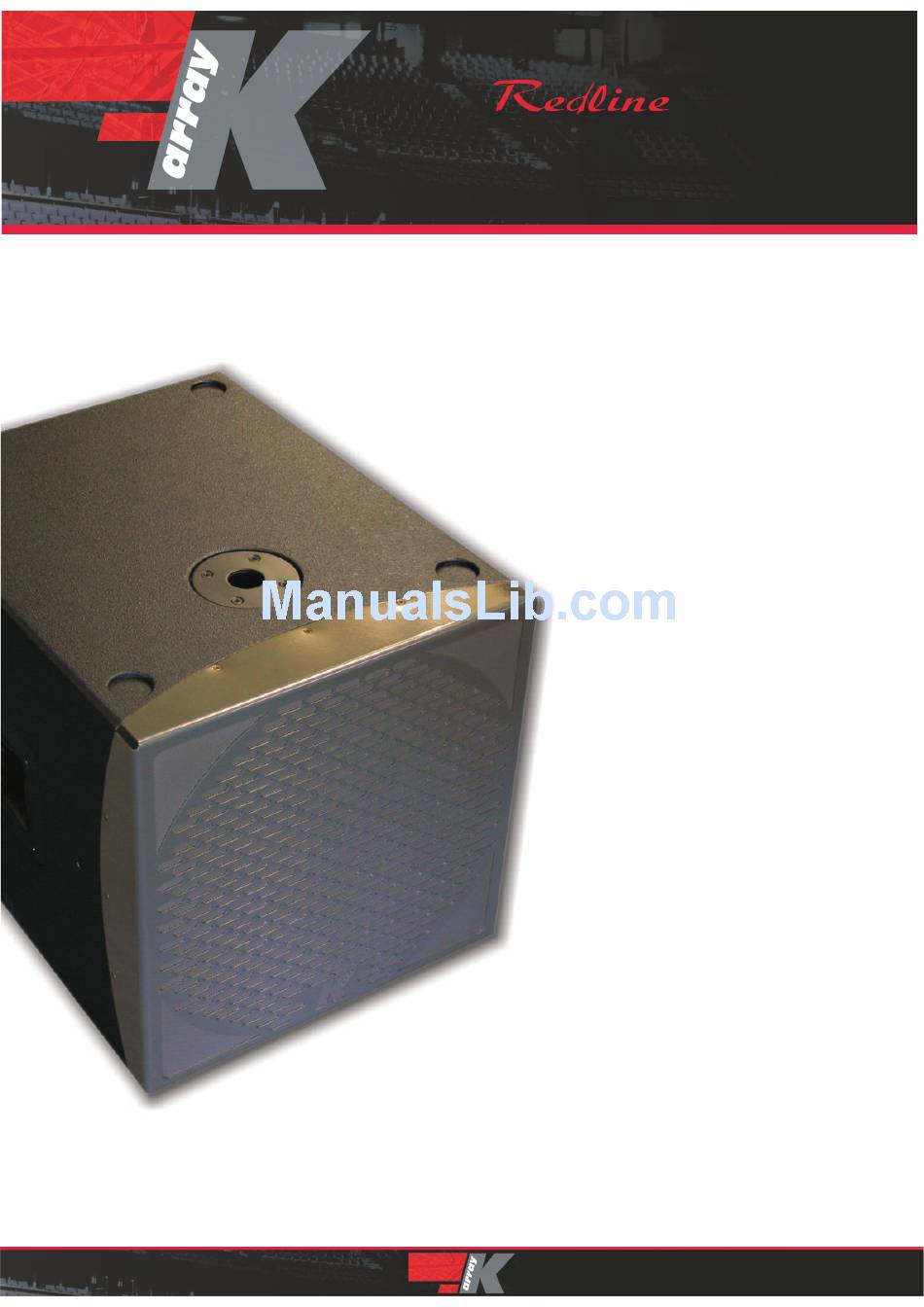

USER'S MANUAL
K-array is the new voice that sings
aloud, "outside the choir", and whose
performance is better than any other
products.
Born on-the-road, in the PA world, where
you get no discount, you have to give your
best as fast as you can, often with a
"compressed" budget, K-Array systems
have been designed to give precise
answers to precise needs.
Driven by new generation digital engines,
with power/dimension/weight ratios that
are ten times better than any other
professional products, K-arrays can
deliver the full spectrum of musical styles
with clarity, power, punch, intelligibility
and evenness across both volume levels
and the frequency spectrum. These
systems can be remotely controlled and
come with a sophisticated on-board
software, allowing the user to shape their
performance to taste and needs. Inside
K-array systems you will find something
that only we can offer: the best in
technology, proudly conceived, designed
and produced in Italy. If they were cars,
they would be Ferrari. Don't agree to pay
for a simple brand, claim performance,
and don't believe those who maintain that
these products are only for few people,
the only truth is that K-array systems are
unique, but affordable and within
everybody's reach!
HP Sound Equipment s.r.l.
USER'S MANUAL
ENGLISH
REV. A
Advertisement
Table of Contents
Related Manuals for K-array Redline KL18ma
Summary of Contents for K-array Redline KL18ma
- Page 1 Ferrari. Don't agree to pay for a simple brand, claim performance, and don't believe those who maintain that these products are only for few people, the only truth is that K-array systems are unique, but affordable and within everybody's reach! HP Sound Equipment s.r.l.
-
Page 2: Safety Instructions
SYMBOLS Wa r n i n g ! D a n g e r o u s This device complies with This symbol, wherever it appears, alerts you to voltages: risck of electric Restriction of Hazardous important operating and maintenance istructions in schock. -
Page 3: Voltage Requirements
All the components are designed by K-array R&D department and custom made under K-array control quality system. 3. VOLTAGE REQUIREMENTS KL18ma operates safely and without audio discontinuity if the AC voltage stays within either of two operating windows: 95-125 (voltage selector on 115 V) or 195-250 V (voltage selector on 230 V), at 50 or 60 Hz. -
Page 4: Amplifier Panel
4. AMPLIFIER PANEL Balanced XLR In \ Out parallel LINK INPUT (parallel) (balanced) LIMIT PUSH Input pad level INPUT ANALOG GROUND LIFT Ground lift switch RS485 connection Preset change button WARNINGS: for remote control To ensure correct operation, Keep it pressed 10sec. allow at least (don't connect to to store preset as default... - Page 5 5. PHYSICAL 46.5 cm 58.5 cm KL18ma 46.5 cm WEIGHT 20 Kg 7 cm KR200 WEIGHT 9 Kg 200 cm Open and lock the KR200 satellite before installing on the KL18ma. Warning 100 cm Pay attention when closing the KR200 satellite, do it slowly and watch your hands! USER'S MANUAL ENGLISH...
-
Page 6: Dsp Control & Remote Control
6. DSP CONTROL & REMOTE CONTROL A powerful DSP manages all the functions of the speakers. Each system can store on board 16 preset that can be recalled pushing the PRESET button. Once the preset will appear on the lower line of the display it will become automatically available after few seconds. -
Page 7: Remote Control Software
7. REMOTE CONTROL SOFTWARE 1 . To connect the K-array modules to a PC, it is needed a RS485-USB adapter, we recommend the K-USB adapter (pic.1). K-USB USB to RS485 adapter Connect the K-usb to a PC and install the drivers required included in the CD-ROM. - Page 8 3 . ID setting Pressing this button you can have a On this bars you can see all the refresh of the modules connected. modules connected in your net. ID X 10 FROM PC D X 1 PRESET SELECTOR ADDRESS ID 39 cbClear PRESET IN USE...
- Page 9 Module status panel Store the active preset to default Preset names, you can change it when restart the module from the area on the right Select the preset number, write Module details Mute Module t h e n a m e , m a x i m u m characters, press the Send With this button, you can load presets from PC to the...
- Page 10 6. Preset groups On the Preset Groups window, you can manage the modules Presets as groups, up to 4 different. Choose the modules from the list on the right Press the right arrow of the group that you prefer, to add the modules Select the number of the preset you want to choose, after press Change button 6.2 It is possible to assign names to the groups, just writing in the fields.
- Page 11 8. Master Mute control It is possible to Mute all the modules connected just pressing Master Mute button. To protect from accidental pressing of this button, you will need to Unlock by pressing the Unlock button below it. 9. Exit option When you choose to exit from the software, will appear an alert window that alert you about Unmuting all the modules connected, this is important because the Mute function is controlled only by software.
-
Page 12: Technical Data
8. Amplifier wattage rating is based on the maximum unclipped burst sine wave RMS voltage that the amplifier will produce into the nominal load impedance . HP Sound Equipment s.r.l. - www.k-array.com Viale Roma 7/i 50037 San Piero a Sieve (Firenze) Italy - tel +39 055 8487222 fax +39 055 8487238 e-mail: info@k-array.com... - Page 13 9. PRESETS Clear Smooth Tony Back Dark HP60 Disco Live Li-6 (Live -6dB Sub) Cl-3 (Clear - 3dB Sub) Li-3 (Live -3dB Sub) To-3 (Tony -3dB Sub) To-6 (Tony -6dB Sub) Cl-6 (Clear - 6dB Sub) USER'S MANUAL ENGLISH pag.13 REV.
- Page 14 NOTES USER'S MANUAL ENGLISH pag. 14 REV. A...
- Page 16 Hp Sound Equipment s.r.l. reserves the right to make modifications without prior notice. www.k-array.com HP Sound Equipment s.r.l Viale Roma 7/i 50037 San Piero a Sieve (Firenze) Italy tel +39 055 8487222 fax +39 055 8487238 e-mail: info@k-array.com...
