Summary of Contents for K-array KH7
-

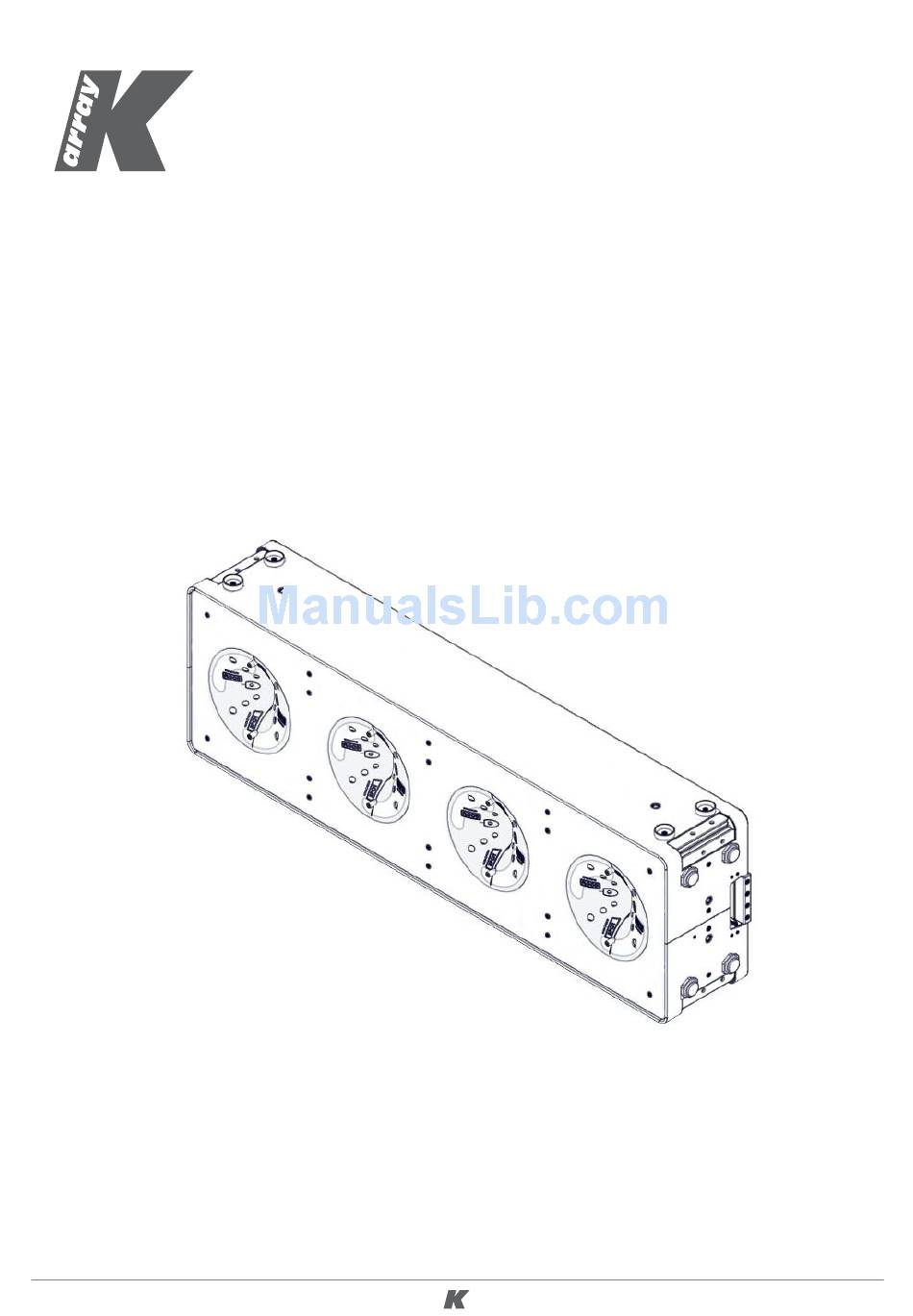

Page 1: User Guide
Ver. 1.2 USER GUIDE English... -
Page 2: Table Of Contents
11. ReMoTe ConTRol - aRMonIa ..........21 12. RIGGInG ................22 ............22 12.1 InsTallInG on a flaT sURfaCe ................. 23 12.2 hanGInG PoInTs ..........23 12.3 sUsPenDInG a ClUsTeR of Kh7 UnITs 13. seRvICe ................24 14. TeChnICal sPeCIfICaTIons ..........25 15. CeRTIfICaTIons ..............26... -
Page 3: Symbols
Ver. 1.2 sYMbols K-array declares that this device is in compliance with applicable CE standards and regulations. Before putting the device into operation, please observe the respective country-specific regulations! Waste Electrical and Electronic Equipment (WEEE) Please dispose of this product at the end of its operational lifetime by bringing it to your local collection point or recycling center for such equipment. -
Page 4: Introduction

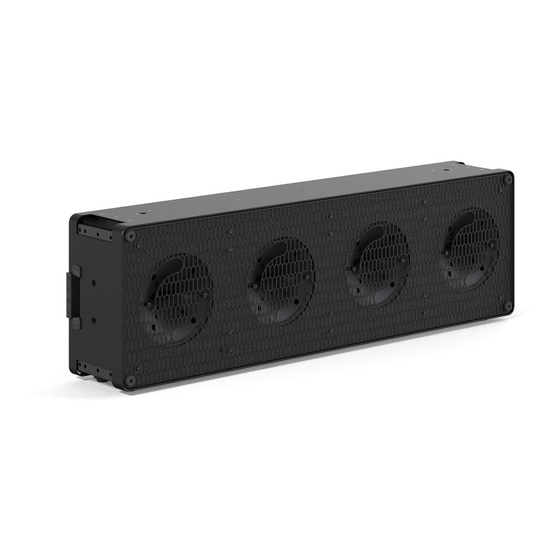

Ver. 1.2 1. InTRoDUCTIon The K-array KH7 speaker is a compact, self-powered, weather resistant, mid-high line array element, complying with the highest standards, both in sound quality and SPL. It features four 12” coaxial neodymium magnet woofers, providing multiple setups, including both vertical and horizontal use, with an exceptional peak output of 141 dB SPL. -
Page 5: Safety Information
Ver. 1.2 4. safeTY InfoRMaTIon Warning: Failure to follow these safety instructions could result in fire, shock or other injury or damage to the device or other property. The lighting flash with arrowhead symbol within an equilateral triangle is intended to alert the This symbol alerts the user to the presence of user to the presence of not isolated, dangerous recommendations about the product’s use and... - Page 6 Ver. 1.2 WARNING • Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 7: Unpacking
5. UnPaCKInG Each K-array speaker is built to the highest standards and thoroughly inspected before leaving the factory. Upon arrival, carefully inspect the shipping carton, then examine and test your new amplifier. -
Page 8: Product Overview
Ver. 1.2 6. PRoDUCT oveRvIew Weight 52 kg (114.6 lbs) -
Page 9: Amplifier
For best performance, voltage drops should not exceed 10% at 100V or 10% at 230V. The minimum electrical service amperage required by a K-array loudspeaker system is the sum of their Maximum Continuous RMS Current. K-array recommends allowing an additional 30% above the minimum amperage... -
Page 10: Protection Circuitry
Ver. 1.2 7.4 PRoTeCTIon CIRCUITRY Both the Power supply and the amplifier sections are equipped with several protection circuits. Power supply protections aim to isolate a faulty section in electrical power system from the rest of the device in order to prevent the propagation of the fault and limit device damages. They comprise overcurrent, overvoltage and thermal protections. -
Page 11: Power And Audio/Data Connection
AC Power Input: PowerCon input connector for AC input AC Power Link: PowerCon output connector for feeding the AC mains power to additional K-array components with a PowerCon AC input socket. Do not link the AC mains power with more than two KH7s (see Section 9.4) -
Page 12: Aes/Ebu Via Ethernet - Kh7-Sigin
In order to connect your digital source to the unit via Ethernet cable, you need the KH7-SIGIN accessory. It is a cable which features a RJ45 connector at one end and three connectors at the other including 2 female XLR connectors (AES/EBU Channel A and Channel B) and a RJ45 connector (Data). -
Page 13: Aes/Ebu Via Xlr
Ver. 1.2 8.2 aes/ebU vIa XlR If you want to connect your digital source to the first KH7 by XLR instead of via the Ethernet, follow the instructions below: 1. Connect the AES/EBU signal by Digital XLR on the audio/data panel of the first KH7 unit in the chain. -
Page 14: Network Connection
8.3 neTwoRK ConneCTIon The KH7 amplifier module can be connected to a PC via a standard RJ45 network port. One port of the first unit is connected to a router or PC, while the other port allows another module to be daisy chained to this unit. -
Page 15: Configurations
9. ConfIGURaTIons 9.1 hoRn oRIenTaTIon KH7 features four loudspeakers, each composed of a 12” woofer coupled to an asymmetric horn which produced a different sound dispersion pattern in respect to its axes. The sound dispersion is wide along the axis labeled FLOOD and narrow along the axis labeled SPOT. -
Page 16: Single Unit Configurations
As shown in the figures below, the coverage angle of a single KH7 can be digitally adjusted along the axis of the four loudspeakers . Along this axis, KH7 behaves like a line array and can be digitally steered since each loudspeaker is controlled by a dedicated DSP channel of the amplifier (see Chapter 10). - Page 17 Ver. 1.2 A vertical KH7 with A vertical KH7 with vertically horizontally oriented horns oriented horns FLOOD SPOT Coverage 100° + Coverage 30° + digital adjustment digital adjustment SPOT FLOOD Coverage 30° Coverage 100°...
-
Page 18: Array Configurations
Ver. 1.2 9.3 aRRaY ConfIGURaTIons Vertical array of a vertical KH7 SPOT Coverage is the number of speakers dependent and digitally adjustable. FLOOD Coverage 100° In this configuration the cluster behaves as a vertical line array. The coverage along the vertical axis... - Page 19 Ver. 1.2 Vertical array of a horizontal KH7 SPOT Coverage is number of speakers dependent and digitally adjustable. FLOOD Coverage 100° + digital adjustment In this configuration the cluster behaves as a matrix of loudspeakers. That allows the user to digitally...
-
Page 20: Digital Steering - Ease Focus
With this capability, each KH7 has an onboard DSP designed to load FIR filters to achieve the best and most accurate steering results. FIR coefficients can be easily calculated with EASE Focus, the most accurate acoustic simulation software available in the market. -
Page 21: Remote Control - Armonia
Ver. 1.2 11. ReMoTe ConTRol - aRMonIa All DSP functions, including system EQ, delay and the loading of FIR filters calculated with EASE Focus, can be controlled with Armonia software. Please refer to Armonia User Guide downloadable from the Powersoft website for detailed instructions. -
Page 22: Rigging
Ensure that the rubber feet are resting on the floor. To place a single unit in vertical position or to ground stack a KH7 cluster, use the accessory shown in the picture below. Up to 3 units can be stacked in horizontal position and up to two units can be stacked in vertical position. -
Page 23: Hanging Points
Ver. 1.2 12.2 hanGInG PoInTs Fasten at least four standard M8 eyebolts to hang a KH7 unit from the dedicated threaded points on the chassis (see the picture). Then use appropriate steel cables sturdy enough to hold KH7’s weight. K-array is not responsible for any rigging equipment and accessories that are not manufactured by K-array. -
Page 24: Service
13. seRvICe To obtain service: 1) Contact the official K-array distributor in your country. Your local distributor will direct you to the appropriate service center. 2) If you are calling for service, please have the serial number(s) of the unit(s) available for reference. -
Page 25: Technical Specifications
New materials and design are introduced into existing products without previous notice. Present systems may differ in some respects from those presented in this catalogue. The contents of this manual are furnished for informational purposes only. K-array s.u.r.l. assumes no responsibility for any errors or inaccuracies that may appear in this manual. K-array s.u.r.l. reserves the right to make modifications without prior notice. -
Page 26: Certifications
Ver. 1.2 15. CeRTIfICaTIons... - Page 27 Ver. 1.2...
- Page 28 Ver. 1.2...
