8.3 neTwoRK ConneCTIon

The KH7 amplifier module can be connected to a PC via a standard RJ45 network port. One port of
the first unit is connected to a router or PC, while the other port allows another module to be daisy
chained to this unit. In this mode, Armonia will be able to control all modules sharing an Ethernet cable
connection.
Ethernet communication requires all IP addresses to be set correctly on the PC and on every connected
module. The KH7 system may be set to assign IP addresses manually or automatically. See Network
Configuration in the Armonia User Guide for further details.
Using an existing LAN (Local Area Network) to exchange data via Ethernet between
the PC and the amplifiers is not good practice. The wiring used for such purpose should

8.4 aC MaIns PoweR lInK

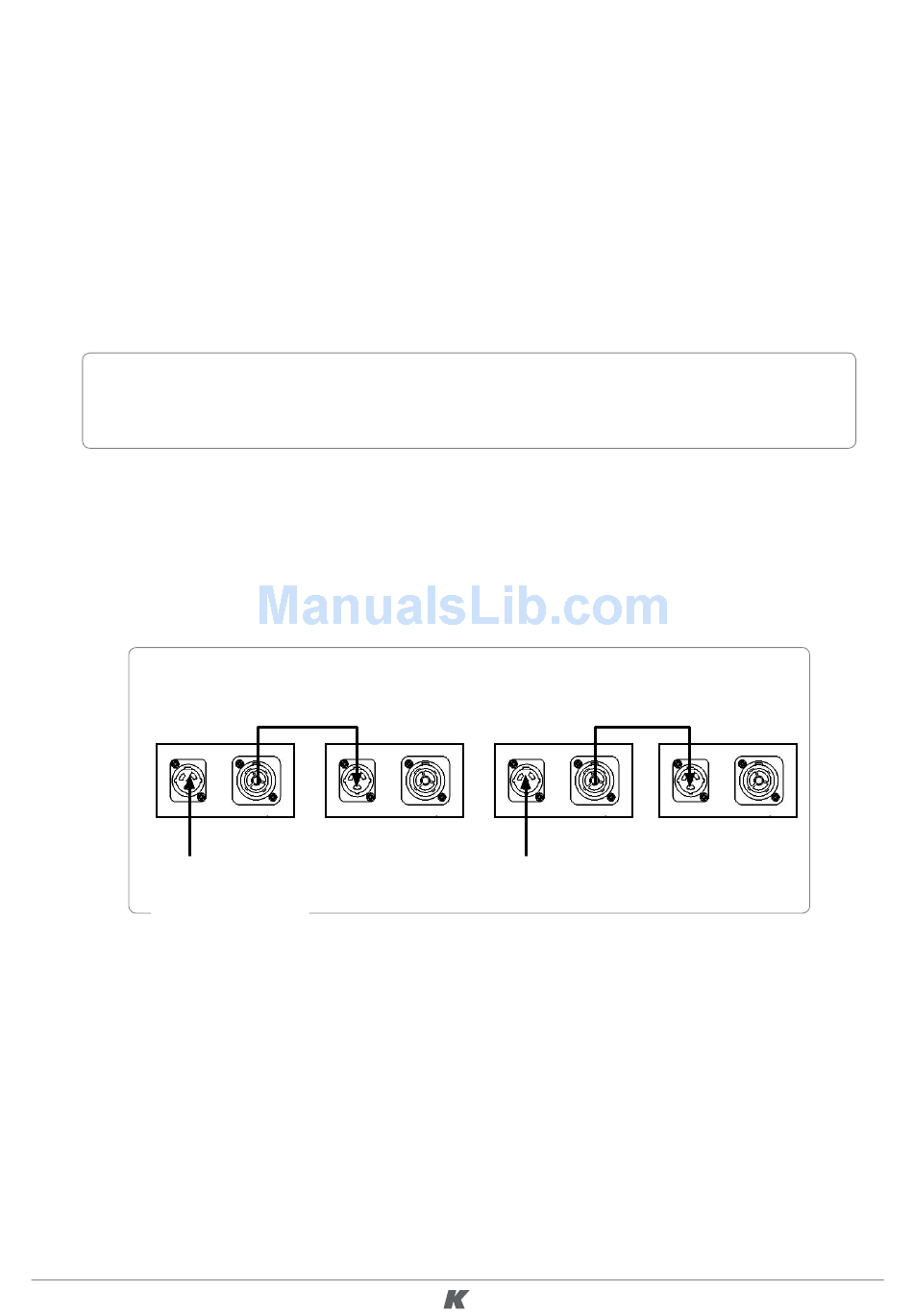

Each KH7 unit features both a PowerCon input connector for AC input and a PowerCon link connector
for feeding AC mains power to another unit.
AC MAINS
AC Mains Link
always be dedicated.
Do not link the AC mains power to more than two KH7 units!
AC MAINS
