AccuLine 40-6640 Service Manual

Self leveling laser marker
Hide thumbs Also See for 40-6640:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual

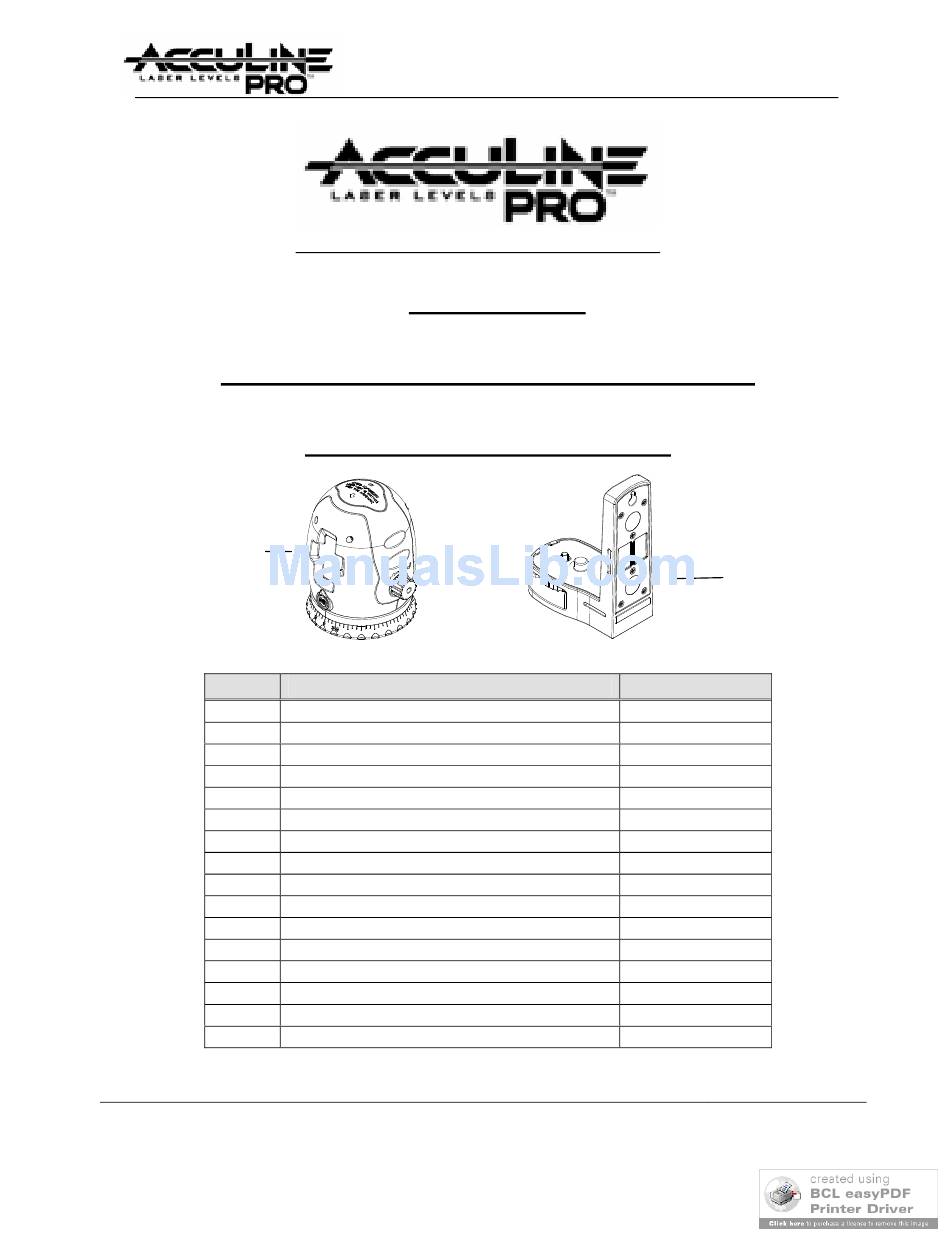

Self Leveling Laser Marker
Main Instrument
Item
1.0
1.1
2.0
2.1
2.2
2.3
2.4
3.0
4.0
4.1
4.2
4.2.1
4.2.2
4.2.3
5.0
6.0
Prepared By: Peter Brandt
40-6640
SERVICE MANUAL
Description
Overall Instrument Assembly
Central Unit Assembly
Component Assembly
Core Module Assembly
Base Plate Module Assembly
Platform Module Assembly
Bracket Assembly
Electrical Connections
Calibration
Checking Accuracy
Calibration Adjustments
Linearity (curvature) error
Oblique error
Height error
Alarm Adjustment
Troubleshooting Guide
40-6640 Service Manual
Page(s)
2 - 8
9 - 15
18 – 23
25 - 26
Version: 08 – 20080415
Bracket
5
9
10
12
15
17
18
19
20
21
23
24
Page
1 of 26

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6640 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AccuLine 40-6640

Summary of Contents for AccuLine 40-6640

  • Page 1 40-6640 Service Manual 40-6640 Self Leveling Laser Marker SERVICE MANUAL Main Instrument Bracket Item Description Page(s) Overall Instrument Assembly 2 - 8 Central Unit Assembly Component Assembly 9 - 15 Core Module Assembly Base Plate Module Assembly Platform Module Assembly...

  • Page 2: Overall Instrument Assembly

    40-6640 Service Manual 1. Overall Instrument Assembly Fig. 1-A Item JLT Part # Description AP1682 Cross Plate Screw M2.5x14 AP1572 Cross Plate Screw M2.5x10 AP1681 Back Housing AP1683 Front Housing AP1684 Central Unit (see Sec. 1.1) AP1572 Cross Plate Screw M2.5x10...
  • Page 3 40-6640 Service Manual General Assembly Instructions [Note: Refer to section 3.0 for information on electrical connections.] 1. Connect the battery compartment plug from the Back Housing (3) to the Main Circuit Board. (See Fig. 1 Main Circuit Board Back Housing Plug connected Fig.
  • Page 4 40-6640 Service Manual 3. Before moving the Front and Back Housing units in place, position the Rubber Jacket (8) over the instrument so that the matching hole is located over the Crank Shaft and the on-off indicator light (from the Power Switch Circuit Board) is through a smaller hole in Rubber Jacket.

  • Page 5: Central Unit Assembly

    40-6640 Service Manual 1.1 Central Unit Assembly(AP1684) 5- 1 5- 2 Indentation covers 5- 7 Protrusion 5- 3 5- 8 5- 4 5- 9 5- 5 5- 10 5- 6 Fig. 1-1-A Item JLT Part # Description AP1513 Cross Plate Screws M3×8...
  • Page 6 40-6640 Service Manual General Assembly Instructions 1. Attach Base Plate Module (5-5) to Platform Module (5-6) using the three Cross Plate Tapping Screws (5-4). 2. Snap on the Support Seat Ring (5-2) making sure that the inside indentation fits over the protrusion of the Gimbal ring.
  • Page 7 40-6640 Service Manual 4. Now attach the connecting circuit board to the underside of the supporting plate of the Core Module (5-3). The two bolts on the underside must first be removed and then used to attach the circuit board. See Fig. 1-1-D.
  • Page 8 40-6640 Service Manual Alarm Rod positioned inside Alarm Loop Three Screws used to attach Circuit Board Fig. 1-1-G The Central Unit assembly can be disassembled using the reverse order described above. Prepared By: Peter Brandt Version: 08 – 20080415 Page...

  • Page 9: Component Assembly

    40-6640 Service Manual 2.0 Component Assembly 2.1 Core Module Assembly Regarding General Assembly of Core Module NOTE OF CAUTION This module should not be assembled by anyone other than professional service technicians with appropriate equipment. Cutting the hairspring wires or any other wires is NOT recommended.

  • Page 10: Base Plate Module Assembly

    40-6640 Service Manual 2.2 Base Plate Module Assembly (AP1691) 5- 5- 1 5- 5- 2 5- 5- 6 5- 5- 5 5- 5- 3 5- 5- 4 5- 5- 8 5- 5- 9 5- 5- 7 5- 5- 10 5- 5- 11...
  • Page 11 40-6640 Service Manual Item JLT Part # Description 5-5-1 AP1696 Cross Plate Screws M2x10 5-5-2 AP1697 M2 Lock Washers Support Post Type A (w. 1 hole through side of post) 5-5-3 AP1698 5-5-4 AP1699 Support Post Type B (w. 2 holes through side of post)

  • Page 12: Platform Module Assembly

    40-6640 Service Manual Platform Module Assembly (AP1692) 5- 6- 1 5- 6- 8 5- 6- 9 5- 6- 2 Fig. 2-3-Ax 5- 6- 3 5- 6- 4 5- 6- 5 5- 6- 6 The off-center hole needs to match the indentation circle...
  • Page 13 40-6640 Service Manual General Assembly Instructions 1. Using three Cross Plate Screws, attach the Bottom Axle (5-6-7) into the bottom of the Degree Scale (5-6-6). 2. Place the Rotation Platform (5-6-4) onto the Bottom Axle (5-6-7). Place the Gasket (5-6-3) and then Wave-form Gasket (5-6-2) onto the Bottom Axle.
  • Page 14 40-6640 Service Manual 5. Then push plug receptor down and attach #2 A/C Receptor Circuit Board (5-6-9) using two Cross Plate Screws (5-6-8). (See Fig. 2-3-D.) Make sure that wires are fit into inside groove along edge of Rotation Platform.

  • Page 15: Bracket Assembly

    40-6640 Service Manual 2.4 Bracket Assembly (40-6356) 9 -3 9 -5 9 -9 9 -13 9 -14 9 -11 9 -1 9 -15 9 -12 9 -8 9 -10 9 -6 9 -7 9 -2 9 -16 9 -4 9 -12 Fig.
  • Page 16 40-6640 Service Manual Item JLT Part # Description AP1717 Bracket AP1718 Cover Board #1 AP1719 Cover Board #2 AP1720 Cover Board #3 AP1721 Fastening Knob AP1722 Magnet Holders AP1723 Rubber Pad AP1724 Cushion Rings AP1725 Magnet Plate 9-10 AP1726 Magnet 14x4...

  • Page 17: Electrical Connections

    40-6640 Service Manual 3.0 Electrical Connections #5 Alarm Rod Circuit Board (inside ring) #7 Connecting #4 Alarm Loop Circuit Board Circuit Board (outside ring) #3 Power Switch Circuit Board #1 Main Circuit Board Power Source (Batteries) Fig. 3 A #2 A/C Receptor...

  • Page 18: Checking Accuracy

    This service manual discusses calibration specific to the 40-6640. All accuracy checking and calibration adjustments described below must be made while laser instrument is secured on a leveled platform.

  • Page 19: Calibration Adjustments

    If the laser lines are within the range created by the lines drawn 0.5 mm out from the reference lines, the laser instrument is operating within the accuracy specification of the instrument. [Accuracy specification is the same for the 40-6640 Self-leveling Laser: +1/8”/35 ft. (+ 3mm / 10m).] If accuracy does not fall within specification, continue to review the following sections and make the needed calibration adjustments.
  • Page 20 40-6640 Service Manual 4.2.1 Linearity (or curvature) error. Either the horizontal or vertical line is not straight (i.e. there is curvature). Fig. 4-2-A Linearity (or curvature) Horizontal Reference Line (AOB) Vertical Reference Line (COD) Adjustment required: Adjust the needed screws in the diagram below depending on which laser lines show curvature.

  • Page 21: Oblique Error

    40-6640 Service Manual 4.2.2 Oblique error. Either vertical or horizontal line is not plumb. Fig. 4-2-D Oblique Error Horizontal Reference Line (AOB) Vertical Reference Line (COD) Adjustment required: If the laser lines are perpendicular to each other and only a small adjustment is needed, adjust the hexagonal nut shown (Fig.
  • Page 22 40-6640 Service Manual Fig. 4-2-F Fig. 4-2-G Remove plastic screw to provide access Use 3 mm hexagonal wrench key If the lines are not perpendicular to each other or a larger adjustment is needed, the housing needs to be removed.

  • Page 23: Height Error

    40-6640 Service Manual Height error. Point “O” does share the same height as the laser output source of the instrument, 4.2.3 but the height of the laser height needs to be corrected. Fig. 4-D Height Error Reference point “O” Horizontal...

  • Page 24: Alarm Adjustment

    40-6640 Service Manual 5.0 Alarm Adjustment After one or more calibrations have been completed, if may be necessary to adjust the alarm range. If the alarm rod is not centered within the alarm loop, make adjustments as follows: 1. Remove all housing to clearly view the top portion of Central Unit Assembly (see Fig. 5-A).

  • Page 25: Troubleshooting Guide

    40-6640 Service Manual 6.0 Troubleshooting Guide (see Section 3 for visual display of circuit boards) Symptom Cause Corrective Action Low batteries. Recharge or replace batteries. Failure to start On-Off Switch does not work. Replace On-Off Switch Assembly using batteries (instrument does not turn on).
  • Page 26 40-6640 Service Manual Hairspring wire is broken Replace the hairspring wire Connecting wires between circuit boards #1 and #4 are broken Repair connecting wires. Core connection wire to laser is cut No laser Replace the connection wire #1 Main Contol circuit board does not work.
