AccuLine 40-6620 Instruction Manual

Self-leveling cross-line laser level
Hide thumbs Also See for 40-6620:
Table of Contents

Advertisement

Quick Links

™

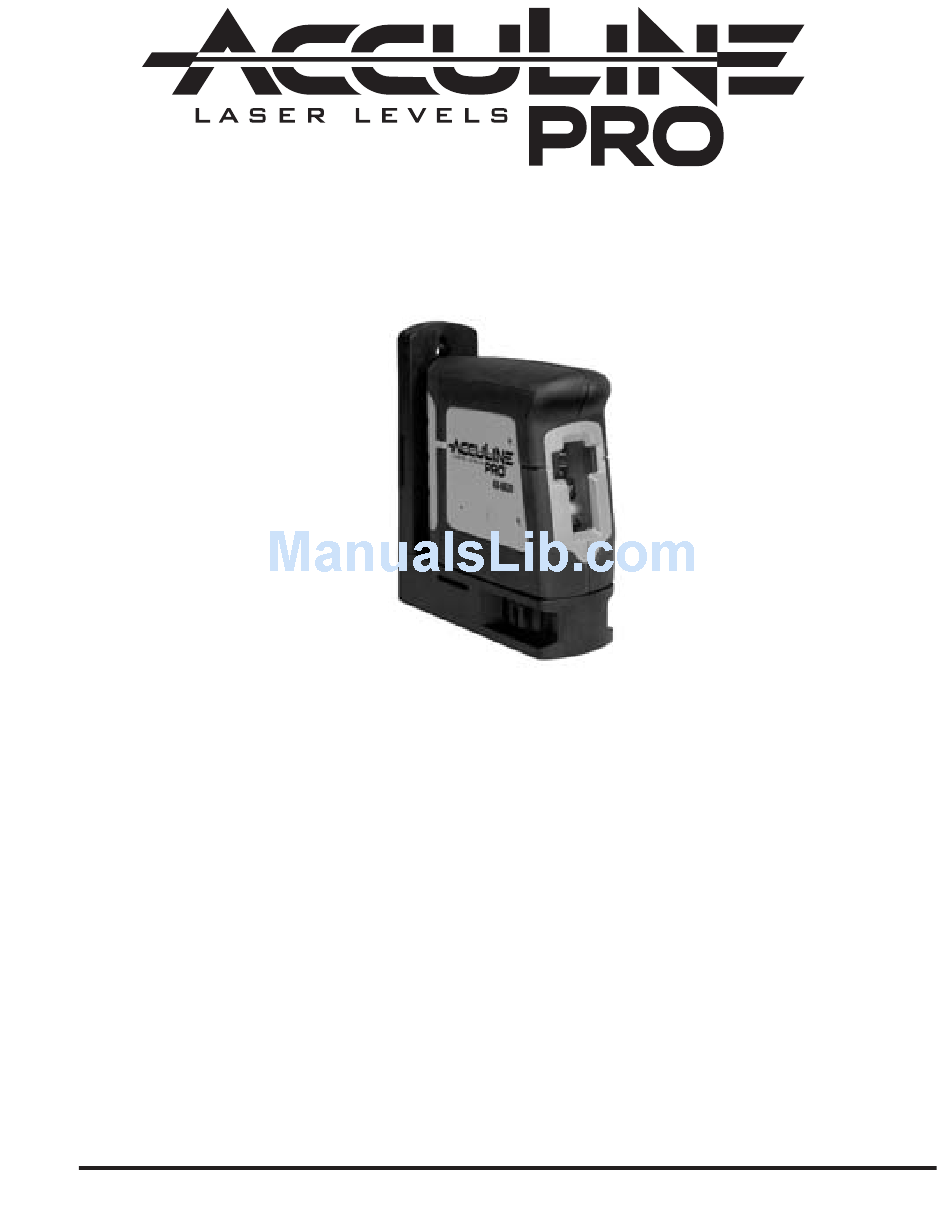

Self-Leveling Cross-Line Laser Level
Model No. 40-6620 and 40-6625
Instruction Manual
Congratulations on your choice of this Self-Leveling Cross-Line Laser
Level. We suggest you read this instruction manual thoroughly before
using the instrument. Save this instruction manual for future use.
This is a Class II (40-6620) and Class IIIa (40-6625) laser tool and is
manufactured to comply with CFR 21, parts 1040 .10 and 1040 .11 as
well as international safety rule IEC 285.
©2007 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6620 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AccuLine 40-6620

Summary of Contents for AccuLine 40-6620

  • Page 1 Level. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use. This is a Class II (40-6620) and Class IIIa (40-6625) laser tool and is manufactured to comply with CFR 21, parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285.

  • Page 2: Table Of Contents

    12. Product Warranty 5. Location of Parts/Components 13. Product Registration 6. Operating Instructions 14. Accessories 7. Using the Product 1. Kit Contents For Model No. 40-6620 and 40-6625 Description Qty. Self-leveling Cross Line Laser Level Multi-Functional Mount “AA” Alkaline Batteries Mounting Strap...

  • Page 3: Safety Instructions

    • Use only original AccuLine Pro ™ parts and accessories purchased from your AccuLine Pro authorized dealer. Use of non-AccuLine Pro parts and accessories will void warranty. ©2007 Johnson Level & Tool...
  • Page 4 40-6620 CAUTION! Class II Laser Product Max. Power Output: ≤ 1mW Wavelength: 625-645nm THIS TOOL EMITS LASER RADIATION. DO NOT STARE INTO BEAM. AVOID DIRECT EYE EXPOSURE. 40-6625 DANGER! Class IIIa Laser Product Max. Power Output: ≤ 5mW Wavelength: 625-645nm THIS TOOL EMITS LASER RADIATION.

  • Page 5: Location/Content

    4. Location/Content of Warning Labels 40-6620 40-6625 ©2007 Johnson Level & Tool...

  • Page 6: Location Of Parts/Components

    5. Location of Part/Components Manual mode button Instrument Power Indicator Light Laser Output Window On/Off Switch Window Frame Assembly Rubber Jacket Side Calibration 1/4” – 20 thread 5/8” thread ©2007 Johnson Level & Tool...

  • Page 7: Operating Instructions

    Special Base Bracket Instrument Connecting Knob Magnet Magnet 5/8" thread Mounting Rubber Belt Groove 1/4" – 20 thread 6. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Battery Installation Note: Always check to be sure that the on/off switch is in the off position before removing and replacing batteries.

  • Page 8: Using The Product

    Note: • Pay attention to the polarity of the batteries. • Used (discharged) batteries are hazardous waste and should be disposed of properly. 7. Using the Product This base was specially designed for more extensive adaptability of the instrument. Both the instrument and the base can be connected with a standard tripod by 5/8"-11 thread and camera tripod by 1/4"...
  • Page 9 Manual Mode Operating Instructions Figure 9 1. Locate the Manual Mode Button (fig. 9) on the side of the instrument, above the on/off switch (fig. 10). 2. When the unit is turned on, push the button once to engage the Manual Mode Feature.

  • Page 10: Self-Check And Calibration

    8. Self-Check and Calibration IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. 1. Set the instrument on a level flat head tripod centered between two walls (marked 1 & 2) approximately 15 feet apart. (See fig. 1). 2.

  • Page 11: Technical Specifications

    Reassemble the window frame after completing the calibration. 9. Technical Specifications Laser Wavelength 635nm±10 Laser Classification Class II (40-6620) Class IIIa (40-6625) ≤1mW (40-6620) ≤5mW (40-6625) Maximum Power Output Accuracy ±1/8"/35 ft. (±3mm/10m) Interior Range Up to 100 ft. (30m) depending upon light conditions (40-6620) Up to 150 ft.

  • Page 12: Application Demonstrations

    10. Application Demonstrations Laying tile Fixing cabinets Setting pipelines Fixing doors and windows Installing partitions Installing baseboards Hanging pictures Dormer installation ©2007 Johnson Level & Tool...

  • Page 13: Care And Handling

    Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine Pro™ service center or Johnson Level & Tool's limited warranty, if applicable, will be void and there will be NO WARRANTY. Contact our Customer Service Department to obtain a Return Material Authorization (RMA) number for return to an authorized service center.

  • Page 14: Product Registration

    NOTE: The user is responsible for the proper use and care of the product. It is the responsibility of the user to verify the calibration of the instrument before each use. For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Department.

  • Page 15: Accessories

    14. Accessories AccuLine Pro™ accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.
  • Page 16 ©2007 Johnson Level & Tool...
