AccuLine 40-6640 Instruction Manual

Self-leveling cross-line laser level with greenbrite technology
Hide thumbs Also See for 40-6640:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Service Manual

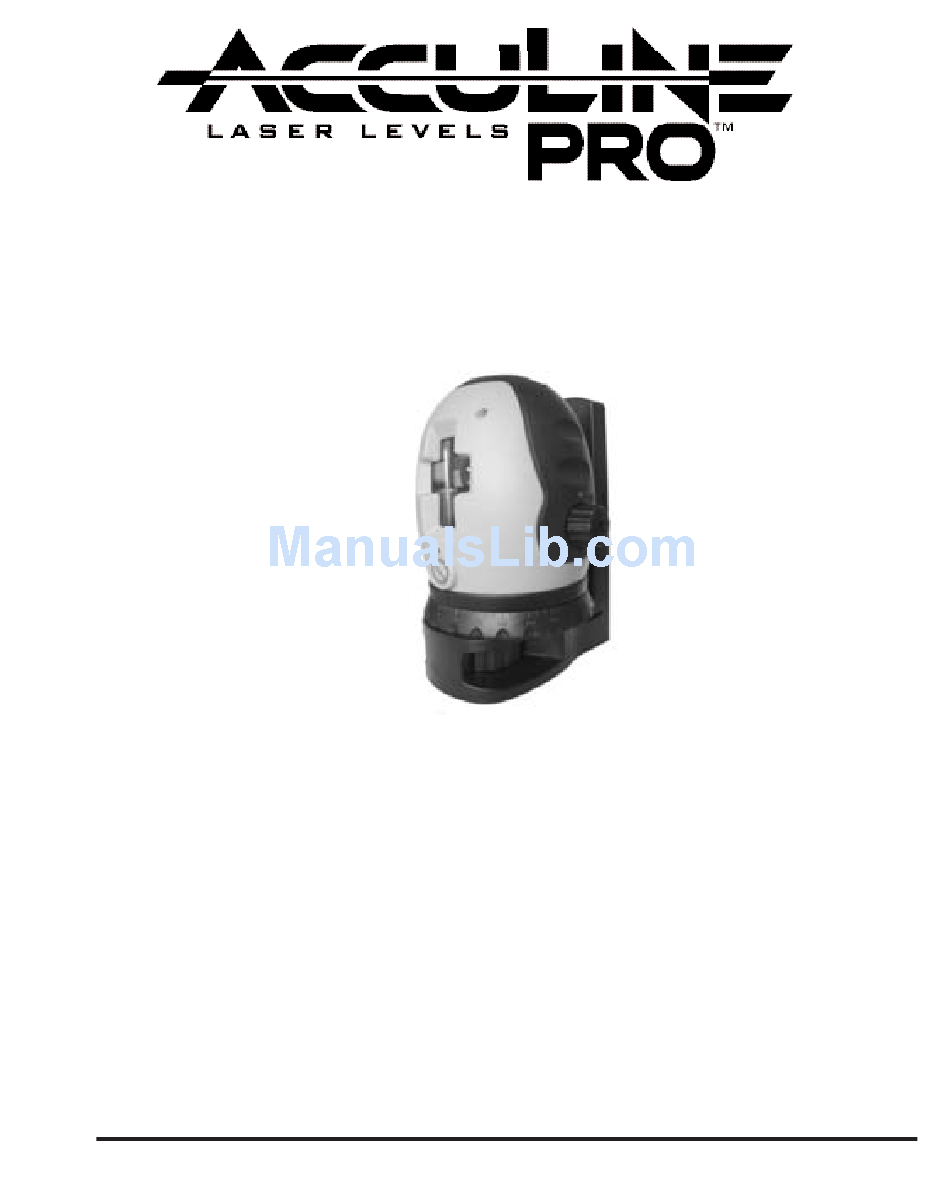

Self-Leveling Cross-Line Laser Level
with GreenBrite
®
Technology
Model No. 40-6640
Instruction Manual
Congratulations on your choice of this Self-Leveling Cross-Line Laser
Level. We suggest you read this instruction manual thoroughly before
using the instrument. Save this instruction manual for future use.
This is a Class IIIa laser tool and is manufactured to comply with CFR
21, parts 1040 .10 and 1040 .11 as well as international safety rule IEC
285.
©2007 Johnson Level & Tool
1
Rev 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6640 and is the answer not in the manual?

Questions and answers

Related Manuals for AccuLine 40-6640

Summary of Contents for AccuLine 40-6640

  • Page 1 Save this instruction manual for future use. This is a Class IIIa laser tool and is manufactured to comply with CFR 21, parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285. ©2007 Johnson Level & Tool Rev 1...

  • Page 2: Table Of Contents

    • Multi-functional magnetic mount is included to allow hanging on wall, attach to metal, or connect to tripod (5/8"-11 or 1/4"-20). • Includes adjustable strap for attachment to pipe or conduit. ©2007 Johnson Level & Tool...

  • Page 3: Safety Instructions

    • Use only original AccuLine Pro ™ parts and accessories purchased from your AccuLine Pro authorized dealer. Use of non-AccuLine Pro parts and accessories will void warranty. ©2007 Johnson Level & Tool...
  • Page 4 WARNING! The tinted goggles are designed to enhance the visibility of the laser beam. They DO NOT offer protection to the eyes from direct exposure of the laser beam. ©2007 Johnson Level & Tool...

  • Page 5: Location/Content

    4. Location/Content of Warning Labels ©2007 Johnson Level & Tool...

  • Page 6: Location Of Parts/Components

    Laser Output Window Power LED Tilt “Manual Mode” On/Off Transportation Lock Switch Tilt Manual Mode 360º Circle Button Self-calibrating Battery Case Screw Portal Outlet LED Outlet 1/4” - 20 Screw 5/8” - 11 Screw Thread Thread ©2007 Johnson Level & Tool...
  • Page 7 1. Make the threaded holes mutually aligned. Align the 5/8” - 11 and 1/4” - 20 knob and hole. 2. Tighten instrument on the bracket by turning the handwheel clockwise. Power LED Lighted LED means power-on Extinguished LED means power-off Flashing LED means weak battery ©2007 Johnson Level & Tool...

  • Page 8: Operating Instructions

    1. Open the battery-box cover and put in the battery pack into the battery case according to polarity marked in the battery-box. 2. Snap the battery cover back on. ©2007 Johnson Level & Tool...
  • Page 9 Note: • Pay attention to the polarity of the batteries. • Do not charge alkaline batteries to avoid explosion. • Used (discharged) batteries are hazardous waste and should be disposed of properly. ©2007 Johnson Level & Tool...

  • Page 10: Using The Product

    (5/8” - 11 thread or 1/4” - 20 thread) The instrument can be attached to a steel plate while on its base. The instrument can be fixed to a pipe with the fixing strap while on its base. ©2007 Johnson Level & Tool...

  • Page 11: Self-Check And Calibration

    8. Measure the distance between points B & D. 9. If the difference between points A & C and points B & D are less than 1/16”, your instrument is within Fig 2 its tolerance. ©2007 Johnson Level & Tool...
  • Page 12 (figure 3). Using a 3mm hex head wrench turn the calibration screws, moving one screw at a time, clockwise to lower the line and counter-clockwise to raise the line. Adjust the line to the cor- rect height (figure 4). ©2007 Johnson Level & Tool...

  • Page 13: Technical Specifications

    Dimensions 3 7/8" x 4 1/4" x 5 1/8" (98x110x130mm) Weight 1.653 lbs. (0.75 Kg) Working Temperature 32º to 104ºF (0º to 40ºC) Center Screw Thread 5/8" – 11; 1/4" – 20 IP Protection Class ©2007 Johnson Level & Tool...

  • Page 14: Application Demonstrations

    10. Application Demonstrations Laying tile Fixing cabinets Fixing doors and windows Setting pipelines Installing partitions Installing baseboards Hanging pictures Dormer installation ©2007 Johnson Level & Tool...

  • Page 15: Care And Handling

    Keep the laser unit dry and clean, especially the laser output • window. Remove any moisture or dirt with a soft, dry cloth. Do not use harsh chemicals, strong detergents or cleaning solvents • to clean the laser unit. ©2007 Johnson Level & Tool...

  • Page 16: Product Warranty

    12. Product Warranty Johnson Level & Tool offers a one year limited warranty on each its products. You can obtain a copy of the limited warranty for a Johnson Level & Tool product by contacting Johnson Level & Tool's Customer Service Department as provided below or by visiting us online at www.johnsonlevel.com.

  • Page 17: Product Registration

    You will need to locate the serial number for your product that is located on the bottom of the unit. PLEASE NOTE THAT IN ADDITION TO ANY OTHER LIMITATIONS OR CONDITIONS OF JOHNSON LEVEL & TOOL'S LIMITED WARRANTY, JOHNSON LEVEL & TOOL MUST...

  • Page 18: Accessories

    NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department. In the U.S., contact Johnson Level & Tool’s Customer Service Department at 800-563-8553. In Canada, contact Johnson Level & Tool’s Customer Service Department at 800-346-6682.
