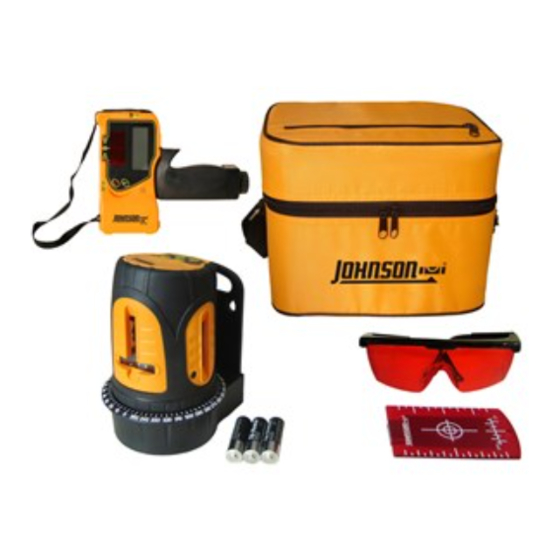

Self-Leveling Cross Line Laser Level
with 3 Vertical Lines
Model No. 40-6602
Instruction Manual
Congratulations on your choice of this Self-Leveling Cross Line Laser
Level with 3 vertical lines. We suggest you read this instruction
manual thoroughly before using the instrument. Save this instruction
manual for future use.
This tool emits one laser cross and two vertical line at 90º. The tool
features quick damping, visual and audible out of range indication, and
a pendulum-locking design. Beam visibility depends upon lighting
conditions in the work area.
This is a Class IIIa laser tool and is manufactured to comply with CFR 21,
parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285.
©2008 Johnson Level & Tool
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AccuLine 40-6602
Summary of Contents for AccuLine 40-6602
- Page 1 Page 1 ® Self-Leveling Cross Line Laser Level with 3 Vertical Lines Model No. 40-6602 Instruction Manual Congratulations on your choice of this Self-Leveling Cross Line Laser Level with 3 vertical lines. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.
-
Page 2: Table Of Contents
1676H-English 10/3/08 10:46 AM Page 2 Table of Contents 1. Kit Contents Self-Check and Calibration 2. Features and Functions Technical Specifications 3. Safety Instructions 10. Application Demonstrations 4. Location/Content 11. Care and Handling of Warning Labels 12. Product Warranty 5. Location of Parts/Components 13. -
Page 3: Safety Instructions
• Use only original AccuLine Pro ® parts and accessories purchased from your AccuLine Pro authorized dealer. Use of non-AccuLine Pro parts and accessories will void warranty. ©2008 Johnson Level & Tool... -
Page 4: Location/Content
1676H-English 10/3/08 10:46 AM Page 4 4. Location/Content of Warning Labels ©2008 Johnson Level & Tool... -
Page 5: Location Of Parts/Components
1676H-English 10/3/08 10:46 AM Page 5 5. Location of Part/Components Keypad Battery Door Laser Screw Emitting Battery Door Laser Window Emitting Window 6V Plug (adapter not included) Screw Hole Bench Mark Locator Insert 5/8” thread Graduated Circle ©2008 Johnson Level & Tool... -
Page 6: Operating Instructions
1676H-English 10/3/08 10:46 AM Page 6 6. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Battery Installation Note: Always check to be sure that the on/off switch is in the off position before removing and replacing batteries. - Page 7 1676H-English 10/3/08 10:46 AM Page 7 Wall Mount/Tripod Adapter 1. Put the instrument into the wall mount. The unit can rotate 360º. 2. The wall mount can be mounted on a wall. 3. The benchmark locator insert can be used to find a point on the ground.
-
Page 8: Using The Product
1676H-English 10/3/08 10:46 AM Page 8 7. Using the Product Horizontal laser line button Manual mode LED Pulse mode LED Manual mode button Pulse mode button Power LED Vertical laser line buttons Power LED: Light On: Power on Light Off: Power off Light Flashing: Low Battery Pulse mode LED: Light On: Pulse mode on and the laser can be used with the... - Page 9 1676H-English 10/3/08 10:46 AM Page 9 Compensator Transportation Lock Hold the upper housing of the instrument, and turn the base in the direction of the arrow. To lock the compensator transportation To unlock the compensator transportation lock, turn the base to the off position. lock, turn the base to the on position.
- Page 10 1676H-English 10/3/08 10:46 AM Page 10 mode LED will flash. The instrument is now in the manual mode. Note: When manual mode is on, the laser does not self-level and no out-of-level alarm is indicated. Press the manual mode button again and the instrument will power off. 1.
-
Page 11: Self-Check And Calibration
1676H-English 10/3/08 10:46 AM Page 11 8. Self-Check and Calibration IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Horizontal Line for Level 1. Set the wall mount/tripod adapter on a tripod or flat surface approxi- mately 10 ft. - Page 12 1676H-English 10/3/08 10:46 AM Page 12 3 Vertical Lines for Plumb 1. Use a plumb line or known vertical reference point. 2. Turn the laser unit on following the instructions above. 3. Rotate the laser unit so the vertical laser line intersects the plumb line. 4.
-
Page 13: Technical Specifications
1676H-English 10/3/08 10:46 AM Page 13 Self-Calibrating the horizontal laser line and front vertical laser line 1. Locate calibration port on the side of the laser unit. 2. Remove the rubber plug. 3. Unlock the compensator. 4. Use a 2mm hex head wrench. 5. -
Page 14: Application Demonstrations
1676H-English 10/3/08 10:46 AM Page 14 10. Application Demonstrations ©2008 Johnson Level & Tool... -
Page 15: Care And Handling
Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine Pro® service center or Johnson Level & Tool's limited warranty, if applicable, will be void and there will be NO WARRANTY. -
Page 16: Product Registration
1676H-English 10/3/08 10:46 AM Page 16 It is the responsibility of the user to verify the calibration of the instrument before each use. For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Department. -
Page 17: Accessories
AccuLine Pro ® accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department. - Page 18 1676H-English 10/3/08 10:46 AM Page 18 ©2008 Johnson Level & Tool...
