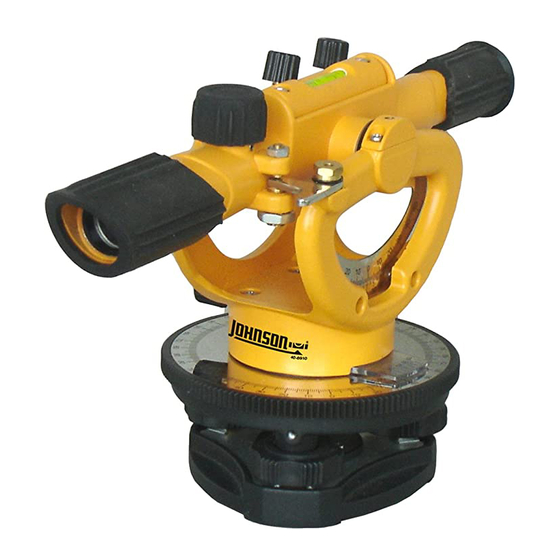

40-6910 22x Builders Level
Item
1.0
1.1
1.2
1.3
1.4
2.0
2.1
2.2
2.3
3.0
Prepared By: Tim Wojo
Service Manual
Description
Overall Instrument Assembly
Main Assembly
Telescope Assembly
Base Assembly
Frame Assembly
Calibration
Vial Verification/Calibration
Line of Site Verification/Calibration
Vertical Accuracy Verification/Calibration
Trouble Shooting Guide
Revision: 1-050309
40-6910 Service Manual
Pages
2
2
3
4
5
6-8
6
7
8
9
Page 1 of 9
Advertisement
Related Manuals for AccuLine 40-6910 22x
Summary of Contents for AccuLine 40-6910 22x
- Page 1 40-6910 Service Manual 40-6910 22x Builders Level Service Manual Item Description Pages Overall Instrument Assembly Main Assembly Telescope Assembly Base Assembly Frame Assembly Calibration Vial Verification/Calibration Line of Site Verification/Calibration Vertical Accuracy Verification/Calibration Trouble Shooting Guide Prepared By: Tim Wojo...
-
Page 2: Main Assembly
40-6910 Service Manual 1. Overall Instrument Assembly This optical level is a highly accurate instrument. Out side of a few customer adjustments (outlined in the owners manual), all adjustments/service operations are internal to the instrument and to be performed only by authorized service personnel. Authorized personnel should adhere to the guidelines described within this service manual for all repairs and/or service work. - Page 3 40-6910 Service Manual 1.2 Telescope Assembly (AP2026) Item JLT Part Description Item JLT Part Description AP2001 Objective Press Loop 6-13 AP1449 M2.5 x 6 Cross-slot Plate Screw AP2002 Objective glued lens 6-14 AP2013 Horizontal micro motion loop AP2003 Focus Lens assembly 6-15 AP2014 Horizontal Micro-motion...
- Page 4 40-6910 Service Manual 1.3 Base Assembly (AP1997) Item JLT Part Description AP2017 C-ring AP2018 Compression Spring AP2019 Spacer AP2020 Horizontal Graduated Circle AP1579 2.5M Split Washer AP2021 Base Module AP1449 M2.5 x 6 Cross-slot Plate Screw AP2022 Press Board 8-10 AP2023 Bottom Plate 8-11...
- Page 5 40-6910 Service Manual 1.4 Frame Assembly (AP2027) Item JLT Part Description 13-1 AP2038 Position Block Screw 13-2 AP2039 Elastic Gasket 13-3 AP2041 Position Block 13-4 AP1022 M3x6 Cross Plate Screw 13-5 AP2009 Horizontal Fine Adjustment Knob 13-6 AP2010 M1.6x3 Cross Plate Screw 13-7 AP2014 Horizontal Locking Knob...
- Page 6 40-6910 Service Manual 2.0 Calibration Calibration is a process that is used to correct for accuracy and/or functional errors above and beyond those stated in published specifications. This product is fairly easy to verify and calibrate as there are only two adjustments that can be made. Each item discussed is shown below.
- Page 7 40-6910 Service Manual 2.2 Line of Site Verification/Calibration Once Vial calibration has been verify/achieved, it is necessary to verify/calibrate the line of site. Essentially this assures that the stadia lines with in the telescope (cross hairs) are on the same plane as your reference. This can be done a number of ways: ...
- Page 8 40-6910 Service Manual 2.3 Vertical Accuracy Verification/Calibration Set the instrument on the platform and face telescope to the wall. Tighten the center screw and level the instrument. Loosen the vertical lock knob and adjust the telescope as shown in the figure to the right. Adjust the focus knob until the target on the top end of the wall could be observed clearly.
-
Page 9: Troubleshooting Guide
40-6910 Service Manual 3.0 Trouble Shooting Guide Symptom Cause Corrective Action The horizontal micro-motion knob The horizontal locking mechanism is Replace the horizontal locking doesn’t work damaged or defective mechanism The upper gear on the focus tube has a lot The focus knob doesn’t work Replace the focus tube of wear...
