AccuLine 40-6543 Instruction Manual

Self-leveling rotary laser level with greenbrite technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1621H-English
9/4/08
9:05 AM
Page 1

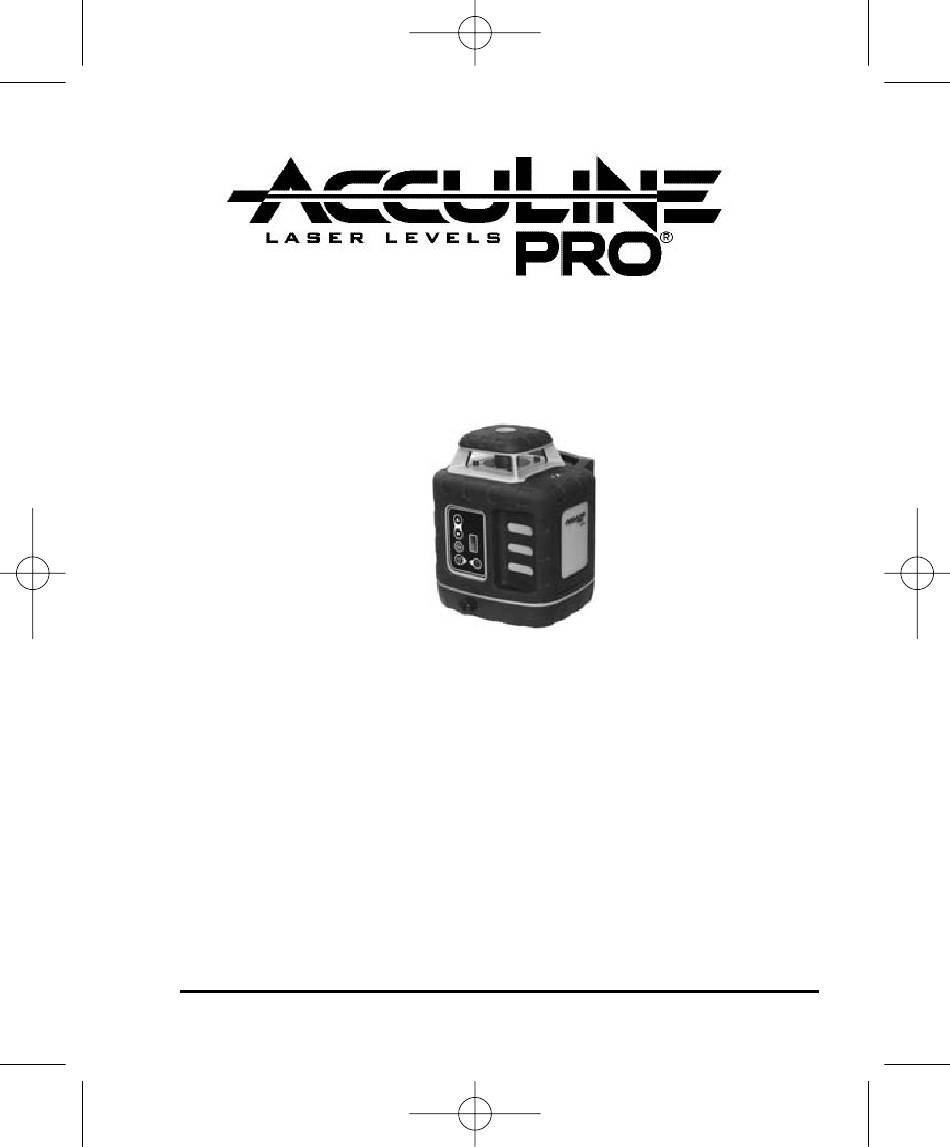

Self-Leveling Rotary Laser Level
with GreenBrite
®
Technology
Model No. 40-6543
Instruction Manual
Congratulations on your choice of this Self-Leveling Rotary Laser Level
®
with GreenBrite
Technology. We suggest you read this instruction
manual thoroughly before using the instrument. Save this instruction
manual for future use.
This tool emits one rotating laser beam plus one plumb beam and is
ideal for laying out indoor construction projects.
This is a Class IIIa laser tool and is manufactured to comply with CRF 21,
parts 1040.10 and 1040.11 as well as international safety rule IEC 285.
©2008 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6543 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AccuLine 40-6543

Summary of Contents for AccuLine 40-6543

  • Page 1 9:05 AM Page 1 Self-Leveling Rotary Laser Level with GreenBrite ® Technology Model No. 40-6543 Instruction Manual Congratulations on your choice of this Self-Leveling Rotary Laser Level ® with GreenBrite Technology. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.

  • Page 2: Table Of Contents

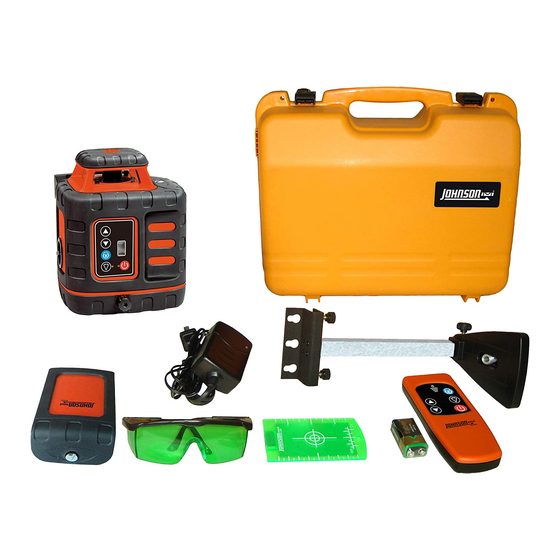

    1621H-English 9/4/08 9:05 AM Page 2 Table of Contents 1. Kit Contents 8. Accuracy Self-Check 2. Features and Functions Technical Specifications 3. Safety Instructions 10. Application Demonstrations 4. Location/Content 11. Care and Handling of Warning Labels 12. Product Warranty 5. Location of Parts/Components 13.

  • Page 3: Safety Instructions

    • Do not attempt to repair or disassemble the laser tool. If unqualified persons attempt to repair this tool, warranty will be void. • Use only original AccuLine Pro ® parts and accessories purchased from your AccuLine Pro ® authorized dealer. Use of non-AccuLine Pro ®...

  • Page 4: Location/Content

    1621H-English 9/4/08 9:05 AM Page 4 4. Location/Content of Warning Labels LASER RADIATION AVOID DIRECT EYE EXPOSURE. MAXIMUM OUTPUT POWER ≤ 5mW @ 522-542nm CLASS IIIa LASER PRODUCT. THIS PRODUCT COMPLIES WITH THE APPLICABLE REQUIRE- MENTS OF 21 CFR PARTS 1040.10 &...

  • Page 5: Location Of Parts/Components

    1621H-English 9/4/08 9:05 AM Page 5 5. Location of Part/Components Battery-case locking screw Laser output window Remote control Battery case Receivers Keypad Vertical adjustment knob Calibration Handle and screw plug vertical bracket Transportation locking knob 5/8” thread holes ©2008 Johnson Level & Tool ©2008 Johnson Level &...

  • Page 6: Operating Instructions

    1621H-English 9/4/08 9:05 AM Page 6 6. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Battery Installation Note: Always check to be sure that the on/off switch is in the off position before removing and replacing batteries.

  • Page 7: Using The Product

    1621H-English 9/4/08 9:05 AM Page 7 7. Using the Product Operating Panel Rotation speed and scan keys HIgh rotation speed key Scan mode key Power Key Scanning LED Power LED 1. Power Key • Press this key to turn on and off the power 2.
  • Page 8 1621H-English 9/4/08 9:05 AM Page 8 5. High rotation speed key Press this key, the instrument will rotate in its highest speed 6. Rotation speed and scan keys In rotation mode • Press the up arrow to increase rotation speed •...
  • Page 9 1621H-English 9/4/08 9:05 AM Page 9 2. Place the instrument on a platform or tripod, connect to the tripod using the 5/8" thread at the bottom of laser. Note: If instrument is inclined beyond its self-leveling range, it will deliver an audible alarm. Re- position the instrument until leveled. 3.
  • Page 10 1621H-English 9/4/08 9:05 AM Page 10 Usage for vertical application IMPORTANT: Keep the transportaion “Locking Knob” in the “Locked/Off” position. 1. Install batteries/battery pack as previously discussed. 2. Set the laser down on its vertical bracket. 3. Turn on the power by pressing the Power Key. The vertical vial will now be backlit.
  • Page 11 1621H-English 9/4/08 9:05 AM Page 11 8. Self-Check and Calibration IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. 30’ X-Direction Accuracy Self-Check 1. Place the unit on a platform that is 30 feet away from a wall, with the battery case facing towards the wall.
  • Page 12 1621H-English 9/4/08 9:05 AM Page 12 X-Direction Accuracy Calibration 1. Turn the lock knob to the “OFF’ position. 2. Remove the rubber plug from the X-direction self-calibration aperture inside the battery compartment. Adjust the weight screw inside the instrument core with a flathead screwdriver.

  • Page 13: Accuracy Self-Check

    1621H-English 9/4/08 9:05 AM Page 13 Y-Direction Accuracy Calibration 1. Turn the lock knob to the “OFF’ position. 2. Screw off the Y-direction self-calibration aperture bolt located behind the handle. Adjust the weight screw inside the instru- ment core with a flathead screwdriver. 3.

  • Page 14: Technical Specifications

    1621H-English 9/4/08 9:05 AM Page 14 4. Measure the distance “H2” between the top laser beam and the platform surface. 5. Mark E in the position that is equal to (H1-H2) under the point O. 6. Adjust the adjusting knob to make the laser beam aim at E. 7.

  • Page 15: Application Demonstrations

    1621H-English 9/4/08 9:05 AM Page 15 10. Application Demonstrations Plumb reference for ceiling installation Reference for anti-static flooring installation Reference for window installation Reference for flooring Reference for squaring and leveling Reference for cement floor installation ©2008 Johnson Level & Tool ©2008 Johnson Level &...

  • Page 16: Care And Handling

    Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine Pro™ service center or Johnson Level & Tool's limited warranty, if applicable, will be void and there will be NO WARRANTY.

  • Page 17: Product Registration

    14. Accessories AccuLine Pro® accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.
  • Page 18 1621H-English 9/4/08 9:05 AM Page 18 ©2008 Johnson Level & Tool...
