Automatic-Leveling Horizontal
Rotary Laser Level
Model No. 40-6535
Instruction Manual
Congratulations on your choice of this Automatic-Leveling Horizontal
Rotary Laser Level. We suggest you read this instruction manual
thoroughly before using the instrument. Save this instruction manual
for future use.
This is a Class IIIa laser tool and is manufactured to comply with CFR 21,
parts 1040 .10 and 1040 .11 as well as international safety rule IEC 285.
©2007 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6535 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AccuLine 40-6535

Summary of Contents for AccuLine 40-6535

  • Page 1 ™ Automatic-Leveling Horizontal Rotary Laser Level Model No. 40-6535 Instruction Manual Congratulations on your choice of this Automatic-Leveling Horizontal Rotary Laser Level. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.

  • Page 2: Table Of Contents

    5. Location of Parts/Components 13. Product Registration 6. Operating Instructions 14. Accessories 7. Using the Product 1. Kit Contents Description Model No. 40-6535 Qty. Automatic-Leveling Horizontal Rotary Laser Level Ni-MH Rechargeable Battery Pack 6V Battery Adapter Remote Control with 9V Battery Detector with 3 “AAA”...

  • Page 3: Safety Instructions

    • Use only original AccuLine Pro ™ parts and accessories purchased from your AccuLine Pro authorized dealer. Use of non-AccuLine Pro parts and accessories will void warranty. ©2007 Johnson Level & Tool...

  • Page 4: Location/Content Of Warning Labels

    4. Location/Content of Warning Labels ©2007 Johnson Level & Tool...

  • Page 5: Location Of Parts/Components

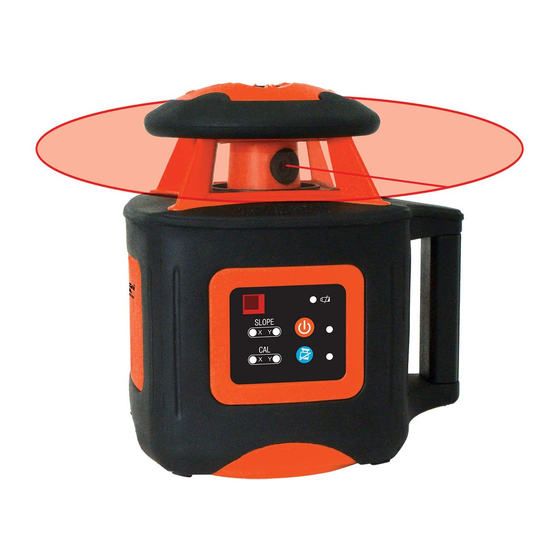

    5. Location of Part/Components Rotating laser emitting window Handle Keypad DC 6V Battery Cover ©2007 Johnson Level & Tool...

  • Page 6: Operating Instructions

    6. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Battery Installation Note: Always check to be sure that the on/off switch is in the off position before removing and replacing batteries. Ni-MH Rechargeable Battery Pack Installation 1.
  • Page 7 Note: (1) For the first two charges of new rechargeable batteries, it is necessary to charge for 12 plus hours. (2) The unit can still work during charging with the adapter. (3) Do not charge alkaline batteries to avoid explosion. (4) Used (discharged) batteries are hazardous waste and should be disposed of properly.

  • Page 8: Using The Product

    7. Using the Product Operating Panel Instrument Panel Remote Control Panel Power On/Off 1. Press the power button to power on. The power indicator lamp will light up and then the instrument will automatically level itself, with rotation occurring once the unit is level. 2.
  • Page 9 Height of Instrument (H.I.) - TILT 1. After powering on the instrument and entering into auto-level status, press the tilt button. When the indicator is on (see figure), the instrument enters into TILT mode. If the leveled instrument is moved or bumped, the head will stop rotation and the TILT indicator light and laser beam will flash instead of the unit performing the auto-level function.
  • Page 10 Adjust the inclination extent of the slope Pressing the up/down arrow keys on the remote control, will adjust the inclination of the instrument slope. A single press will cause a slight adjustment and a continuous presses will cause a quick adjustment. If laser is taken past its slope range (±8º), the laser will deliver an audible alarm and the laser beam will flash and stop rotating.
  • Page 11 Detector Usage 1. Product Description A laser detector is an indispensable accessory when using this rotary laser level. The main function of the detector is to locate the position of laser signals transmitted by rotary lasers. This detection quickly and precisely provides the user with the horizontal reference. This product features a high level of sensitivity, a double-faced display, low power consumption, reliability and easy use.

  • Page 12: Accuracy Self-Check

    8. Self-Check and Calibration IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. The instrument must be self-checked before operation. If the accuracy is found beyond tolerance, user can make some adjustment according to directions as follows.
  • Page 13 X-direction self-check with the same method as Y-direction self-check, and mark point C and point D by turns. 7. If point C and point D are within 1/32” at 50’, the accuracy is within tolerance. Otherwise reference section 12 of this document.
  • Page 14 Adjust laser beam to reference position Press the up/down arrow buttons on the remote con- trol to adjust the laser beam to reference position. Confirm calibration value Press ‘ENT’ button on the remote control to confirm self-calibration value. The X direction self-cali- bration indicator light will extin- guish after pressing this button.

  • Page 15: Technical Specifications

    Confirm calibration value Press ‘ENT’ button on the remote control to confirm self-calibration value. The Y direction self-calibration indicator light will extinguish after pressing this button. Note: In order to make the calibration effective, you must power off the instrument after the calibration, and then power it on again. Y-axis accuracy check is a necessity after X-axis calibration, and X-axis accuracy check is also a necessity after Y-axis calibration.

  • Page 16: Application Demonstrations

    10. Application Demonstrations Grading Squaring Leveling Set Forms Elevation ©2007 Johnson Level & Tool...

  • Page 17: Care And Handling

    11. Care and Handling This laser unit is a precision tool that must be handled with care. • Avoid exposing unit to shock vibrations and extreme temperatures. • Before moving or transporting the unit, make sure that the unit is •...

  • Page 18: Product Warranty

    Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine Pro™ service center or Johnson Level & Tool's limited warranty, if applicable, will be void and there will be NO WARRANTY. Contact our Customer Service Department to obtain a Return Material Authorization (RMA) number for return to an authorized service center.

  • Page 19: Product Registration

    14. Accessories AccuLine Pro™ accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.
  • Page 20 ©2007 Johnson Level & Tool...
