AccuLine 40-6926 Instruction Manual

26x automatic level
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1316H-English
7/10/08
9:45 AM
Page 1
®

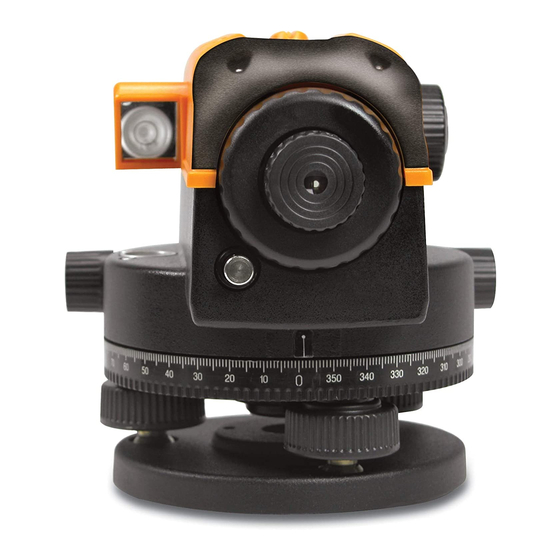

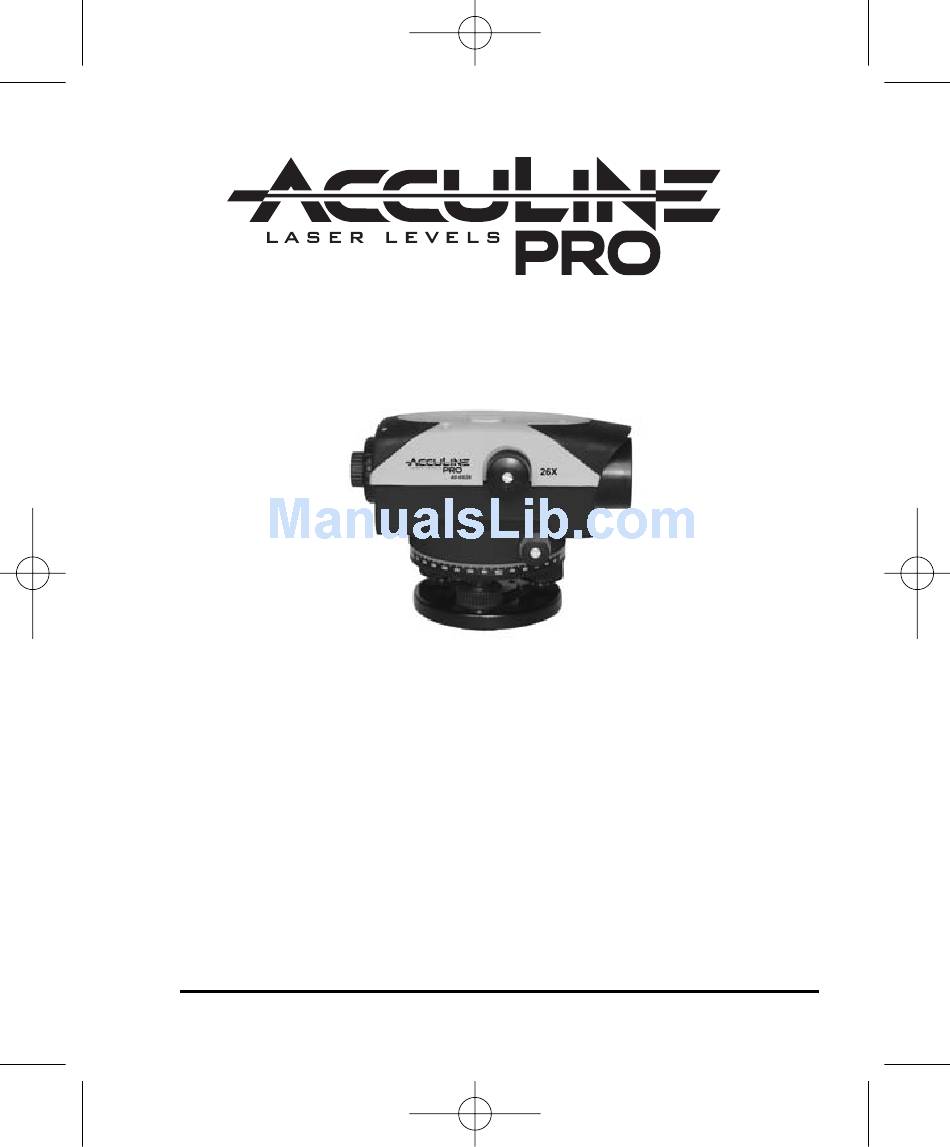

26X Automatic Level
Model No. 40-6926
Instruction Manual
Congratulations on your choice of this 26X Automatic Level. We
suggest you read this instruction manual thoroughly before using
the instrument. Save this instruction manual for future use.
©2008 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6926 and is the answer not in the manual?

Questions and answers

Related Manuals for AccuLine 40-6926

Summary of Contents for AccuLine 40-6926

  • Page 1 9:45 AM Page 1 ® 26X Automatic Level Model No. 40-6926 Instruction Manual Congratulations on your choice of this 26X Automatic Level. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.
  • Page 2 1316H-English 7/10/08 9:45 AM Page 2 Table of Contents 1. Kit Contents Technical Specifications 2. Features and Functions Care and Handling 3. Location of Parts/Components Product Warranty 4. Operating Instructions Product Registration 5. Calibration 10. Accessories 1. Kit Contents Description Qty.
  • Page 3 1316H-English 7/10/08 9:45 AM Page 3 3. Location of Part/Components Circular bubble vial Eyepiece cover observation prism Eyepiece Circular bubble vial focusing knob Horizontal circle Leveling screw Adjusting screws for circular bubble vial Compensator Horizontal circle check button reference mark Optical sight Focusing knob Objective lens...

  • Page 4: Operating Instructions

    1316H-English 7/10/08 9:45 AM Page 4 4. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Set-Up Set the tripod up level and in a comfortable position to view through the telescope.
  • Page 5 1316H-English 7/10/08 9:45 AM Page 5 Reading measurements using a Leveling Rod Height reading Read the rod where it is intersected by the horizontal hair. For example, the height reading in Figure 1 is 2.0 ft. Fig. 1 Distance Measurement Read the rod where it is intersected by the upper and lower stadia hairs.
  • Page 6 1316H-English 7/10/08 9:45 AM Page 6 5. Calibration 5.1 Compensator Check Button Check the compensator for proper operation before use or anytime the operation of the instrument is in question. Push and release the compensator check button to shake the compensator. The compen- sator should return to the exact horizontal position sighted before the check button was pressed.
  • Page 7 1316H-English 7/10/08 9:45 AM Page 7 5.3 Line-of-Sight The line-of-sight needs to be horizontal within 3mm of level to be accurate. Set up and level the instrument on a tripod midway between two leveling rods set approximately 100 ft. to 160 ft. (30m to 50m) apart. Sight rods A and B;...

  • Page 8: Technical Specifications

    1316H-English 7/10/08 9:45 AM Page 8 6. Technical Specifications Telescope Erect Magnification Leveling accuracy ± 1/16"/200 ft. (±1.5mm/160m) Working range Up to 350’ (100m) Clear objective aperture 40 mm Field of view 1º 30’ Shortest focusing distance 0.0315” (0.8m) Stadia ratio Stadia addition Water resistant Sensitivity of bubble...

  • Page 9: Care And Handling

    Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine Pro® service center or Johnson Level & Tool's limited warranty, if applicable, will be void and there will be NO WARRANTY.

  • Page 10: Product Registration

    1316H-English 7/10/08 9:45 AM Page 10 NOTE: The user is responsible for the proper use and care of the product. It is the responsibility of the user to verify the calibration of the instrument before each use. For further assistance, or if you experience problems with this product that are not addressed in this instruction manual, please contact our Customer Service Department.
  • Page 11 10. Accessories AccuLine Pro® accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.
  • Page 12 1316H-English 7/10/08 9:45 AM Page 12 ©2008 Johnson Level & Tool...
