NOTE: If your computer
does not have a serial port,
and only offers USB,
adapters are generally
available from computer
parts suppliers.
3 - 1 4

WIRING TO A COMPUTER

The DB-9 connector labeled "PC" connects the Eclipse-32 matrix to an external
computer. This connector is located on the Eclipse-32 matrix's front panel.
To connect a computer to the matrix, run cable from the matrix's "PC"
connector to the PC's serial port. The maximum recommended length of the
cable is approximately 10 feet (3 meters).

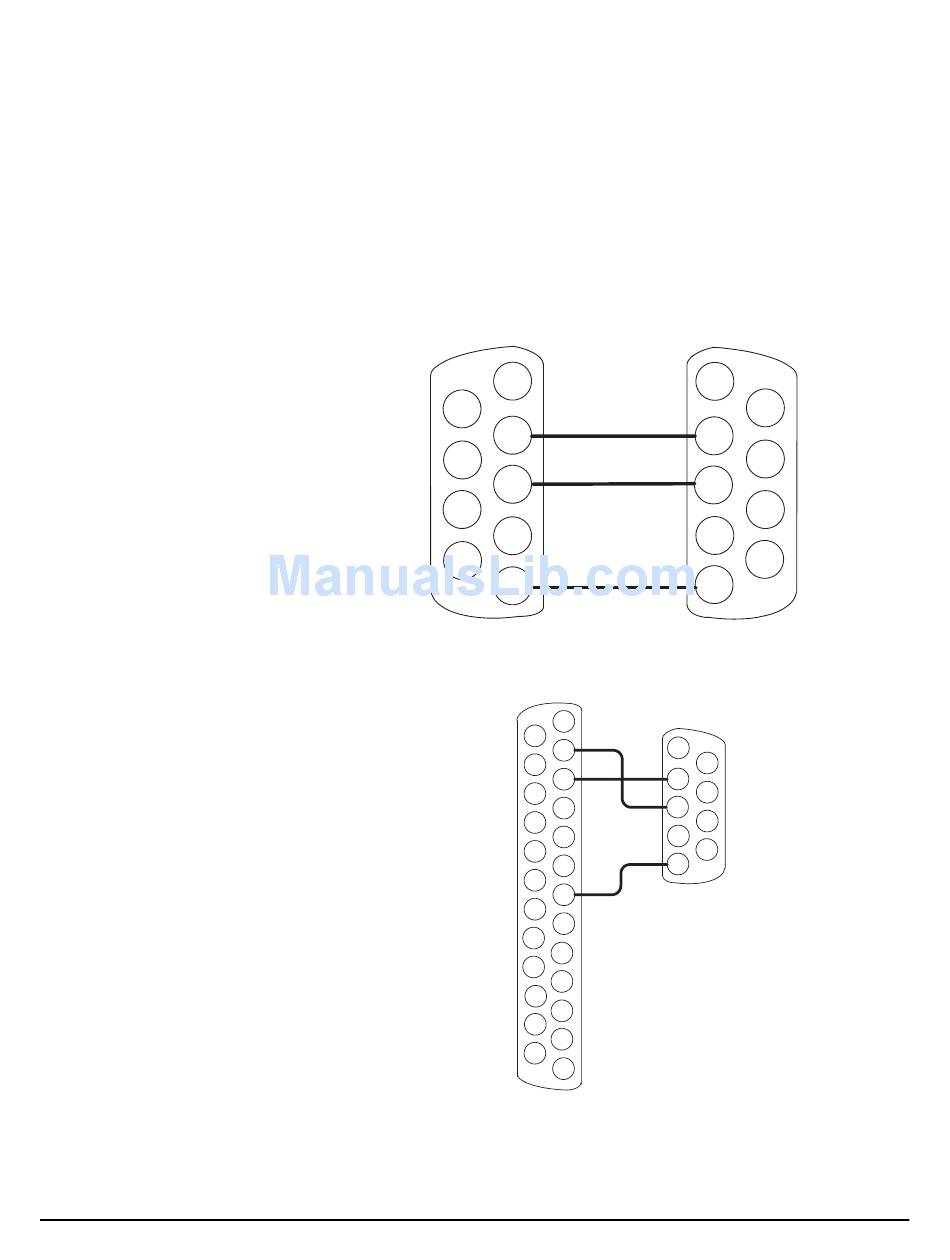

A computer has either a 9-pin serial port or a 25-pin serial port. Figure 13 shows
the wiring for a 9-pin port. Figure 14 shows the wiring for a 25-pin port.
Computer Serial Port DB-9F
Cable Connector
6
7
8
9
Figure 13: Wiring the Matrix DB-9M to a DB-9F Computer Serial Port Connector
Computer Serial Port
DB-25F Cable
Connector
Figure 14: Wiring the Matrix DB-9M to a DB-25F Computer Serial Port Connector
1
Receive (RXD)
2
Transmit (TXD)
Transmit (TXD)
3
Receive (RXD)
4
Ground (GND)
5
1
14
Transmit (TXD)
1
2
15
Receive (RXD)
3
2
Transmit (TXD)
16
4 3
Receive (RXD)
17
5 4
18
Ground (GND)
5
6
19
7
20
8
21
9
22
10
23
11
24
12
25
13
E C L I P S E - 3 2 M A T R I X I N S T R U C T I O N M A N U A L
Matrix Frame
"IBM-PC RS-232"
DB-9M Cable Connector
1
6
2
7
3
8
4
9
5
Eclipse Frame
"IBM-PC RS-232"
6
DB-9M Cable
Connector
7
8
9
