3 - 1 2
GPI-6 I/O DB-9M
1
6
2
7
3
8
4 X
9
5

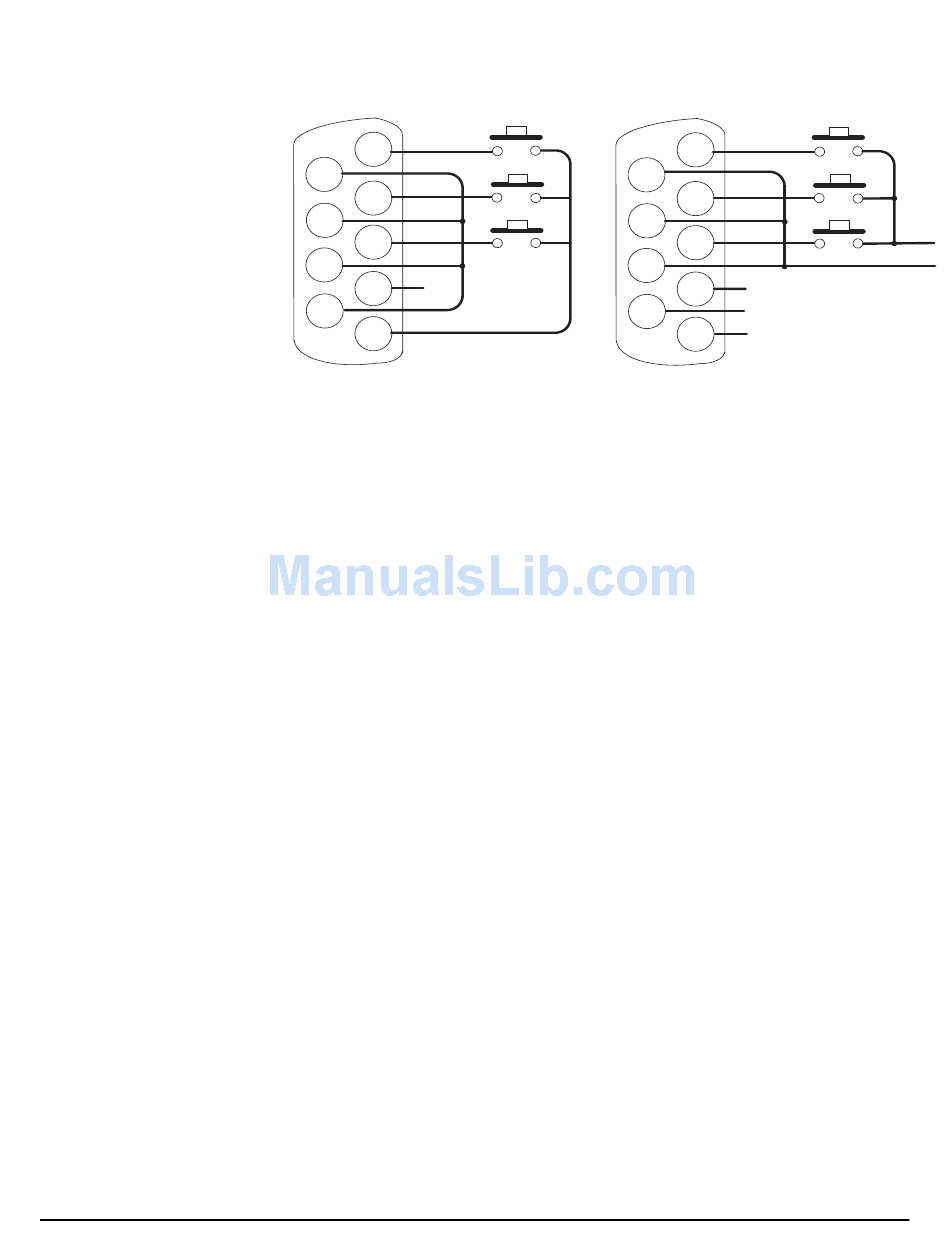

Figures 10 and Figure 11 show how to connect switches or contacts using the
power source provided by the GPI-6 module or powering switches from external
sources. Each input can be wired to be isolated from each other as a further
variation.
IMF-102 Interface Module Frame Wiring
The wiring of a GPI-6 interface that is placed in an IMF-102 interface frame is
the same as the wiring for a GPI-6 interface placed in an IMF-3 interface frame.
The only difference is that an IMF-102 interface frame houses only two
interfaces, and they are mounted horizontally rather than vertically in the frame.
Refer to the respective manuals for these interfaces and frames in the Eclipse
manual set for more information.
Configuration
To define an input function, use the Eclipse Configuration System program, as
described in its manual.
1
6
2
7
3
8
4
9
5
Figure 11: GPI-6 Application Examples
E C L I P S E - 3 2 M A T R I X I N S T R U C T I O N M A N U A L
GPI-6 I/O DB-9M
X
X
X
