WIRING THE MATRIX TO REMOTE DEVICES

The matrix holds the circuitry for connecting to, and communicating with, the
following:
• Thirty-two intercom stations or interfaces
• Eight general purpose outputs (GPOs or relays)
• Eight general purpose inputs (GPIs)
• Up to ten external GPI/RLY interfaces
• An additional Eclipse-32 matrix to form a 64-port linked system
• A local area network (LAN) connection for Ethernet-based communication
with a network
• An external computer
The following sections describe the wiring for these connections.
NOTE: The instruction manual Installing an Eclipse Matrix System: An Overview
gives complete details about wiring remote devices to the matrix. The Overview
manual also discusses RJ-45 cables and other types of cable required for system
installation.
1
1 Two IEC AC power input connectors,
(1 per power-supply unit )
2 RJ-45 port connectors (36)
3 General purpose outputs connector
(male, 25-pin, D-type)
4 General purpose inputs connector
(female, 25-pin, D-type)

WIRING TO AC MAINS POWER

1
The Eclipse-32 matrix has two IEC mains AC power connectors that provide
separate power inputs for the redundant power supplies. If you connect each AC
input to a different mains AC branch, one power supply will continue to operate
if the other supply's main AC branch fails.
2
5 GPI/RLY interface connector (RJ-45)
6 Base loop connector (RJ-45)
7 LAN connector (RJ-45)

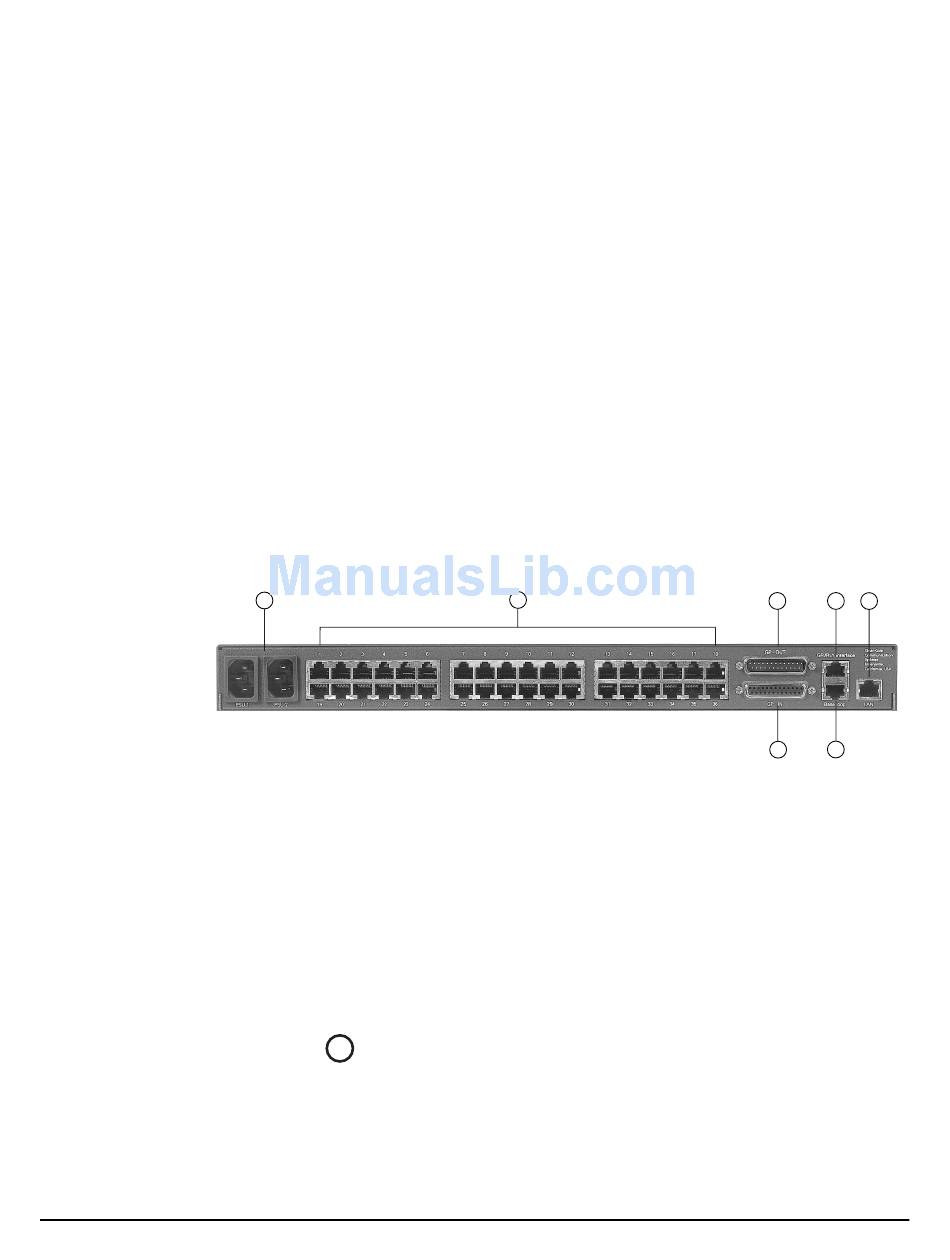

Figure 1: Wiring Interfaces to Rear-Panel Connectors
