Single-Pair Digital

Single-pair digital wiring is accomplished with double-shielded 24 AWG
conductor CAT-6E enhanced STP cable. Pair 1 transmits and receives
multiplexed digital and analog between the matrix frame and the station.
Note: Ensure that the "select" switch on the station's rear panel is in the correct
position for the intended use.
ATT-T568B (Modular Jumpers Wired One to One)
Matrix Frame End
No Connection (NC)
No Connection (NC)
No Connection (NC)
Multiplexed Data/Audio
Multiplexed Data/Audio
No Connection (NC)
No Connection (NC)
No Connection (NC)
Pair 2
1
2
Pair 1
3
4
Pair 3
5
6
Pair 4
7
8

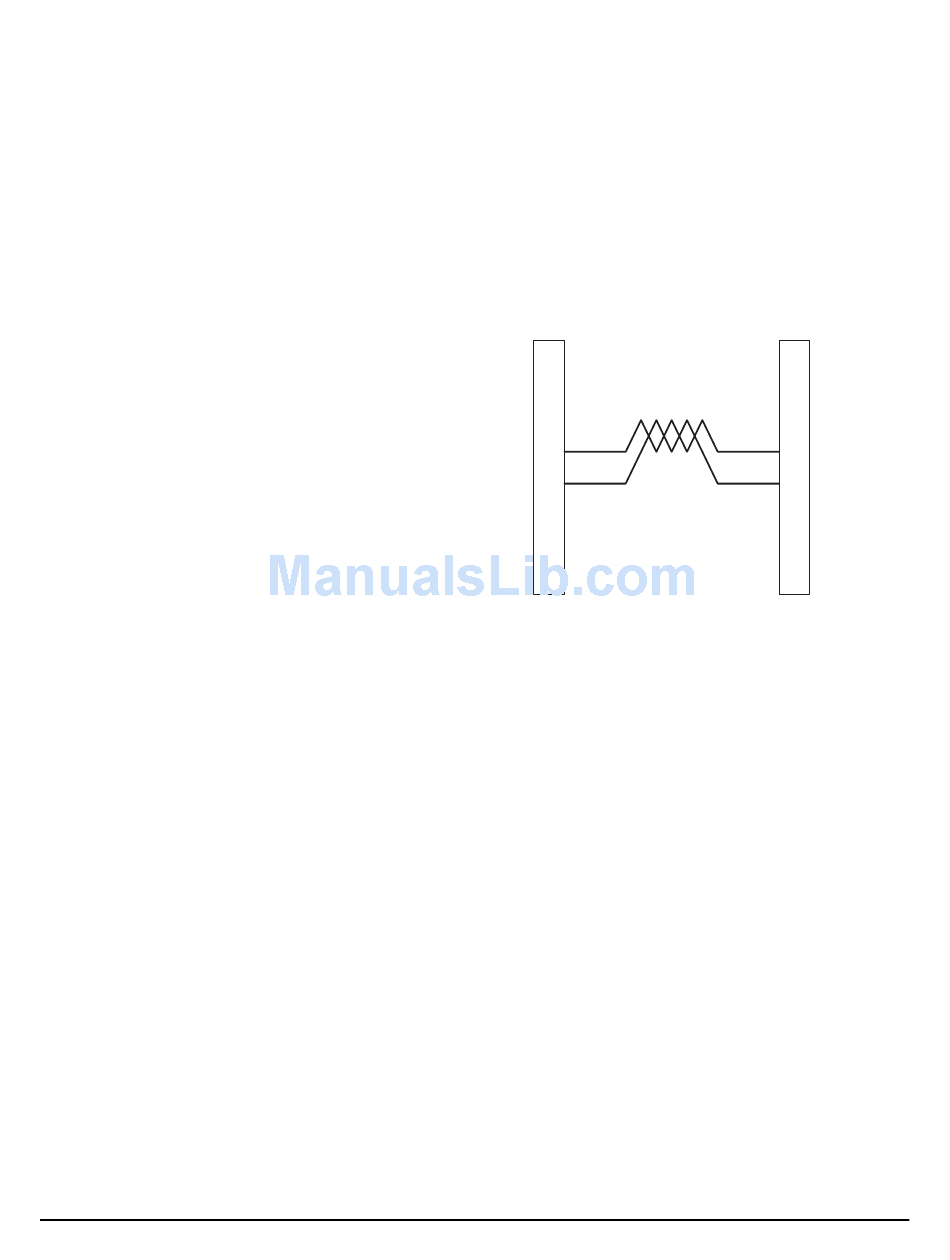

Figure 3: Wiring Matrix to Digital Station Using RJ-45
E C L I P S E - 3 2 M A T R I X I N S T R U C T I O N M A N U A L
Station End
1
2
3
4
5
6
7
8
