DB-25 Female Connector
PIN
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
3 - 8
Pin Assignments for General-Purpose Inputs Connector
DESCRIPTION
Logic Input 1
Logic Input 3
Logic Input 5
Logic Input 7
N/A
N/A
N/A
N/A
Ground
Ground
Ground
Ground
Ground
Logic Input 2
Logic Input 4
Logic Input 6
Logic Input 8
N/A
N/A
N/A
N/A
Voltage In+
Voltage In+
Voltage In–
Voltage In–
Logic Input 1
Logic Input 2
Logic Input 3
Logic Input 4
Ground
Ground
Ground
Ground
Ground

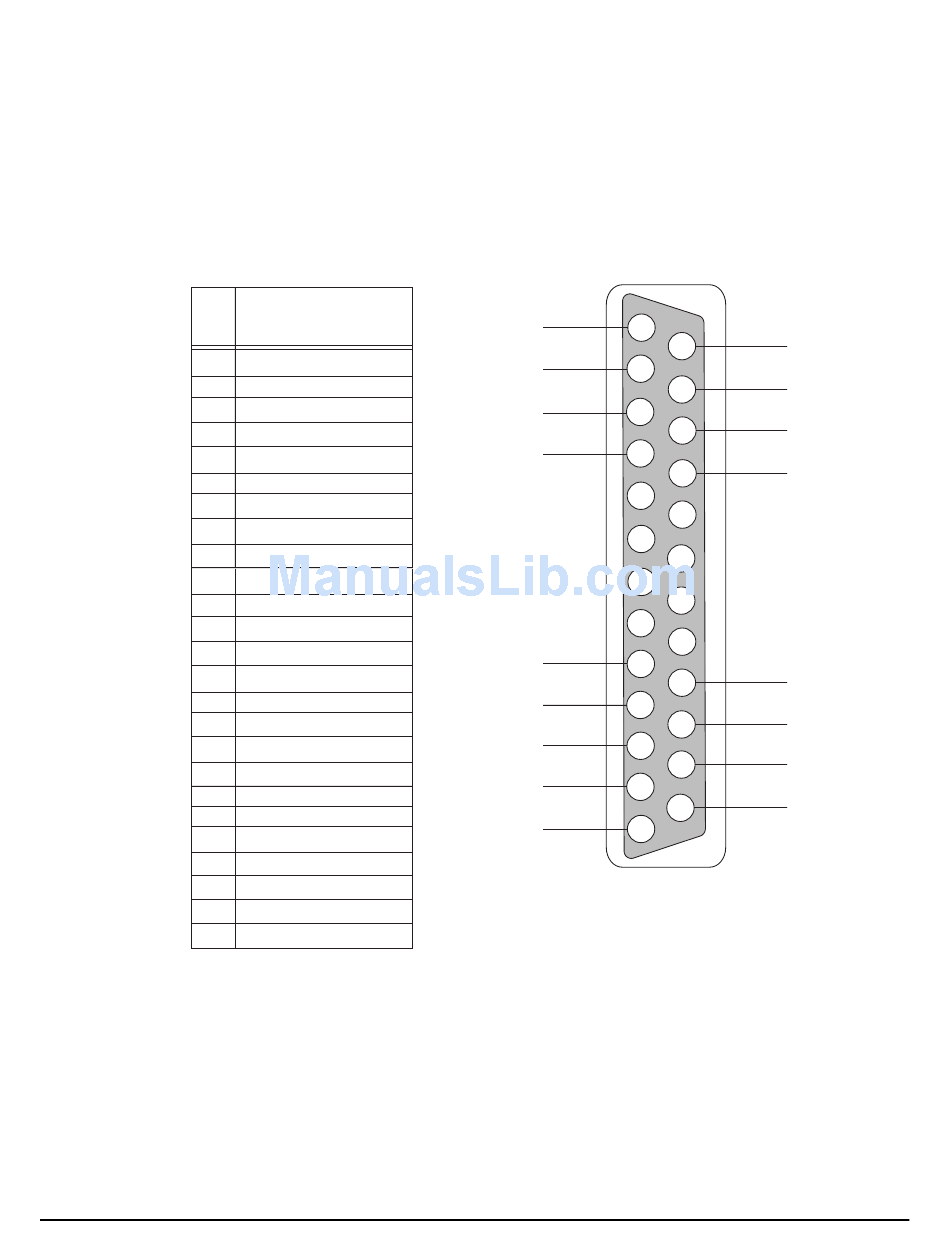

Figure 7: Pin Assignments for Eclipse-32 General-Purpose Inputs Connector
E C L I P S E - 3 2 M A T R I X I N S T R U C T I O N M A N U A L
1
Logic Input 5
14
2
Logic Input 6
15
3
Logic Input 7
16
4
Logic Input 8
17
5
18
6
19
7
20
8
21
9
V IN+
22
10
V IN+
23
11
V IN–
24
12
V IN–
25
13
