No parts of the Eclipse -32
matrix are removable
without taking the unit out
of service.
E C L I P S E - 3 2 M A T R I X I N S T R U C T I O N M A N U A L
OPERATING AN ECLIPSE-32
MATRIX

STORING AND RETRIEVING CONFIGURATIONS

A "configuration" is a complete set of operating parameters for the matrix system
which includes talk and listen paths for each connected intercom station.
Depending upon the remote interfaces installed, the configuration can also
include more sophisticated features such as paging, call signaling, interrupt
foldback (IFB), ISO, groups, automatic DTMF dialing, routing, and many other
features.
You create a configuration in the Eclipse Configuration System programming
software and then upload the configuration to the Eclipse-32 matrix's operational
memory through the software. The Eclipse-32 matrix's operational memory
holds up to four complete configurations. From the controls on the matrix's front
panel, you select which configuration to apply at any given time.
In the event of a power failure, the Eclipse-32 system can automatically restore
itself to full functioning by retrieving configuration information from its
non-volatile operational memory.

FRONT-PANEL CONTROLS AND LIGHTS

2
4
1 3 5
1 PC connector for computer
2 Reset button
3 OK light
4 Configuration ("config") button to
select among onboard configurations

PC CONNECTOR

1
The female 9-pin D-type socket labeled "PC" connects the matrix to an external
computer.
6 8
7
5 Configuration status lights to indicate currently active
configuration
6 Power supply alarm lights (1 and 2)
7 LAN status lights
8 Port status lights

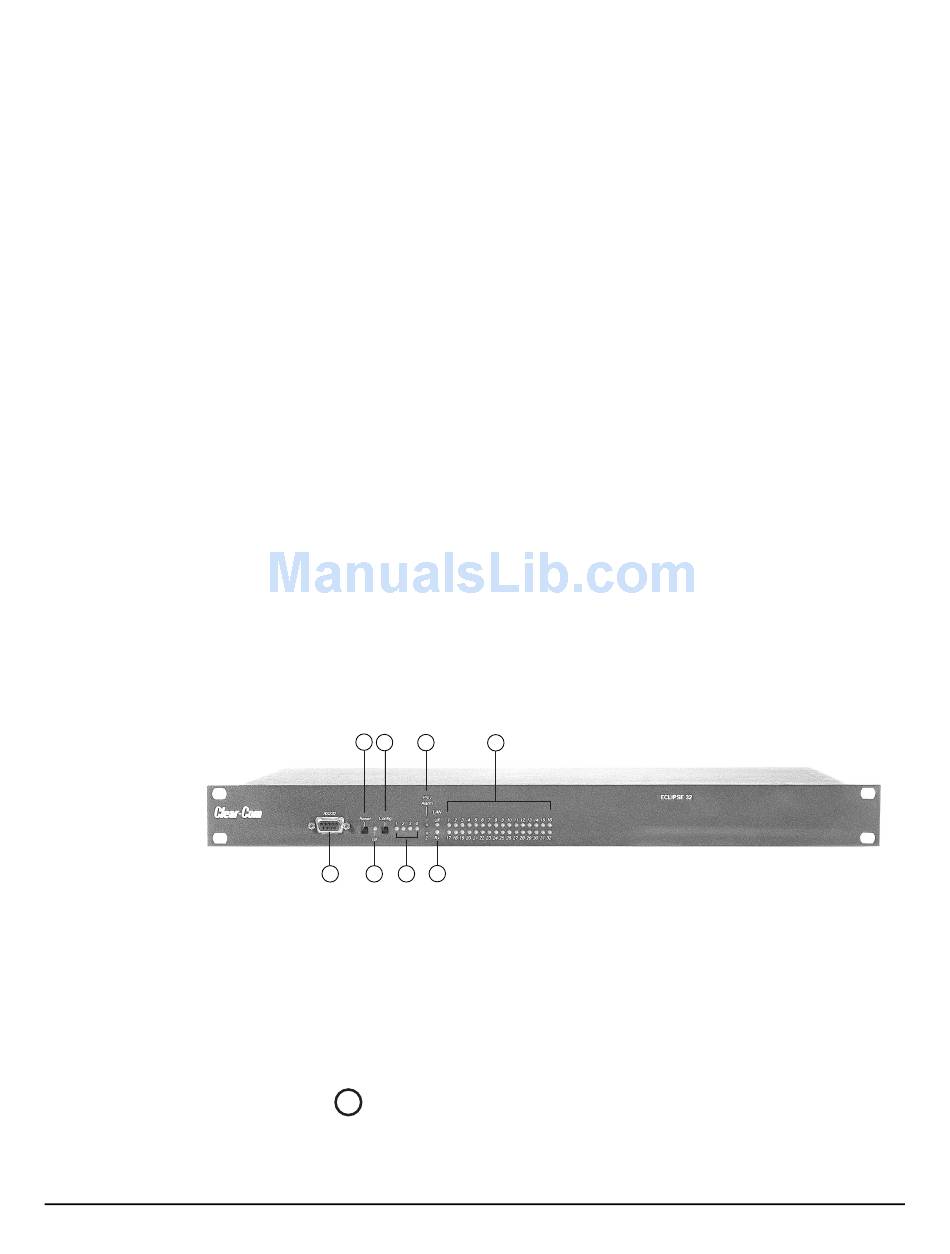

Figure 1: Front Panel of Eclipse-32 Matrix
2 - 1
