The Back Panel - TP-Link Archer C2600 User Manual

Chapter 1
Name
(Internet)
(Wireless 2.4GHz)
(Wireless 5GHz)
(LAN)
(WPS)
(USB)
Note:
After a device is successfully added to the network by WPS function, the WPS LED will keep on for about 5 minutes
and then turn off.
1. 3. 2.

The Back Panel

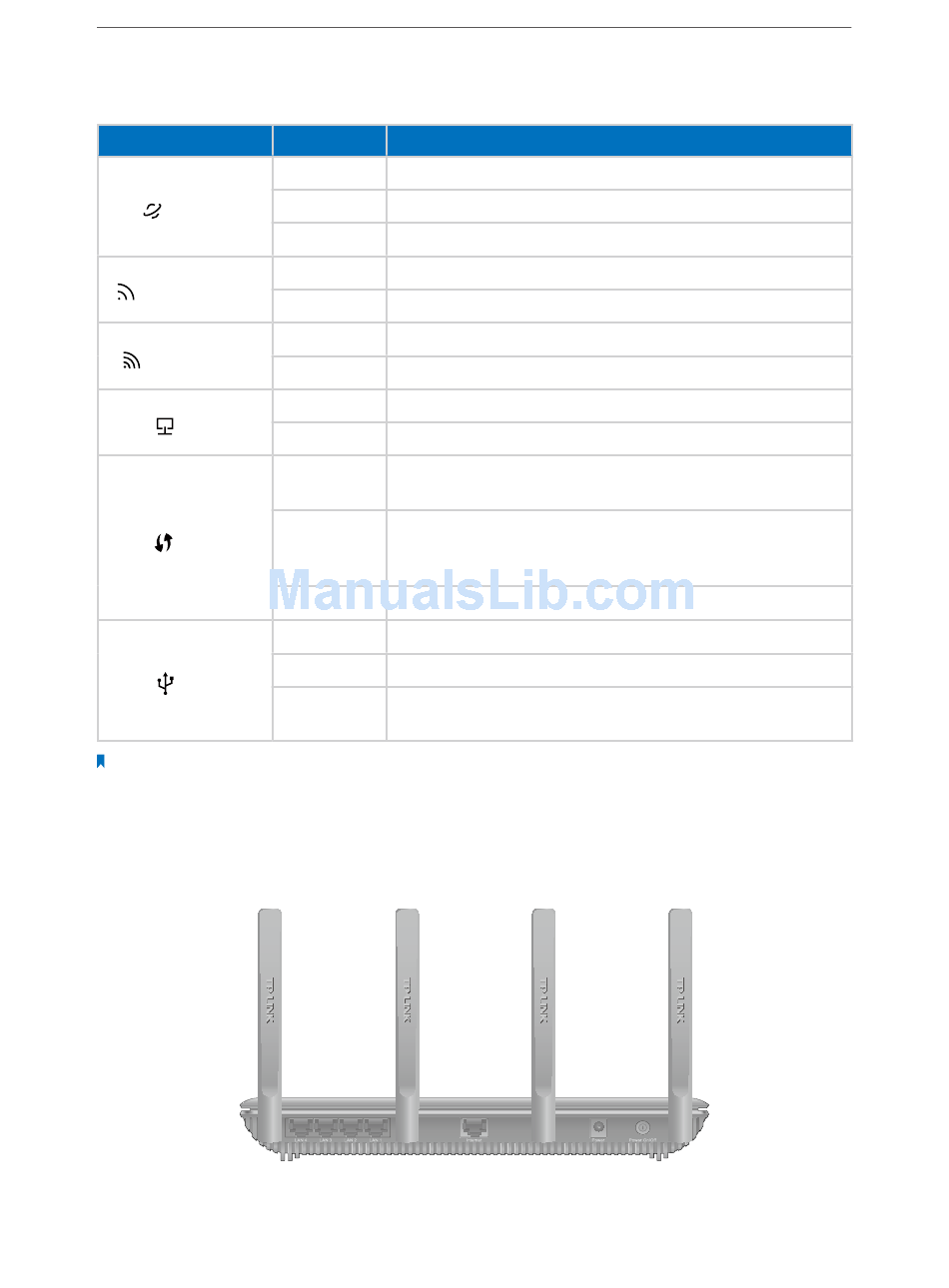

The router's back panel shows the connection ports, buttons and antennas (view from
left to right). Refer to the following for detailed instructions.
LED Explanation
Status
White The router is connected to the Internet.
Orange The WAN port is connected, but there is no Internet connection.
Off The WAN port is not connected.
On The wireless 2.4GHz band is working properly.
Off The wireless 2.4 GHz band is disabled.
On The wireless 5GHz band is working properly.
Off The wireless 5GHz band is disabled.
On At least one LAN port is connected.
Off No LAN port is connected.
A wireless device has been successfully added to the network by
On
WPS function.
WPS handshaking is in process and will continue for about 2 minutes.
Flashing Please press the WPS button on other wireless devices that you want
to add to the network while the LED is flashing.
Off
The router is not in the WPS process.
On The USB device is identified and ready to use.
Flashing The USB device is being identified.
No USB device is plugged into the USB port or the USB device is not
Off
identified or USB device has been safely ejected.
Get to Know About Your Router
Indication
6
