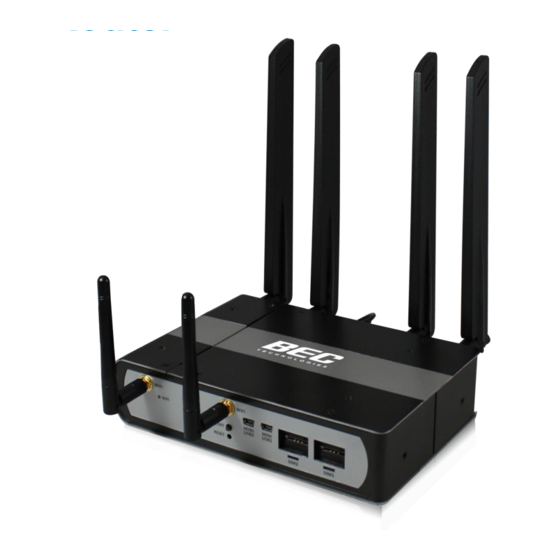

BEC MX-1000 User Manual

Advanced in-vehicle 4g/lte wireless m2m router
Hide thumbs Also See for MX-1000:
Table of Contents

Advertisement

Quick Links

Download this manual

User Manual

BEC MX-1000
Advanced In-Vehicle 4G/LTE
Wireless M2M Router
Last revised: June, 2015
Version release: v1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-1000 and is the answer not in the manual?

Questions and answers

Related Manuals for BEC MX-1000

Summary of Contents for BEC MX-1000

  • Page 1: User Manual

    User Manual BEC MX-1000 Advanced In-Vehicle 4G/LTE Wireless M2M Router Last revised: June, 2015 Version release: v1.00...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS CHAPTER 1: INTRODUCTION ......1 .............. 1 NTRODUCTION TO YOUR OUTER & S ..............3 EATURES PECIFICATIONS ..............6 ARDWARE PECIFICATIONS ................. 7 PPLICATION IAGRAMS CHAPTER 2: PRODUCT OVERVIEW ....8 ..........8 MPORTANT OTE FOR SING OUTER ................
  • Page 3 GPS Status ....................... 34 Hardware Monitor ..................34 Statistics ......................35 DHCP Table ...................... 39 Disk Status ....................... 39 ..................40 UICK TART .................. 43 ONFIGURATION Interface Setup ....................43 Internet ........................44 LAN ..........................51 Wireless ........................55 Wireless MAC Filter ...................... 66 Advanced Setup ....................
  • Page 4 Problems with the Router ................104 Problem with LAN Interface ................104 Recovery Procedures ..................105 APPENDIX: PRODUCT SUPPORT & CONTACT ............... 106...

  • Page 5: Chapter 1: Introduction

    Management, and Smart Transportation/Bus. Vehicle Tracking System MX-1000 is embedded with a GNSS receiver for GPS or GLONASS. To co-work with On-Board Diagnostics(OBD) system, it eases the central control of geographically-dispersed fleets by presenting individual vehicles' detailed information, including remaining fuel levels, rapid accelerations, and locations.
  • Page 6 Secure VPN Connections (Optional) The MX-1000 supports comprehensive and robust IPSec VPN (Virtual Private Network) protocols for business users to establish private encrypted tunnels over the public Internet to secure data transmission between headquarters and branch offices. It also supports VPN dial in from smart phones for secure remote Internet connection via your home broadband.

  • Page 7: Features & Specifications

    • Designed to withstand hypothermia, heat and protect from shock, vibration, etc. High-speed Mobile Wireless Communication • Embedded Dual 4G/LTE module • High performance external antennas Global Navigation Satellite System (GNSS) • Embedded GNSS receiver for GPS or GLONASS • Active external antenna BEC MX-1000 User Manual...
  • Page 8 • 64 / 128 bits WEP supported for encryption • WPS (Wi-Fi Protected Setup) for easy setup • Wireless Security with WPA-PSK / WPA2-PSK support • Multiple wireless SSIDs with wireless guest access • Wireless client isolation • WDS repeater function support BEC MX-1000 User Manual...
  • Page 9 • Firmware upgrades and configuration data upload and download via web-based GUI • Supports DHCP server / client / relay • Supports SNMP v1, v2, v3, MIB-I and MIB-II • TR-069 supports remote management • Supports SNMP • Embedded 4G LTE module debugging and firmware upgrade BEC MX-1000 User Manual...

  • Page 10: Hardware Specifications

    • EWAN: Port#4 is a WAN / LAN configurable port for Broadband connectivity. • Factory default reset button • Wireless on/off and WPS push button • 4-pin power connector Physical Specifications • Dimensions (W*H*D): 7.25" x 1.91" x 5.31" (184.25mm x 48.5mm x 135mm) • Weight: 1.07kgs (2.36lbs) BEC MX-1000 User Manual...

  • Page 11: Application Diagrams

    The MX-1000 Advanced Industrial 4G/LTE Wireless VPN Router is a high-performance all-in-one wireless communications platform with advanced software enabling high availability, reliable and secure connectivity for mission critical applications. The MX-1000 is specifically designed to provide outstanding network efficiency and internet security for a wide range of applications and vertical machine-to-machine (M2M) market segments.

  • Page 12: Chapter 2: Product Overview

    Important Note for Using This Router  Do not use the router in high humidity or high temperature.  Do not use the same power source for the MX-1000 on other equipment.  Do not open or repair the case yourself. If the device becomes...

  • Page 13: Device Description

    Insert the mini SIM card (2FF) with the gold contact facing down. SIM Card Slots Push the mini SIM card (2FF) inwards to eject it * Power off the MX-1000 before inserting or removing the SIM card(s) BEC MX-1000 User Manual...
  • Page 14 Gigabit Ethernet Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when connecting to a PC or an office/home network of 10Mbps/ 100Mbps/ 1000Mbps (LAN 1 ~ 4) BEC MX-1000 User Manual...
  • Page 15 No signal and the 4G LTE module is in service No LTE module or LTE module fails Green Transmission speed is at Gigabit speed (1000Mbps) Gigabit Ethernet Orange Transmission speed is at 10/100Mbps (LAN 1 ~ 4) Blinking Data being transmitted/received BEC MX-1000 User Manual...

  • Page 16: System Recovery Procedures

    System Recovery Procedure & Cabling System Recovery Procedures The purpose is to allow users to restore the MX-1000 to its initial stage when the device is outage, upgraded to a wrong / broken firmware, cannot access to the GUI with wrong username and/or password, etc.

  • Page 17: Chapter 3: Basic Installation

    PC’s network components. The TCP/IP protocol stack and Ethernet network adapter must be installed. If not, please refer to your Windows-related or other operating system manuals. Any TCP/IP capable workstation can be used to communicate with or through the MX-1000. To configure other types of workstations, please consult the manufacturer’s documentation. Attention...

  • Page 18: Network Configuration - Ipv4

    Then click on Network and Internet. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-1000 User Manual...
  • Page 19 In the TCP/IPv4 properties window, select the Obtain an IP address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-1000 User Manual...

  • Page 20: Configuring Pc In Windows Vista (Ipv4)

    Center at the top bar. When the Network Sharing Center window pops up, select and click on Manage network connections on the left window pane. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-1000 User Manual...
  • Page 21 Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-1000 User Manual...

  • Page 22: Configuring Pc In Windows Xp (Ipv4)

    Configuring PC in Windows XP (IPv4) 1. Go to Start. Click on Control Panel. 2. Then click on Network and Internet. 3. In the Local Area Connection Status window, click Properties. 4. Select Internet Protocol (TCP/IP) and click Properties. BEC MX-1000 User Manual...
  • Page 23 Basic Installation Windows XP (IPv4) 5. Select Obtain address automatically and the Obtain DNS server address automatically radio buttons. 6. Click OK to finish the configuration. BEC MX-1000 User Manual...

  • Page 24: Network Configuration - Ipv6

    Then click on Network and Internet. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-1000 User Manual...
  • Page 25 In the TCP/IPv6 properties window, select the Obtain an IPv6 address automatically Obtain Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-1000 User Manual...

  • Page 26: Configuring Pc In Windows Vista (Ipv6)

    Center at the top bar. When the Network and Sharing Center window pops up, select and click Manage network connections on the left window pane. Select the Local Area Connection, and right click the icon to select Properties. BEC MX-1000 User Manual...
  • Page 27 Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting. Click OK again in the Local Area Connection Properties window to apply the new configuration. BEC MX-1000 User Manual...

  • Page 28: Configuring Pc In Windows Xp (Ipv6)

    1. On the Desktop, Click Start > Run, type cmd, then press Enter key in the keyboard, the following screen appears. 2. Key in command ipv6 install Installation of IPv6 is now completed. Please test it to see if it works or not. . BEC MX-1000 User Manual...

  • Page 29: Default Settings

    Caution: After pressing the RESET button for more than 6 seconds then release it, to be sure you power cycle the device again. Device LAN IP Settings IP Address: 192.168.1.254 Subnet Mask: 255.255.255.0 DHCP Server: DHCP server is enabled. Start IP Address: 192.168.1.100 IP pool counts: 100 BEC MX-1000 User Manual...

  • Page 30: Chapter 4: Device Configuration

    The default username and password is “admin” and “admin” respectively for the Administrator. For the User account, default username and password is “user” and “user”. NOTE: This username / password may vary by different Internet Service Providers. Congratulations! You have successfully logged on to your MX-1000 BEC MX-1000 User Manual...
  • Page 31 Login to Your Device Once you have logged on to your MX-1000 via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the...

  • Page 32: Status

    Device Configuration Status Status In this section, you can check the router working status, including Device Info, System Log, 4G LTE Status, GPS Status, Hardware Monitor, Statistics, DHCP Table, and Disk Status BEC MX-1000 User Manual...

  • Page 33: Device Info

    Model Name: Name of the router for identification purpose. Firmware Version: Software version currently loaded in the router MAC Address: A unique number that identifies the router Data Time: Setup correct time on the MX-1000 with your PC. Check on Time Zone section for more configuration information.
  • Page 34 Mode: Display selected Wireless mode. SSID: Display the name of the Wireless AP(s) to use Channel: Display radio frequency to be used for this wireless link Security: Display security method to be used for this wireless link BEC MX-1000 User Manual...

  • Page 35: System Log

    Device Configuration Status – System Log System Log In system log, you can check the operations status and any glitches to the router. Refresh: Press this button to refresh the statistics. BEC MX-1000 User Manual...

  • Page 36: 3G/4G-Lte Status

    Network Mode / Band: Show the using network mode and LTE band. Usage Allowance >> click “Usage To enable this feature, please go to Configuration >> Interface Setup >> Internet Allowance” >> enable “Save the statistics to ROM” BEC MX-1000 User Manual...
  • Page 37 Billing Cycle: Display the start date and number of days remaining in current billing cycle Clean: Reset current saved mobile usage Save: Click to save current mobile status to ROM Refresh: Click to refresh this page. BEC MX-1000 User Manual...

  • Page 38: Gps Status

    Status – GPS Status & Hardware Monitor GPS Status In GPS status, you can check the UTC time, position of the router. Hardware Monitor In hardware monitor, you can check the voltage, current and temperature of system. BEC MX-1000 User Manual...

  • Page 39: Statistics

    Receive Total Frames: Display the total number of frames received until the latest second since system is up. Receive Total Bytes: Display the total frames received till the latest second since system is up. Refresh: Click to refresh this page. BEC MX-1000 User Manual...
  • Page 40 Receive Total Bytes: Display the number of bytes received until the latest second. Receive CRC Errors: Display the number of error packets on this port. Receive Under-size Frames: Display the number of under-size frames received until the latest second. Refresh: Click to refresh this page. BEC MX-1000 User Manual...
  • Page 41 Receive Total Bytes: Display s the number of bytes received until the latest second. Receive CRC Errors: Display the number of error packets on this port. Receive Under-size Frames: Display the number of under-size frames received until the latest second. Refresh: Click to refresh this page. BEC MX-1000 User Manual...
  • Page 42 Receive Frames: Display the number of frames received until the latest second. Receive Error Frames: Display the number of error frames received until the latest second. Receive Drop Frames: Display the number of drop frames received until the latest second. Refresh: Click to refresh this page. BEC MX-1000 User Manual...

  • Page 43: Dhcp Table

    Expire Time: The total remaining interval since the IP assignment to the PC. Disk Status Partition: Display the USB storage partition. Disk Space (KB): Display the total storage space of the NAS in Kbytes unit. Free Space (KB): Display the available space in Kbytes unit. BEC MX-1000 User Manual...

  • Page 44: Quick Start

    Set new password of the “admin” account to access for router management. The default is “admin”. Once changed, please use this new password next time when accessing to the router. Click NEXT to continue. Step 2 – Time Zone Choose your time zone. Click NEXT to continue. Step 3 – Wireless BEC MX-1000 User Manual...
  • Page 45 4.2(1) If selected 4G LTE-1 or 4G LTE-2 Input all relevant 3G/4G-LTE parameters from your ISP. Click Next to continue. 4.2(2) If selected EWAN / PPPoE, please enter PPPoE account information provided by your ISP. Click NEXT to continue. BEC MX-1000 User Manual...
  • Page 46 The Setup Wizard has completed. Click on BACK to make changes or correct mistakes. Click NEXT to save the current settings and complete the Quick Start setups. Go back to the Status > Device Info to view the status. BEC MX-1000 User Manual...

  • Page 47: Configuration

    Click to access and configure the available features in the following: Interface Setup, Advanced Setup, Access Management, and Maintenance. These functions are described in the following sections. Interface Setup Here are the features under Interface Setup: Internet, LAN, Wireless, and Wireless MAC Filter BEC MX-1000 User Manual...

  • Page 48: Internet

     Time-based control the flow by providing specific hours per month. The billing period begins on: the beginning day of billing each month. Over usage allowance action: Here are actions to perform when mobile data usage, defined in BEC MX-1000 User Manual...
  • Page 49 Only”, “UMTS 3G Preferred”, “GSM 2G Preferred”, “GSM and UMTS Only”, “LTE Only”, “GSM, UMTS, LTE”. If you are not sure which mode to use, you may select Automatic to auto detect the best mode for you. BEC MX-1000 User Manual...
  • Page 50 NAT to grant multiples devices in LAN to access to the Internet through a single WAN IP. When router’s Internet configuration is finished successfully, you can go to the Status to check connection information. Click Save to apply the settings. BEC MX-1000 User Manual...
  • Page 51 Status: Select to enable or disable the service. IPv4/IPv6 IP Version: Choose IPv4, IPv4/IPv6, IPv6 based on your environment. If you don’t know which one to choose from, please choose IPv4/IPv6 instead. ISP Connection Type: ISP: Select the encapsulation type your ISP uses. BEC MX-1000 User Manual...
  • Page 52  Connect Manually: Select Connect Manually when you don't want the connection up all the time. TCP MSS Option: Enter the maximum size of the data that TCP can send in a segment. Maximum Segment Size (MSS). BEC MX-1000 User Manual...
  • Page 53 ISP (if given). Gateway: Enter the specific gateway IP address you get from ISP. NAT: Enable to allow MX-1000 to assign private network IPs to all devices in the network for get Internet access.
  • Page 54 MLD Proxy: MLD (Multicast Listener Discovery Protocol) is to IPv6 just as IGMP to IPv4. It is a Multicast Management protocol for IPv6 multicast packets. When router’s Internet configuration is finished successfully, you can go to status to get the connection information. Click Save to apply the settings. BEC MX-1000 User Manual...

  • Page 55: Lan

    Alias IP Address: This is for local networks virtual IP interface. Specify an IP address on this virtual interface. Alias IP Subnet Mask: Specify a subnet mask on this virtual interface. IGMP Snooping: Select Activated to enable IGMP Snooping function, Without IGMP snooping, BEC MX-1000 User Manual...
  • Page 56  If set to Disabled, the DHCP server will be disabled.  If set to Relay, the MX-1000 acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients. Enter the IP address of the actual, remote DHCP server in the Remote DHCP Server field in this case.
  • Page 57 RA mode, to obtain the prefix message and generate an address using a combination of locally available information (MAC address) and information (prefix) advertised by routers, but they can obtain such information like DNS from DHCPv6 Server. BEC MX-1000 User Manual...
  • Page 58 Router Advertisement messages periodically which would multicast the IPv6 Prefix information (similar to v4 network number 192.168.1.0) to all LAN devices if the field is enabled. We suggest enabling this field. Click Save to apply the settings. BEC MX-1000 User Manual...

  • Page 59: Wireless

    This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to the wired LAN. BEC MX-1000 User Manual...
  • Page 60 - that is, it is forwarded to all ports. With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that group.” BEC MX-1000 User Manual...
  • Page 61 Wi-Fi network for a residential or an office setting. WPS supports 2 types of configuration methods which are commonly known among consumers: Method (Personal Information Number) & PBC Method (Push Button Configuration). BEC MX-1000 User Manual...
  • Page 62 You must configure all four keys, but only one key can be activated at any one time. The default key is key 1. Note: When you enable WPS function, this WEP function will be invalid. And if you select one of WEP-64Bits/ WEP-128Bits, the following prompt box will appear to notice you. BEC MX-1000 User Manual...
  • Page 63 AP. WDS Mode: select Activated to enable WDS feature and Deactivated to disable this feature. MAC Address: Enter the AP MAC addresses (in XX:XX:XX:XX:XX:XX format) of the peer connected Click Save to apply the settings. BEC MX-1000 User Manual...
  • Page 64 Interface Setup – Wireless (Example on WPS using PIN) Example: WPS using PIN Method (Personal Information Number) PIN Method – Configure MX-1000 as a Registrar 1. Jot down the client’s Pin (e.g. 04640776) from the WPS utility (e.g. Ralink Utility) 2.
  • Page 65 Device Configuration Interface Setup – Wireless (Example on WPS using PIN) 4. The client’s SSID and security setting will now be configured to match the SSID and security setting of the registrar, the MX-1000 router. BEC MX-1000 User Manual...
  • Page 66 PIN Method – Configure MX-1000 as an Enrollee 1. Jot down the AP PIN Code (e.g. 03454435) from the BEC 6300VNL. Press Start WPS. 2. Launch the wireless client’s WPS utility (e.g. Ralink Utility). Set the Config Mode as Registrar. Enter the PIN number in the PIN Code (e.g.
  • Page 67 Device Configuration Interface Setup – Wireless (Example on WPS using PIN) 3. The router’s (AP’s) SSID and security setting will now be configured to match the SSID and security setting of the registrar (client). BEC MX-1000 User Manual...
  • Page 68 2. Launch the wireless client’s WPS Utility (e.g. Ralink Utility). Set the Config Mode as Enrollee. Then press the WPS button and choose the correct AP (e.g. Billion_AP) from the WPS AP List section before pressing the PBC button to run the scan. BEC MX-1000 User Manual...
  • Page 69 3. When the PBC button is pushed, a wireless communication will be established between your router and the PC. The client’s SSID and security setting will now be configured to match the SSID and security setting of the router. BEC MX-1000 User Manual...

  • Page 70: Wireless Mac Filter

    Select Allow to permit access to the router, MAC addresses not listed will be denied access to the router. MAC Address: Enter the MAC addresses (in XX:XX:XX:XX:XX:XX format) of the wireless station that are allowed or denied access to the specified in these address fields. Click Save to apply the settings. BEC MX-1000 User Manual...

  • Page 71: Advanced Setup

    SPI: If you enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side.  Enabled: Activate your SPI function.  Disabled: Deactivate the SPI function. Click Save to apply the settings BEC MX-1000 User Manual...

  • Page 72: Routing

    Gateway IP Address or Interface: This is the gateway IP address or existing interface to which packets are to be forwarded. Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15. Click Save to add this route BEC MX-1000 User Manual...

  • Page 73: Nat

    Service Index: Associated to EWAN interface marking each EWAN service (0-7), to select which EWAN service the DMZ and Virtual server are applied to. Click DMZ or Virtual Server to move on to set the DMZ or Virtual Server parameters, which are represented in the following scenario. BEC MX-1000 User Manual...
  • Page 74 DMZ Host IP Address: Give a static IP address to the DMZ Host when Enabled radio button is checked. Be aware that this IP will be exposed to the WAN/Internet. Click Save to apply the settings BEC MX-1000 User Manual...
  • Page 75 NOTE: This feature disables automatically if WAN connection is in BRIDGE mode or NAT is being turned OFF. Virtual Server is also known as Port Forwarding that allows MX-1000 to direct all incoming traffic to the servers on the LAN.
  • Page 76 PC, with an address that does not fall into the range of IP addresses that are to be issued by the DHCP server. You can configure the virtual server IP address manually, but it must still be in the same subnet as the router. BEC MX-1000 User Manual...
  • Page 77 Enter the static IP assigned to the local PC that is hosting the FTP server. Ex: 192.168.1.102 Enter ”21” to Local Start and End Port number. The MX-1000 will forward port 21 request from WAN to the specific LAN PC (Example: 192.168.1.102) in the network.

  • Page 78: Static Dns

    192.0.32.10 (IPv4). IP Address: The IP address you are going to give a specific domain name. Domain Name: The friendly domain name for the IP address. Click Save to apply your settings. BEC MX-1000 User Manual...

  • Page 79: Time Schedule

    End Time: The ending point of the interval for the timeslot, anytime in 00:00 – 24:00. Click Save to apply your settings. Example, you can add a timeslot named “TimeSlot1” which features a period from 9:00 of Monday to 18:00 of Tuesday. Another TimeSlot2 spanning from 09:00 to 18:00 of Wednesday BEC MX-1000 User Manual...

  • Page 80: Mail Alert

    WAN IP change has been detected. Recipient’s Email (3G/4G-LTE Usage Allowance): E Enter a valid e-mail address to receive an alert message when the 3G over Usage Allowance occurs. Click Apply button to save your settings BEC MX-1000 User Manual...

  • Page 81: Remote System Log

    Remote System Log: Select Activated to enable this feature Server IP Address: Assign the remote log server IP address. Server UDP Port: Assign the remote log server port, 514 is commonly used. Click Save to apply the settings BEC MX-1000 User Manual...

  • Page 82: Access Management

    Device Management Device management offers users a way to change the embedded web server accessing port, default 80. User can change the http port to 8080 or something else here. Click Save to apply the settings. BEC MX-1000 User Manual...

  • Page 83: Snmp

    Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. The MX-1000 serves as a SNMP agent that allows a manager station to manage and monitor the router through the network.

  • Page 84: Universal Plug & Play

    Auto-configured: Select this check box to allow UPnP-enabled applications to automatically configure the MX-1000 so that they can communicate through the MX-1000, for example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device;...

  • Page 85: Dynamic Dns (Ddns)

    Username / Password: Enter the user name and password of the account you created with this service provider. Wildcard support: Select this check box to enable DYNDNS Wildcard. Period: Set the time period on how often the MX-1000 will update the DDNS server with your current external IP address. Click Save to apply the settings.
  • Page 86 Example: How to register a DDNS account If you do not have an account with Dynamic DNS, please go to www.dyndns.org to register an account first. User test1 register a Dynamic Domain Names in DDNS provider http://www.dyndns.org/ DDNS: www.hometest.com using username/password test/test BEC MX-1000 User Manual...

  • Page 87: Access Control

    Rule Index: The numeric rule indicator. Active: Yes to activate the rule. Secure IP Address: The default 0.0.0.0 allows any client to use this service to manage the MX-1000. Type an IP address range to restrict access to the client(s) without a matching IP address.
  • Page 88 Device Configuration Access Management – Access Control Default Rule 2: (Index 2), an ACL rule to open Ping to WAN side. BEC MX-1000 User Manual...

  • Page 89: Packet Filter

    Source IP Address: The source IP address of packets to be monitored. 0.0.0.0 means “Don’t care”. Source Subnet Mask: Enter the subnet mask of the source network. Source Port Number: The source port number of packets to be monitored. 0 means “Don’t care”. BEC MX-1000 User Manual...
  • Page 90 Destination Port: This is the Port or Port Ranges that defines the application. DSCP: show the set DSCP. Protocol: It is the packet protocol type used by the application. Select either TCP or UDP or ICMP or ICMPv6 Click Save to apply the settings. BEC MX-1000 User Manual...
  • Page 91 ICQ: Select this option to Allow/Deny ICQ. MSN: Select this option to Allow/Deny MSN. YMSG: Select this option to Allow/Deny Yahoo messenger. Real Audio/Video (RTSP): Select this option to Allow/Deny Real Audio/Video (RTSP). Click Save to apply the settings. BEC MX-1000 User Manual...
  • Page 92 In a word, the command serves as a switch to the access of some specific URL with the filter on. URL (Host): Specified URL which is prohibited from accessing. Click Save to apply the settings. BEC MX-1000 User Manual...

  • Page 93: Cwmp (Tr-069)

    Path: Local path in HTTP URL for an ACS to make a Connection Request notification to the CPE. Username: Username used to authenticate an ACS making a Connection Request to the CPE. Password: Password used to authenticate an ACS making a Connection Request to the CPE. BEC MX-1000 User Manual...
  • Page 94 ACS. When the inform interval time arrives, the CPE will send inform message to automatically connect to ACS. NATT Config - This is a proprietary feature provided by BEC. May leave them in blank, no configuration is required. NATT Server: By BEC administrator only.

  • Page 95: Parental Control

    Host Name: It is the domain name of your OpenDNS. If you don’t have one, please leave it blink. Username / Password: Put down your OpenDNS account username and password Click Save to apply the settings. BEC MX-1000 User Manual...

  • Page 96: Samba & Ftp Server

    SAMBA /FTP access and operation permission of objects in SAMBA and FTP server.  New user: users can create new user(s) to grant it (them) access and permission to the SAMBA & FTP server. Please see User Management. Click Save to apply the settings. BEC MX-1000 User Manual...
  • Page 97 , but if you enter \\SambaSvr, please be sure your working PC is in the same workgroup as set in the samba server set above.) 2. Enter the Username and password. 3. Users can browse and access USB storage. BEC MX-1000 User Manual...
  • Page 98 2) Create ftp sites (LAN IP / WAN IP, 192.168.1.254, and set the account, port). 3) Connect to the ftp site. 2. Web FTP access 1) Enter ftp://192.168.1.254 at the address bar of the web page. 2) Enter the account's username and password. BEC MX-1000 User Manual...

  • Page 99: Maintenance

    The User account is with limited access (specified by advanced users with admin account) to the GUI. Total of 8 accounts can be created to grant access to manage the MX-1000 via the web page. ...
  • Page 100 Web GUI Permission Login using the Administrator account, you will have the full accessibility to manage & control your gateway device and can also create user accounts for others to control some of the open configuration settings. BEC MX-1000 User Manual...
  • Page 101 Permission: Set the operation permission for the user, Read/Write or Read. SAMA Authority Setup SAMBA Access: Enable to grant the user access to the SAMBA server. Permission: Set the operation permission for the user, Read/Write or Read. BEC MX-1000 User Manual...
  • Page 102 Interface Setup / Advanced Setup / Access Management Setup / Maintenances: Enable to grant this user access to these features. When someone accesses to the MX-1000 using this “user” account, he/she can only manage and configure the features that is pre-selected in Web GUI Permission for this account..

  • Page 103: Time Zone

    With default, MX-1000 does not contain the correct local time and date. There are several options to setup, maintain, and configure current local time/date on the MX-1000. If you plan to use Time Schedule feature, it is extremely important you set up the Time Zone correctly.

  • Page 104: Firmware & Configuration

    Firmware is the software that controls the hardware and provides all functionalities which are available in the GUI. This software may be improved and/or modified; your MX-1000 provides an easy way to update the code to take advantage of the changes. .

  • Page 105: System Restart

    You may also restore your router to factory settings by holding the small Reset pinhole button on the back of your router in about more than 6s seconds whilst the router is turned on. BEC MX-1000 User Manual...

  • Page 106: Auto Reboot

    Maintenance – Auto Reboot Auto Reboot Schedule an automatic reboot for your MX-1000 to ensure proper operation and best performance. This reboot will only reboot with current configuration settings and not overwrite any existing settings. Click Save to apply the settings Example: Schedule MX-1000 to reboot at 10:00pm (22:00) every weekday (Monday thru Friday) and reboot at 9:00am on Saturday and Sunday.

  • Page 107: Diagnostics Tool

    The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides. 3G/4G-LTE Click START to begin to diagnose the connection. EWAN Click START to begin to diagnose the connection. BEC MX-1000 User Manual...

  • Page 108: Chapter 5: Troubleshooting

    Troubleshooting Chapter 5: Troubleshooting If your MX-1000 is not functioning properly, you can refer to this chapter for simple troubleshooting before contacting your service provider support. This can save you time and effort but if symptoms persist, consult your service provider.

  • Page 109: Recovery Procedures

    5. Internet LED lit Red, and router starts to write firmware into flash. Please DO NOT power off the router at this step. 6. Internet LED lit Green when successfully upgrade firmware. 7. Power cycle off/on the MX-1000 BEC MX-1000 User Manual...

  • Page 110: Appendix: Product Support & Contact

    If you come across any problems please contact the dealer from where you have purchased the product. Contact BEC @ http://www.bectechnologies.net MAC OS is a registered Trademark of Apple Computer, Inc. Windows 7/98, Windows NT, Windows 2000, Windows ME, Windows XP, and Windows Vista are registered Trademarks of Microsoft Corporation. BEC MX-1000 User Manual...
  • Page 111 FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. V10118 BEC MX-1000 User Manual...
