Quick Start Guide

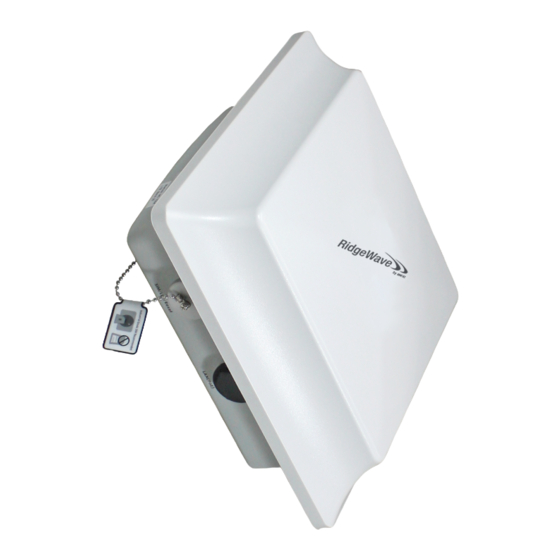

BEC MX-200A ODU
4G/LTE Outdoor Router

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MX-200A ODU and is the answer not in the manual?

Questions and answers

Related Manuals for BEC MX-200A ODU

Summary of Contents for BEC MX-200A ODU

  • Page 1 Quick Start Guide BEC MX-200A ODU 4G/LTE Outdoor Router...
  • Page 3 BEC MX-200A ODU Outdoor Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER MANUAL.
  • Page 4 Quick Start Guide Hardware Overiew CONNECTORS DESCRIPTION Insert the SIM card into the SIM slot. Gigabit LAN Connect it with an Ethernet-enable device. Connect it with the supplied PoE injector, 802.3at compliant, using an Gigabit LAN / PoE IN Ethernet cable. CONNECTORS DESCRIPTION Screw the GPS antenna onto the GPS antenna connector.

  • Page 5: Mounting Instructions

    BEC MX-200A ODU Outdoor Router Mounting Instructions Mounting Kit includes: 1. Articulation Pole x 1 2. T-formed Bracket x 1 M8 Nut x 1 3. Stainless Hose Clamp x 2 Articulation Pole x 1 4. M8x40 Screw Bolt x 1 M8 Washer x 1 5.
  • Page 6 Quick Start Guide Attach the Articulation Pole to the Enclosure Attach the articulation pole to the back of the MX-200A ODU enclosure using the supplied M6 screws, M6 spring washers and M6x16 screws which are included in the mounting kit.
  • Page 7 BEC MX-200A ODU Outdoor Router Wall or Pole Mount Installation 2.1 Mounting on Wall Fix the T-formed Bracket to the wall by using wood screws and Gyprock plugs. Wood / Gyprock Plug T-formed Bracket Wood Screw 2.2 Mounting on a Pole 2.2.1...
  • Page 8 Install the Articulation Pole with the T-formed Bracket Attach the articulation pole (BEC MX-200A ODU enclosure) to the T-formed bracket using the supplied M8 nut, M8 spring washer, M8 washer and M8x40 screw bolts. M8 Washer...

  • Page 9: Installation Instructions

    BEC MX-200A ODU Outdoor Router Installation Instructions 1. Power on your BEC MX-200A ODU Step 1: Assemble M25 cable gland Step 2: Unscrew the GbE LAN/PoE IN port and insert the supplied outdoor Ethernet cable (RJ-45) through material A-D, and then connect the RJ-45 Ethernet cable into the GbE LAN/PoE IN port.
  • Page 10 Data+Power port. Connect another Ethernet cable (RJ-45) directly to the Data port and the other end of cable to a switch or broadband router. IMPORTANT: It is recommended to put the Gigabit PoE Injector on an UPS or Surge Protector. Use the supplied grounding wire to ground your BEC MX-200A ODU is REQUIRED!
  • Page 11 BEC MX-200A ODU Outdoor Router 2. Set up your 4G/LTE Internet Connection Step 1: Unscrew the cap of SIM card slot. Step 2: Slide the SIM card with the mental contacts (gold plate) facing up to the SIM slot then push it all the way in until you hear the clicking sound.
  • Page 12 Step 3: Screw the cap back tightly. Please power off the device before inserting or removing the SIM card. 3. Grounding the BEC MX-200A ODU to Complete the Installation Attach the grounding wire to the BEC MX-200A ODU and tighten the screw...
  • Page 13 BEC MX-200A ODU Outdoor Router 4. Position Adjustment Adjust the MX-200A ODU until it reaches the desire elevation and depression angle, then tight the M8 nut (see Install the Articulation Pole with the T-formed Bracket for more information) Max. upward angle: 47∘ Max. downward angle: 47∘...
  • Page 14 Quick Start Guide Access and Configure Your BEC Device The default IP of modem is 192.168.1.254 with subnet 255.255.255.0. Make sure the attached PC to this router is in the same subnet and has an IP address in the range between 192.168.1.1 ~ 192.168.1.253.
  • Page 15 BEC MX-200A ODU Outdoor Router Step 4: WAN / Internet Connection Setup Select the appropriate WAN protocol then fill out the information provided by your ISP in all relevant parameters. (4G/LTE) If select 4G/LTE to connect to the internet WAN Interface: select...
  • Page 16 Quick Start Guide Configure Your MX-200A ODU – Verizon & Sprint User Only Step 1: Login to the BEC router web menu, BEC default IP is http://192.168.1.254 URL Address bar: type http://192.168.1.254 When the login prompt appear. Input the default username and password, admin and admin.

  • Page 17: Troubleshooting

    Troubleshooting 1. Cannot access to the Internet Check the WAN status by logging to the GUI of the MX-200A ODU. Restart the device if needed; otherwise, please contact your local technical support. 2. You have forgotten your Router login and/or password.

  • Page 18: Fcc Statement

    Quick Start Guide FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
