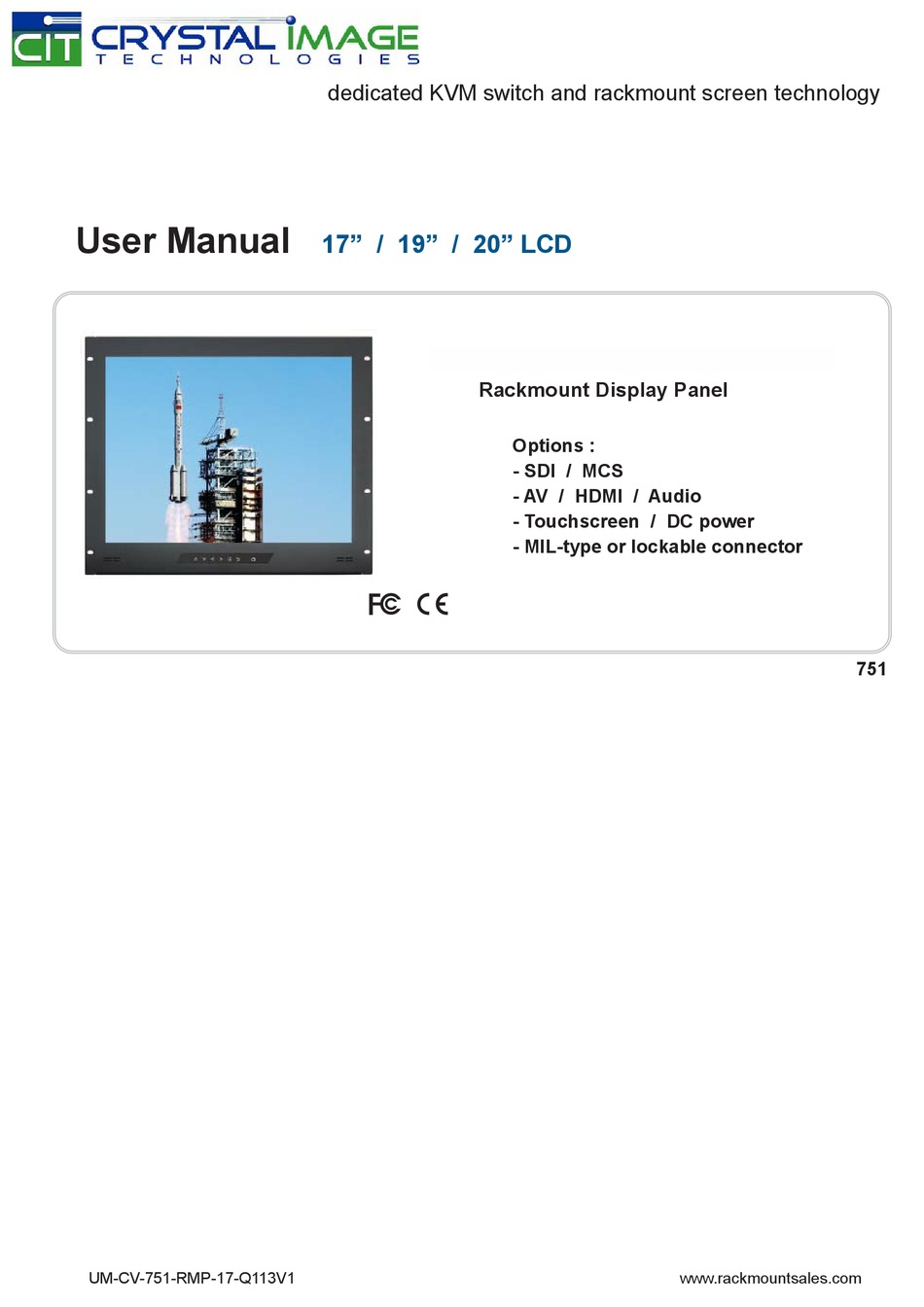

User Manual
UM-CV-751-RMP-17-Q113V1
dedicated KVM switch and rackmount screen technology
17" / 19" / 20" LCD
RMP-161-17 / 19 / 20
RP-717 / RP-819 / RP-920
Rackmount Display Panel
Options :
- SDI / MCS
- AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.rackmountsales.com
751
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Crystal Image Technologies RMP-161-17
Summary of Contents for Crystal Image Technologies RMP-161-17
-
Page 1: User Manual
KVM switch and rackmount screen technology User Manual 17” / 19” / 20” LCD RMP-161-17 / 19 / 20 RP-717 / RP-819 / RP-920 Rackmount Display Panel Options : - SDI / MCS - AV / HDMI / Audio... -
Page 2: Legal Information
Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Table Of Contents
Contents < Part. 1 > RMP-161-17 / 19 / 20 RP-717 / RP-819 / RP-920 Package Content Structure Diagram & Dimension P.1 - 4 Installation Specifi cations / OSD / Remote Controller < Part. 2 > Product Specifi cations P.6 - 9 On-screen Display Operation ( OSD ) P.10 - 11... -
Page 4: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 5: Part. 1 > Rmp-161-17
< Part 1 > < 1.1 > Package Content RP-717 / 819 / 920 RMP-161-17 / 19 / 20 RP-717 or RP-819 or RP-920 X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 < 1.2 > Structure Diagram... - Page 6 RMP-161-17 < 1.2 > Dimension - RP-717 Front View Side View RP-717 UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 480 x 54.2 x 310 mm...
- Page 7 < 1.2 > Dimension - RP-819 RMP-161-19 RP-717 / 819 / 920 Front View Side View RP-819 UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 480 x 53.3 x 354.8 mm...
- Page 8 < 1.2 > Dimension - RP-920 RMP-161-20 Front View Side View RP-920 UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 480 x 63.5 x 399 mm 583 x 124 x 529 mm 8.5 kg 11 kg...
-
Page 9: Installation
< 1.3 > Installation RP-717 / 819 / 920 RMP-161-17 / 19 RP-717 / RP-819 Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. -
Page 10: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations - RMP-161-17 RMP-161-19 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 11 -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random RMP-161-17 RMP-161-19 Physical Specifi cation Product ( W x D x H ) 480 x 54.2 x 310 mm 480 x 53.3 x 354.8 mm 18.9 x 2.1 x 12.2 inch...
- Page 12 < Part 2 > < 2.1 > Product Specifi cations - RMP-161-20 Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M...
- Page 13 RMP-161-17 / 19 / 20 Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 480 x 63.5 x 399 mm...
-
Page 14: On-Screen Display Operation ( Osd )
(To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital & video connection (DVI-D and video options only) RMP-161-17 / RMP-161-20 Membrane Switch Function Turn the monitor on or off Display the OSD menu... - Page 15 < 2.2 > On-screen Display Operation ( OSD ) RMP-161-17 / 19 / 20 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock...
-
Page 16: Options : 3G / Hd / Sd-Sdi Input
< Part 3 > < 3.1 > Options : 3G / HD / SD-SDI input Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty. -
Page 17: Part. 3 > Options
< 3.2 > Options : MCS ( Multi-display Control ) More control is always good. Especially when it is necessary and easy. Austin Hughes provides MCS solution to control the OSD of various CyberView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi... - Page 18 < 3.3 > AV2.2D Upgrade Options : - DVI-D ( DVI-D TMDS single link ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) Audio DVI-D Power...
-
Page 19: Options : Touchscreen & Driver
< 3.5 > Options : Touchscreen & driver 17” / 19" USB Touchscreen Specifi cation 17’ 19” 17” 19” Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤ 50g / Stylus=R0.8 ≤... - Page 20 < 3.5 > Options : Touchscreen & driver TRB & TCB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc : Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4.
- Page 21 < 3.6 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
-
Page 22: Mil-Type Or Lockable Connector
< 3.7 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl... - Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. UM-CV-751-RMP-17-Q113V1 www.rackmountsales.com...
