Summary of Contents for Crystal Image Technologies LCD-AP-K32

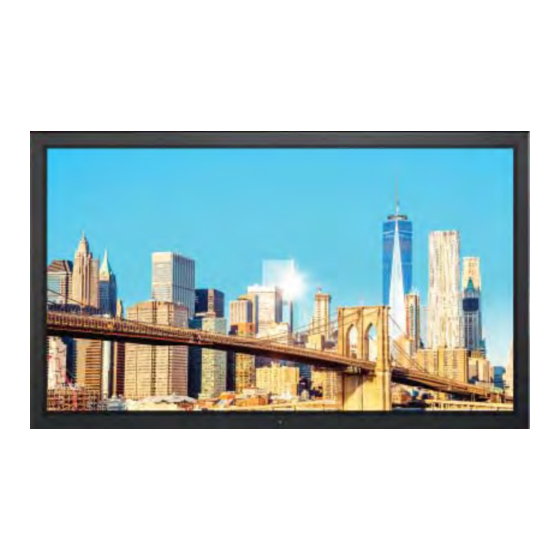

- Page 1 LCD display solutions User Manual 32” 4K 3840 x 2160 LCD LCD-AP-K32 8mm Aluminum front bezel LCD-NAP-K32 Front NEMA4 / IP65 LCD-DP-K32 Aluminum Front Panel LCD-OP-K32 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-K32-Q318V1 www.rackmountsales.com...
- Page 2 Legal Information First English printing, September 2018 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents LCD-AP-K32 / NAP-K32 < Part. 1 > Package Content Structure Diagram & Dimension P.2 - 3 Mounting Hardware & Installation LCD-DP-K32 < Part. 2 > Package Content Structure Diagram & Dimension P.6 - 7 Mounting Hardware & Installation LCD-OP-K32 <... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
-
Page 5: Lcd-Ap-K32 / Nap-K32
< Part 1 > < 1.1 > Package Content - LCD-AP / NAP-K32 32” 4K LCD Display LCD-AP-K32 / NAP-K32 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O... - Page 6 Weight 780 x 88.2 x 474 mm 910 x 195 x 580 mm 20.9 kg 25.7 kg LCD-AP-K32 30.7 x 3.5 x 18.7 inch 35.8 x 7.7 x 22.8 inch 46 lbs 56.5 lbs 780 x 88.2 x 474 mm 910 x 195 x 580 mm 23.1 kg...
- Page 7 < 1.2 > Dimension - LCD-AP / NAP-K32 32” 4K LCD Display Front View Side View LCD-AP-K32 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K32-Q318V1 www.rackmountsales.com...
- Page 8 < 1.3 > VESA Installation - LCD-AP / NAP-K32 VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K32-Q318V1 www.rackmountsales.com...
- Page 9 < Part 2 > < 2.1 > Package Content - DP-K32 32” 4K LCD Display LCD-DP-K32 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Audio Power HDMI 1.4 HDMI 2.0 UM-UV-621-K32-Q318V1 www.rackmountsales.com...
- Page 10 < 2.2 > Structure Diagram - LCD-DP-K32 Front view Side view LCD-DP-K32 Bottom view Rear case Rear view LCD panel 8mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight...
-
Page 11: Part. 2 > Lcd-Dp-K32
< 2.2 > Dimension - LCD-DP-K32 32” 4K LCD Display Front View Side View LCD-DP-K32 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K32-Q318V1 www.rackmountsales.com... - Page 12 < 2.3 > VESA Installation - LCD-DP-K32 M8 screw VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K32-Q318V1 www.rackmountsales.com...
-
Page 13: Package Content
< Part 3 > < 3.1 > Package Content - LCD-OP-K32 32” 4K LCD Display LCD-OP-K32 32” 4K LCD Display X 1 6ft DP cable X 1 Power cord X 1 Remote controller X 1 Basic I/O Audio Power HDMI 1.4 HDMI 2.0 UM-UV-621-K32-Q318V1 www.rackmountsales.com... - Page 14 < 3.2 > Structure Diagram - OP-K32 Front view Side view LCD-OP-K32 Bottom view Rear case LCD panel Rear view Universal open frame mounting Audio speaker, pair LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross...
-
Page 15: Part. 3 > Lcd-Op-K32
< 3.2 > Dimension - LCD-OP-K32 32” 4K LCD Display Front View Side View LCD-OP-K32 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-K32-Q318V1 P.11 www.rackmountsales.com... - Page 16 < 3.3 > Installation - LCD-OP-K32 ( I ) Universal mount ( II ) VESA mount ( 300*300mm ) VESA mount ( 300*300mm ) ■ Hardware and M8*4 pcs for VESA mount are not provided UM-UV-621-K32-Q318V1 P.12 www.rackmountsales.com...
- Page 17 < Part 4 > < 4.1 > Product Specifi cations 32” 4K LCD Display Mechanical AP-K32 NAP-K32 DP-K32 OP-K32 Design Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA Mounting 300 x 300 mm 300 x 300 mm...
- Page 18 < 4.1 > Product Specifi cations Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 20~90%, non-condensing Altitude 16,000 ft Storage / Temperature -20 to 60°C degree Non-operating Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical AP-K32 / NAP-K32...
-
Page 19: On-Screen Display Operation ( Osd )
< 4.2 > On-screen Display Operation ( OSD ) 32” 4K LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 20 < 4.2 > On-screen Display Operation ( OSD ) Picture Brightness : Adjust the screen brightness Contrast : Adjust the difference between the image background ( black level ) and the foreground ( white level ) Black level : Adjust background black level of the screen : Screen in power saving mode Position Picture size : Adjust the image size...
- Page 21 < 4.2 > On-screen Display Operation ( OSD ) 32” 4K LCD Display Reset Reset : Return the adjustment back to factory setting PIP mode : Enter into PIP / PBP setting - PIP MODE / PBP 2WIN ( Main screen + 1 sub screen ) / PBP 3WIN ( Main screen + 2 sub screen ) / PBP 4WIN ( Main screen + 3 sub screen ) Select the signal input of each sub screen...
-
Page 22: Picture In Picture ( Pip ) / Picture By Picture ( Pbp )
< 4.3 > How to Use Picture In Picture ( PIP ) / Picture By Picture ( PBP ) < 4.3.1 > Picture in Picture ( PIP ) Mode Display the Sub screen in the Main screen. OSD Menu → MISC → PIP Mode → Large / Small / OFF Main screen Sub screen Position... - Page 23 32” 4K LCD Display < 4.3.2 > Picture By Picture ( PBP ) Mode Display the Sub screen next to the Main screen. OSD Menu → MISC → PIP Mode → PBP Main screen Sub screen Size LCD Monitor Main / Sub screen 1920 x 1200 955 x 716 1920 x 1080...
-
Page 24: Remote Controller ( Rc-2 )
< 4.4 > Remote Controller ( RC-2 ) INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER EXIT BACK SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 0 - 9 and above, enter the second digit within two seconds. -
Page 25: Part 5 > Options
< Part 5 > Options 32” 4K LCD Display < 5.1 > Option Table Options AP / NAP MCS multi-screen control Touchscreen MIL-type / lockable connector DC Power UM-UV-621-K32-Q318V1 P.21 www. es.com... - Page 26 < 5.2 > Options : 3G / HD / SD-SDI input Crystal Image’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CIT displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 27 < 5.4 > Options : MCS More control is always good. Especially when it is necessary and easy. Crystal Image provides MCS solution to control the OSD of ( Multi-display Control ) various Industrial LCD displays up to 64 units. The RS-232C is used for the communication between the PC and the fi...
- Page 28 < 5.3 > Options : MCS 32” 4K LCD Display More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Austin Hughes provides MCS solution to control the OSD of various UltraView LCD display up to 64 units. The RS-232C is used for the communication between the PC and the fi...
- Page 29 < 5.4 > Options : Touchscreen & driver K32" USB Touchscreen Specifi cation Model TPC-10 Multi-touch IR-10 Infrared Technology Projected Capacitive Infrared Touch Point Input Type Pen, Finger, Finger of gloved hand Finger or Capacitive Stylus activation Resolution 4096 x 4096 Touch Point Accuracy ±...
- Page 30 < 5.4 > Options : Touchscreen & driver 32” 4K LCD Display TPC-10 / TRB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.eeti.com.tw/drivers_Win.html Step 2.
- Page 31 < 5.6 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
- Page 32 UM-UV-621-K32-Q318V1 P.27 www.rackmountsales.com...
- Page 33 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. UM-UV-621-K32-Q318V1 P.28 www.rackmountsales.com...
