User Manual
6U 4K Rackmount LCD Panel, MIL-STD
RMP-161-17KA-MIL

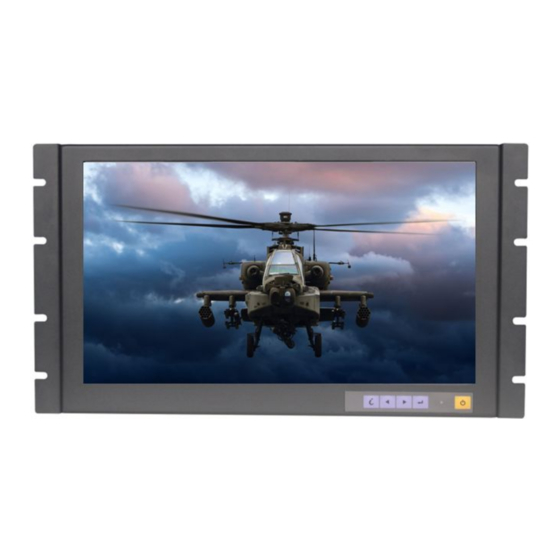

6U 17.3 inch Rack Mount Display Monitor
Features :
- DC 9~36V power input MIL Connector
- DP 1.2 + HDMI 2.0 + 3G/HD/SD-SDI
- AR hardness glass
- Aluminum Chassis
- NEMA4/IP65 Front Bezel Protection
Advertisement
Related Manuals for Crystal Image Technologies RMP-161-17KA-MIL
Summary of Contents for Crystal Image Technologies RMP-161-17KA-MIL
- Page 1 User Manual 6U 4K Rackmount LCD Panel, MIL-STD RMP-161-17KA-MIL 6U 17.3 inch Rack Mount Display Monitor Features : - DC 9~36V power input MIL Connector - DP 1.2 + HDMI 2.0 + 3G/HD/SD-SDI - AR hardness glass - Aluminum Chassis...
- Page 2 Contents RMP-161-17KA < Part. 1 > Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifi cations / OSD Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD )
- Page 3 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 4 < Part 1 > < 1.1 > Package Content Rack mount monitor unit X 1 - 1.8 M Display port cable X 1 - 1.8 M HDMI cable X 1 - Power cord X 1 < 1.2 > Structure Diagram...
- Page 5 < 1.2 > Dimension Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight RMP-161-17KA 7 kg 482 x 620 x 210 x 400 mm...
- Page 6 < Part 2 > < 2.1 > Product Specifi cations Manufacturer Panel Panel Size ( diagonal ) 17.3 inch widescreen Display pixel ( dots x lines ) 3840 x 2160 / 1920 x 1200 / 1920 x 1080 Brightness ( typ. ) Contrast Ratio ( typ.) 1000:1 Color...
- Page 7 Applicable Display Port Input PC Signal 3840 x 2160 x 60Hz Format 1920 x 1080 x 60Hz 1600 x 1200 x 60Hz 1360 x 768 x 60Hz 1280 x 1024 x 60 / 75Hz 1280 x 768 x 60Hz 1024 x 768 x 60 / 70 / 75Hz 800 x 600 x 60 / 72 / 75Hz 720 x 400 x 70Hz 640 x 480 x 60 / 72 / 75Hz...
- Page 8 < 2.2 > On-screen Display Operation ( OSD ) Menu/Enter Source Video input selection...
